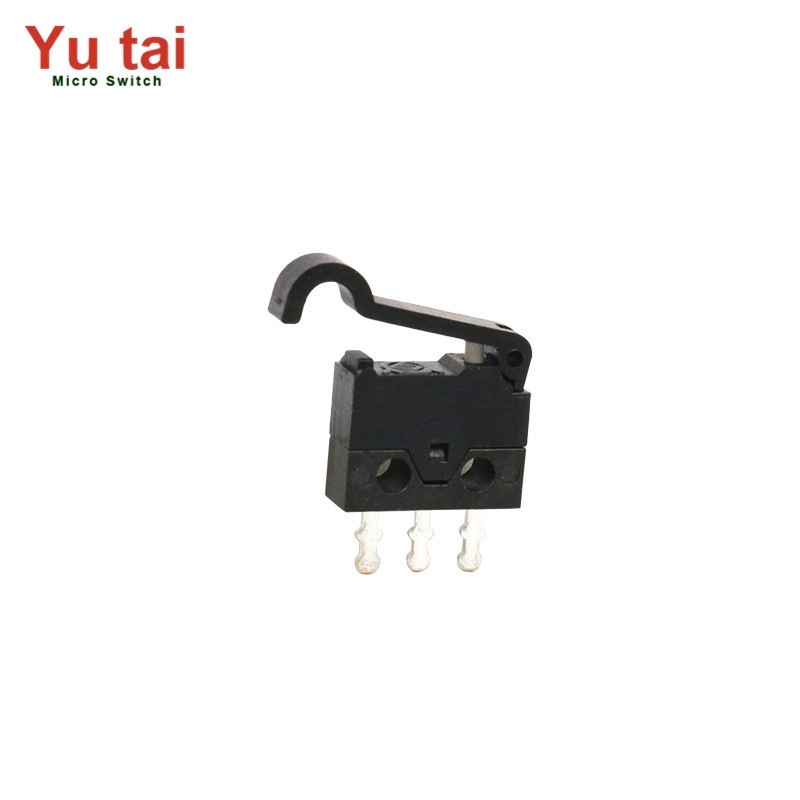

DS027-1-02PL-15-3
Yutai
This DS switch is ultra-small in size and suitable for products in small spaces. It has a compact structure, long life, high reliability, a full range of terminals, and is equipped with various operating handles. The current is 1A 15VDC. The operating environment temperature is -25℃∽+85℃. The mechanical life is 300,000 times and the electrical life is 10,000 times.
| Standard | Specification |
| UL | 1A 15VDC |
| Operating Temperature | -25℃∽+85℃ |
| Mechanical Life | 300000cycles |
| Electrical Life | 10000cycles |
