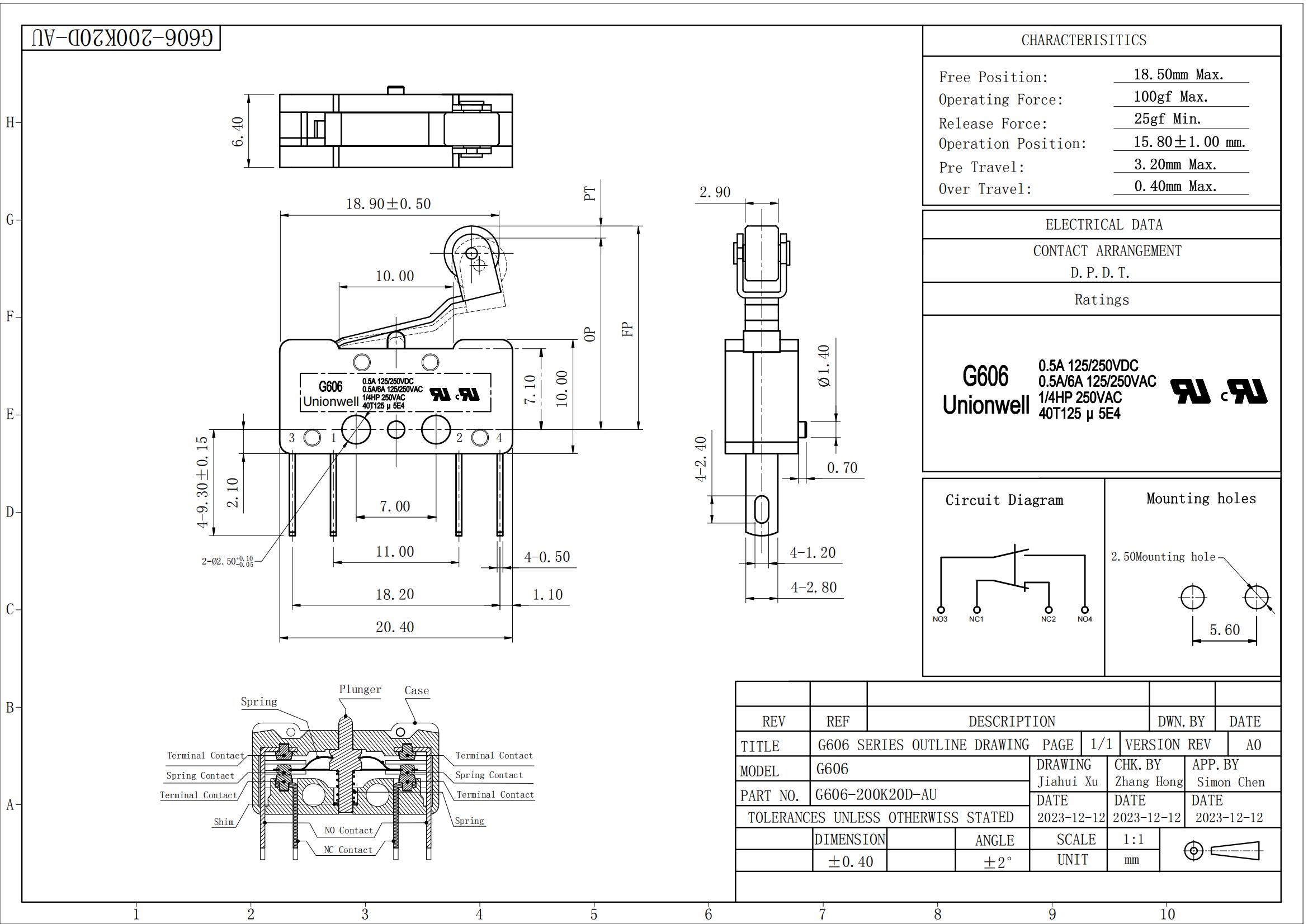

G606-200K20D-AU
Yutai

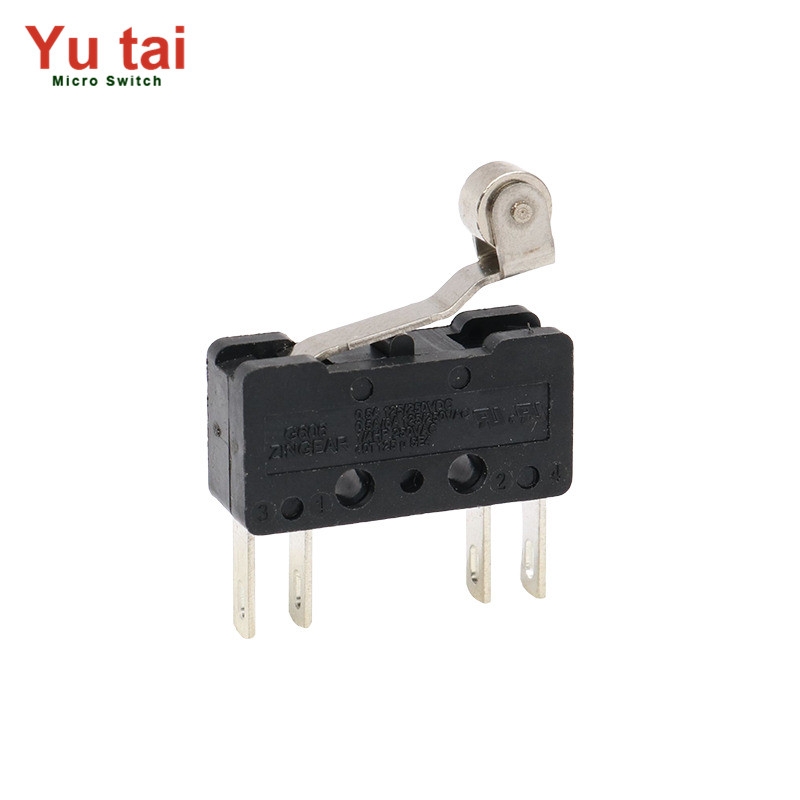

The Car Combination Switch with Wheel Lever represents the pinnacle of electromechanical engineering, meticulously designed to provide flawless signal transmission within complex circuitry. Upon physical interaction, the wheel lever mechanism offers a smooth, deliberate glide followed by a distinct, satisfying acoustic click, confirming immediate circuit engagement to the operator. The exterior housing boasts a matte, industrial-grade finish that actively resists environmental degradation and mechanical wear. Internally, the architecture utilizes a highly conductive double-break point system. This precise configuration effectively mitigates the risk of electrical arcing, ensuring a stable, uninterrupted flow of current even during rapid, successive actuations. The tactile feedback is specifically engineered to prevent accidental triggering, requiring a precise threshold of force that communicates absolute reliability. Whether integrated into heavy-duty automotive steering columns or submerged in industrial float systems, the switch maintains its structural integrity and operational crispness. The meticulous craftsmanship guarantees that every actuation feels exactly as tight and responsive as the first, completely eliminating the spongy, degraded feel often associated with prolonged mechanical use.
Parameter | Specification |
|---|---|
Product Name | Car Combination Switch with Wheel Lever |
Brand | Yutai |
Model | G606-200K20D-AU |
Mechanical Life | 500,000 cycles |
Electrical Life | 50,000 - 100,000 cycles |
Operating Temperature | -40℃ ∽ +125℃ |
Ratings | 0.5A 125/250VDC, 0.5A/6A 125/250VAC, 1/4HP |
Contact Resistance | 30-100mΩ Max |
Insulation Resistance | 100mΩ Max (500VDC) |
Dielectric Strength | AC 750V RMS (50-60Hz) |
Contact Form | Double break point-normally open |
Safety Certifications | ENEC, UL, CQC |
Applications | Industrial control, floats, sewage pumps |
Engineered to elevate operational efficiency, this switch integrates seamlessly into the most demanding mechanical environments. The meticulous design focuses entirely on eliminating downtime and reducing maintenance overhead for complex control systems.
Crisp Actuation Dynamics: The wheel lever provides a fluid yet highly controlled physical movement, culminating in a sharp, audible snap that guarantees positive circuit closure without mechanical hesitation.
Space-Optimized Footprint: The ultra-compact casing allows for effortless mounting within densely packed control panels, automotive steering columns, and restricted industrial housings.
Arc-Resistant Architecture: Utilizing a double-break point mechanism, the switch actively suppresses electrical arcing during high-voltage shifts, safeguarding sensitive downstream components.
Versatile Terminal Configurations: Available with multiple terminal and operating handle variations, ensuring a precise mechanical and electrical fit for diverse engineering requirements.
Unyielding Environmental Resilience: The robust outer shell and sealed internal contacts prevent the ingress of microscopic dust and moisture, maintaining optimal conductivity over years of use.
Achieving seamless integration into existing assemblies is paramount for large-scale procurement and assembly line efficiency. This switch is meticulously calibrated to mirror exact OEM dimensional standards, eliminating the need for costly retrofitting or structural modifications during installation.
Precision Dimensional Accuracy: Crafted with micro-millimeter tolerances to ensure a flawless drop-in replacement fit for a vast array of standardized equipment housings.
Broad Vehicular Application: Perfectly suited for passenger vehicles, heavy-duty trucks, and commercial forklifts, directly integrating with existing steering and control mechanisms.
Industrial Equipment Synchronization: Effortlessly aligns with the mechanical requirements of industrial floats, sewage pumps, and automated control systems without experiencing signal degradation.
Reduced Assembly Friction: Standardized mounting points and terminal dimensions drastically cut down assembly line time, minimizing labor costs and technical errors during mass production.
The physical longevity of electromechanical components dictates the overall reliability of the final product. By utilizing superior raw materials, this switch eradicates common failure points such as plastic fatigue, lever snapping, and internal contact corrosion.
High-Strength Polymer Housing: Constructed from premium, weather-resistant polycarbonate that withstands extreme mechanical stress without warping, cracking, or degrading over time.
Premium Brass Contacts: The internal conductive elements utilize high-grade brass, ensuring maximum electrical throughput while actively resisting oxidative buildup and rust.
Exceptional Cycle Endurance: Rigorously tested to endure a mechanical lifespan of 500,000 cycles, maintaining its initial tactile crispness and structural integrity throughout its life.
Sustained Electrical Longevity: Engineered to handle 50,000 to 100,000 electrical cycles under full load, preventing premature contact burnout in high-demand, continuous-use scenarios.
Anti-Friction Lever Mechanism: The wheel lever is coated with a specialized low-friction polymer, preventing the grinding and mechanical wear typical of prolonged repetitive actuation.
Stable electrical transmission is the absolute lifeblood of any control system. This switch guarantees instantaneous, latency-free signal delivery, even when subjected to severe thermal fluctuations and high-voltage loads in unforgiving environments.
Extreme Temperature Resilience: Operates flawlessly within a thermal range of -40℃ to +125℃, preventing plastic embrittlement in freezing conditions and internal melting during intense heat exposure.
Advanced Double-Break Mechanism: The dual-contact separation rapidly extinguishes electrical arcs, providing a safer and more reliable current transition compared to traditional single-break alternatives.
Ultra-Low Contact Resistance: Maintained strictly between 30-100mΩ Max, guaranteeing that low-voltage signals pass through without degradation, signal loss, or unwanted heat generation.
Superior Dielectric Strength: Rated at AC 750V RMS (50-60Hz), offering robust insulation that prevents dangerous electrical leakage and catastrophic short circuits.
High Insulation Resistance: The 100mΩ Max (500VDC) rating ensures that electrical currents remain strictly confined to their intended pathways, maximizing operator safety and system stability.
Procurement decisions hinge on verifiable safety and uncompromising quality standards. This switch is manufactured under a rigorous quality control matrix, carrying the world's most demanding electrical safety certifications to ensure absolute compliance across international borders.
UL Certification: Fully compliant with Underwriters Laboratories standards, guaranteeing safe and reliable operation within North American electrical frameworks.
ENEC Approval: Meets stringent European Norms Electrical Certification requirements, ensuring seamless regulatory acceptance across the entire European market.
CQC Verified: Certified by the China Quality Certification Centre, demonstrating exceptional reliability for domestic and Asian manufacturing sectors.
Standardized Quality Management: Produced in facilities adhering to stringent ISO quality management systems, ensuring zero deviation in performance from the first unit to the millionth.
Rigorous Batch Testing: Every production run undergoes intense acoustic, tactile, and electrical scrutiny to isolate and eliminate potential defects long before shipment.
No two engineering projects are entirely identical. Recognizing the diverse architectural constraints of modern machinery, this switch offers a highly adaptable structural foundation, ready to be tailored to highly specific operational parameters.
Ultra-Compact Architecture: The miniaturized body is specifically engineered to slide into confined spaces within steering columns and dense control panels without obstructing adjacent wiring.
Customizable Terminal Configurations: Available with a variety of terminal shapes and angles, accommodating unique PCB layouts, wire harness designs, and specialized connection points.
Variable Handle Specifications: The wheel lever can be modified in length, curvature, and actuation force to match the exact ergonomic and mechanical requirements of the end-user.
Flexible Contact Forms: Features a double break point-normally open configuration, with the capability to adapt to other specific circuit requirements upon engineering request.
Rapid Prototyping Support: Our engineering team collaborates directly with procurement and design departments to develop, test, and deliver customized iterations swiftly.
A premium component must be backed by an equally robust support infrastructure. We provide a comprehensive safety net that extends far beyond the point of delivery, ensuring continuous operational success and immediate resolution of any technical anomalies.
Extended Quality Guarantee: Surpassing the industry standard 12-month warranty, we offer a prolonged protection period to secure your long-term financial and operational investment.
Rapid Response Technical Support: Our dedicated engineering team is available for immediate consultation, ensuring that integration queries are resolved without delaying your production schedules.
Visual Diagnostic Assistance: We provide comprehensive troubleshooting through high-definition video and image exchanges, pinpointing and resolving mechanical or electrical issues with pinpoint accuracy.
Streamlined Replacement Protocol: In the rare event of a component anomaly, our expedited replacement process ensures new units are dispatched immediately to prevent assembly line halting.
Lifecycle Engineering Support: From initial prototype testing to end-of-life product updates, our experts remain on standby to optimize the switch's performance within your specific application.
Selecting the right manufacturing partner is as critical as selecting the component itself. We combine decades of precision engineering expertise with a relentless commitment to supply chain stability, ensuring you receive flawless components exactly when you need them.
Decades of Manufacturing Mastery: Deep-rooted expertise in electromechanical design ensures every switch delivers the precise tactile feedback and electrical reliability required by top-tier industries.
Uninterrupted Supply Chain: Our high-capacity production facilities are optimized to handle massive volume requirements without compromising on micro-level quality control.
Direct-from-Source Economics: By eliminating intermediaries, we provide highly competitive pricing structures that significantly enhance your project's overall profitability and budget efficiency.
Global Logistics Proficiency: We utilize advanced routing and packaging protocols to ensure that bulk shipments arrive at your facility in pristine condition, ready for immediate deployment.
Unwavering Client Confidentiality: We strictly protect your proprietary designs and custom configurations, acting as a silent, secure extension of your own manufacturing capabilities.
Navigating the technical intricacies of electromechanical components requires precise information. Below are detailed answers to the most common inquiries regarding the integration, performance, and longevity of our combination switch.
What makes the double-break mechanism superior to single-break designs?
The double-break point configuration separates the electrical connection at two distinct places simultaneously. This rapid separation effectively cuts off electrical arcing much faster than single-break designs, drastically reducing heat buildup and extending the overall lifespan of the internal brass contacts.
Can this switch maintain its tactile response in sub-zero environments?
Absolutely. The switch is engineered with specialized polymers and internal lubricants rated for temperatures as low as -40℃. This prevents the mechanical components from becoming brittle or sluggish, ensuring a crisp, audible actuation even in severe freezing conditions.
How does the wheel lever design minimize mechanical wear?
The wheel lever incorporates a rolling point of contact rather than a dragging or scraping motion. This dramatically reduces the friction coefficient against the actuating surface, which is why the switch easily achieves a mechanical lifespan of up to 500,000 cycles without loss of structural integrity.
Are the terminal configurations customizable for specific circuit boards?
Yes, we offer extensive customization for terminal types. Whether your assembly requires standard solder terminals, quick-connect tabs, or specialized PCB pins, our manufacturing facility can adjust the structural design to perfectly match your proprietary wiring harness.
What specific industrial applications benefit most from this switch?
Due to its ultra-low contact resistance (30-100mΩ Max) and high dielectric strength, it is highly sought after for precision industrial control panels, automated sewage pump monitors, and fluid level float systems where signal latency or electrical leakage could cause catastrophic system failures.
