In the architecture of modern electronics, the Detection Switch serves as the nervous system. It is not merely a passive component; it is the primary mechanism responsible for verifying presence, position, and security within a device. From confirming a printer paper tray is closed to ensuring a robotic arm has reached its safe limit, these switches bridge the gap between physical reality and digital logic. Without reliable state verification, even the most sophisticated processor remains blind to its physical surroundings.
Engineers often treat these components as afterthoughts, selecting them based solely on voltage and current ratings found in a datasheet. This approach frequently leads to field failures. The real engineering challenge lies in matching detection switch attributes to environmental realities, such as vibration, moisture, and lifecycle demands. A switch that performs perfectly on a test bench may fail intermittently when subjected to the thermal cycling of an automotive chassis.
This article provides an engineering-grade breakdown of detection switches. We will explore their operating principles, categorization logic, and commercial application risks. You will gain a decision framework for selecting the right Detection Switch manufacturer and model, ensuring your hardware design survives the rigorous demands of the real world.
Binary vs. Analog: Detection switches provide definitive Yes/No state verification, distinct from the continuous data stream of sensors.
Failure Modes: Mechanical wear and environmental ingress (dust/moisture) are the primary causes of failure; selecting the correct IP rating and actuation method is critical for TCO.
Signal Integrity: "Snap action" mechanisms are essential for preventing signal jitter and arcing in slow-moving actuation scenarios.
Integration: Successful deployment requires accounting for contact resistance, mounting tolerances, and "wetted current" requirements for low-load logic circuits.
At a fundamental level, a detection switch converts a physical stimulus—such as displacement, magnetic field presence, or light obstruction—into a binary electrical signal. This signal informs the microcontroller that a specific event has occurred. Understanding the physics behind this conversion is vital for selecting the correct component.
The transition from a mechanical action to an electrical signal involves disrupting or establishing a conductive path. In mechanical switches, this is a kinetic process where an actuator forces two conductive elements together. In solid-state versions, the detection involves altering a magnetic or optical field. The choice between these methods defines the reliability and power profile of the final application.
Engineers must weigh the trade-offs between physical contact and field sensing. Each approach dictates different integration strategies.
| Feature | Mechanical Detection Switch | Solid State (Non-contact) |
|---|---|---|
| Principle | Physical contact separation/connection. | Field disruption (Hall effect, Optical). |
| Key Benefit | Zero power consumption in standby. | Infinite cycle life (no wear parts). |
| Key Risk | Contact bounce and mechanical fatigue. | Power drain and interference susceptibility. |
| Cost | Generally lower. | Higher (requires active circuitry). |
Mechanical switches remain dominant in battery-powered devices because they consume no energy while waiting for an event. Solid-state sensors, conversely, require a constant bias current, which can drain batteries in standby modes.
One of the most critical detection switch attributes is the internal spring mechanism. High-quality detection switches utilize a "snap action" design. This involves a spring-loaded mechanism that ensures instantaneous contact transfer, regardless of how slowly the external actuator is pressed.
This mechanism matters because it prevents arcing and "undefined states." If a user slowly closes a car door, the actuator on the switch might move incrementally. Without snap action, the contacts would approach each other slowly, causing the electrical signal to sputter or arc before making solid contact. Snap action forces the contacts to close decisively once a specific force threshold is reached, ensuring a clean digital signal.
The choice between Normally Open (NO) and Normally Closed (NC) configurations is a question of fail-safe logic. In safety interlocks, engineers typically prefer NC contacts. If the wire breaks or the switch is disconnected, the circuit opens, stopping the machine. This is a fail-safe condition. If an NO switch were used for safety, a cut wire would look identical to a "safe" state, potentially allowing a machine to operate without its guard in place.
The market offers a vast array of switch configurations. Selecting the correct detection switch style depends heavily on how the target object moves and interacts with the sensor.
Mechanical variants are categorized by their actuation method. The geometry of the actuator determines how much force is applied to the internal mechanism and how much tolerance is available.
Push / Plunger Style: This is the standard for door closures and limit detection. It requires the target object to hit the switch perpendicularly. It is robust but offers little forgiveness if the target over-travels significantly.
Lever / Roller Style: These are designed to reduce friction and accommodate side-actuation angles. If the target object slides past the switch rather than hitting it head-on, a roller lever ensures smooth operation without damaging the actuator.
Rotary Detection Switch: A rotary detection switch is specialized for sensing angular position. These are commonly found in dial settings, valve positioning systems, or multi-function selector knobs where the device must verify a specific rotational angle.
Standard switches will fail rapidly if exposed to moisture or dust. The ingress of contaminants isolates the contacts, leading to high resistance and signal failure.
A waterproof detection switch differs significantly in construction from standard models. It utilizes internal O-ring seals and epoxy potting to protect the contact mechanism. Standard housings allow air and humidity to enter, but IP67-rated switches can withstand temporary submersion. These are mandatory for automotive under-hood applications, outdoor industrial controls, and appliances like washing machines where water spray is inevitable.
For applications in HVAC systems or industrial processing, standard plastics may deform. High-temperature variants utilize specific thermoplastics (like LCP or PPS) and high-performance alloy contacts to maintain structural integrity and electrical conductivity at elevated temperatures.
The mounting style dictates the mechanical robustness of the final assembly.
Surface Mount (SMT): Driven by miniaturization trends, SMT switches are ideal for high-density consumer electronics. They save PCB space but rely on the solder joint for mechanical strength.
Through-Hole: For applications requiring mechanical robustness and shear resistance, through-hole mounting is superior. The leads pass through the PCB, anchoring the switch more securely against physical abuse.
Detection switches are ubiquitous across industries. Analyzing these use cases highlights the importance of matching the switch capability to the application risk profile.
In the automotive sector, reliability is non-negotiable. A failure here can lead to safety hazards or expensive recalls.

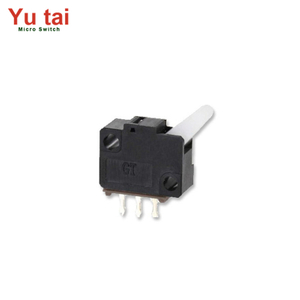

The Detection Switch in Car Lock assemblies is a classic example of a high-stakes application. These switches verify door latch engagement, trunk closure, and hood position. The ECU uses this data to permit locking, trigger alarms, or allow the vehicle to move. Because these switches reside inside the door panel, they are subject to constant vibration, temperature extremes, and moisture. They must utilize "snap action" logic to ensure that a slowly closing door registers instantly as closed.
Shift-by-wire systems also rely on detection switches to confirm the gear selector position. The system will not engage "Drive" unless the switch confirms the lever is physically in the correct coordinate.
In consumer devices, detection switches often handle security and usability functions.
Tamper Detection: Payment terminals and secure hard drives use micro-switches to detect chassis intrusion. If the case is opened, the switch triggers a circuit that wipes the encryption keys instantly.
Media Presence: Printers and cameras use these switches to detect SD cards or paper trays. Since these are high-cycle user interactions, the mechanical wear rating becomes the primary selection criterion.
Factory environments require switches that can survive aggressive handling.
End-of-Travel Limits: CNC machines and robotic arms use detection switches as hard-stop limits. They prevent the machine from driving itself into the frame, acting as a final line of defense if software limits fail.
Safety Interlocks: High-voltage machines and industrial presses use interlocks to ensure guards are in place. The machine control loop is physically broken if the detection switch indicates the guard is open.
Choosing the right component involves a four-step strategic analysis. Engineers must move beyond the basic dimensions and look at the electromechanical interaction.
You must analyze the direction of motion, the force available from the target object, and the required over-travel. A common design error is inadequate over-travel tolerance. If the target object pushes the switch plunger to its absolute bottom limit (bottoming out), the internal mechanism will crush over time. Conversely, insufficient pre-travel leads to false negatives, where the object is present but fails to trigger the switch.
This is the most overlooked aspect of switch selection. You must distinguish between logic-level loads and power-level loads.
Logic Level vs. Power Level:If you are switching a 3.3V signal at 1mA (typical for a microcontroller), you must use gold contacts. Gold resists oxidation. If you use a silver contact switch rated for 5 Amps for this low-energy signal, an oxide film will form on the silver. The low voltage cannot punch through this oxide layer, resulting in an open circuit despite the switch being mechanically closed. This phenomenon requires a minimum "wetted current" to clean the contacts. Silver contacts are excellent for higher power loads where the arc cleans the surface, but they are disastrous for low-logic switching.
You must match the switch IP rating to the operating environment. Consider dust and debris. Sliding contact switches (like slide switches) have a self-cleaning action that wipes away dust. However, they wear out faster. Sealed snap-action switches are better for dusty environments because the contacts are enclosed, preventing debris from entering the contact area in the first place.
Evaluate the Total Cost of Ownership (TCO). A generic detection switch might be rated for 10,000 cycles. A premium model might offer 1,000,000 cycles. If the switch is buried deep inside a medical device where replacement takes two hours of technician labor, the "cheaper" switch is significantly more expensive in the long run. Always calculate the cost of replacement access when selecting a lifecycle rating.
Even the perfect switch will fail if integrated poorly. Successful deployment requires attention to signal processing and mechanical assembly.
When a mechanical switch closes, the contacts do not just touch; they bounce microscopic distances for several milliseconds. A fast microcontroller might read this bouncing as multiple rapid button presses. Implementation requires hardware filtering (RC circuits) or software debouncing algorithms to ignore these transient spikes. Failing to debounce effectively leads to erratic system behavior, such as a single door close event registering as a "close-open-close" sequence.
Mechanical design must account for tolerance stack-up. The switch has an Operating Point (OP) tolerance, and the manufacturing assembly has a mounting tolerance. If these align poorly, the actuator might not reach the switch trigger point.
Best Practice: Use switches with locating posts (bosses). These plastic pegs fit into holes on the PCB, ensuring the switch is perfectly aligned with the actuator mechanism, reducing assembly variance.
For Surface Mount (SMT) switches, the reflow oven profile is critical. If the temperature ramps up too quickly or stays high too long, flux can wick inside the switch housing. Once flux coats the contacts, it creates an insulating layer that ruins contact integrity. Engineers must strictly adhere to the manufacturer's recommended reflow profile to prevent this invisible failure mode.
Detection switches act as the bridge between the physical world and digital logic. Their reliability dictates the reliability of the entire system. A failure in this small component renders complex algorithms useless, as the system loses its ability to perceive its state.
The final decision between mechanical, rotary, or waterproof variants must be driven by a balance of lifecycle requirements, environmental exposure, and integration costs. It is rarely a decision based on price alone; it is a calculation of risk.
For your next project, recommend auditing the "Minimum Current" specs of potential switches against your logic controller's input requirements before freezing the Bill of Materials (BOM). This simple step prevents the most common signal integrity issues in modern low-voltage electronics.
A: The primary difference lies in the output. A detection switch provides a binary, discrete output (On/Off, Present/Absent). It verifies a specific state. A sensor typically provides a continuous analog or digital data stream measuring a variable (e.g., precise distance, temperature, or pressure). Switches are for state verification; sensors are for measurement.
A: Use gold contacts for low-voltage, low-current applications (logic level), typically under 100mA and 30V. Gold resists oxidation, ensuring reliable switching for delicate signals. Silver contacts are better for higher currents (power level) where the electrical arc is strong enough to burn off surface oxidation.
A: The first digit refers to dust protection, and the second to liquid. An IP67 switch is dust-tight (6) and can withstand temporary immersion in water up to 1 meter (7). An IP54 switch is merely dust-protected and splash-resistant. For automotive or outdoor use, IP67 is usually the minimum requirement.
A: Hysteresis, or differential travel, is the distance difference between the point where the switch turns "On" and where it turns "Off." This gap prevents the switch from rapidly flickering (jittering) between states if the actuator vibrates slightly near the trigger point. It ensures a stable signal.
A: Generally, no. Safety-critical applications usually require switches with "positive opening" mechanisms and specific safety certifications (like IEC 60947-5-1). Standard detection switches may weld closed in a failure, failing to stop a machine. Safety switches force the contacts apart mechanically, providing a higher tier of reliability.
