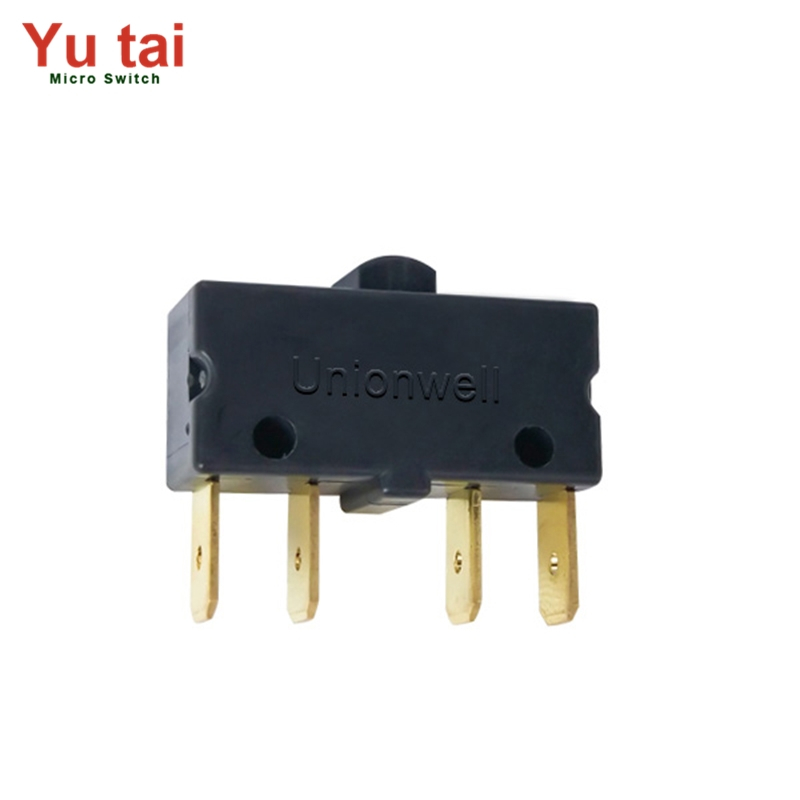

G21-B001
Yutai
The G21-B001 double break micro switch is a precision-engineered component designed for integration in outdoor speaker systems, developed by Yutai Electronics—a China-based manufacturer with expertise in electronic switch production since 2016. As a critical part of outdoor audio equipment, this micro switch is built to meet the unique operational demands of open-air environments, combining durability with consistent performance.
Unlike standard switches, the double break design of the G21-B001 enhances safety and reliability by interrupting the circuit at two points, reducing the risk of electrical arcing and ensuring stable disconnection. This feature makes it particularly suitable for outdoor speakers, which often operate in variable conditions and require components that can withstand frequent use without compromising functionality.

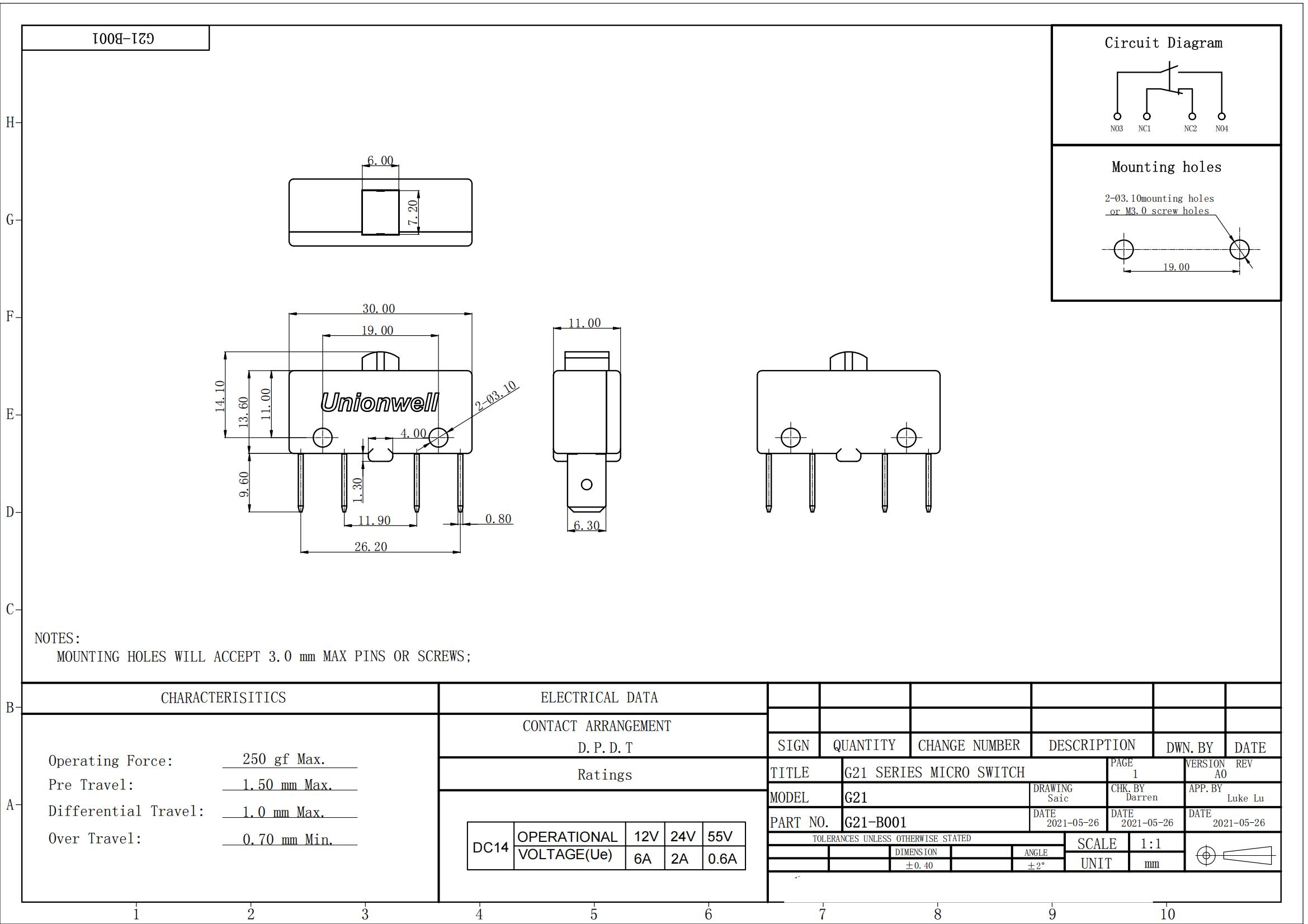

The G21-B001 double break micro switch adheres to international standards and is engineered with parameters optimized for outdoor applications. Below are its core specifications:
| Standard | Specification |
|---|---|
| ENEC/CQC | 2A 24VDC, 0.6A 55VDC, 6A 12VDC |
| Operating Temperature | -40℃ to +85℃ or -30℃ to +65℃ |
| Mechanical Life | 3,000,000 cycles |
| Electrical Life | 1,000,000 cycles |
Additionally, the switch’s mechanical life of 3,000,000 cycles and electrical life of 1,000,000 cycles make it suitable for outdoor speakers that undergo frequent on/off cycles, such as those used in public spaces, outdoor venues, or portable audio setups. The double break mechanism further minimizes wear during operation, reducing the need for frequent replacements and lowering maintenance costs.
Each unit undergoes testing to verify adherence to specified temperature ranges, cycle life, and electrical specifications. This commitment to quality aligns with Yutai's focus on producing components that integrate seamlessly into professional audio equipment, including outdoor speakers, where reliability is paramount.
This versatility allows manufacturers to source consistent, high-quality components across multiple product lines, streamlining supply chains and ensuring compatibility between different electronic systems.
