1: Compact structure with tiny contact gap. Fast action, high sensitivity and small travel characteristics.
2: High life span, high reliability.
3: Various temperature grades 25T85, 25T125, 25T150.
4: Widely used in door control products.

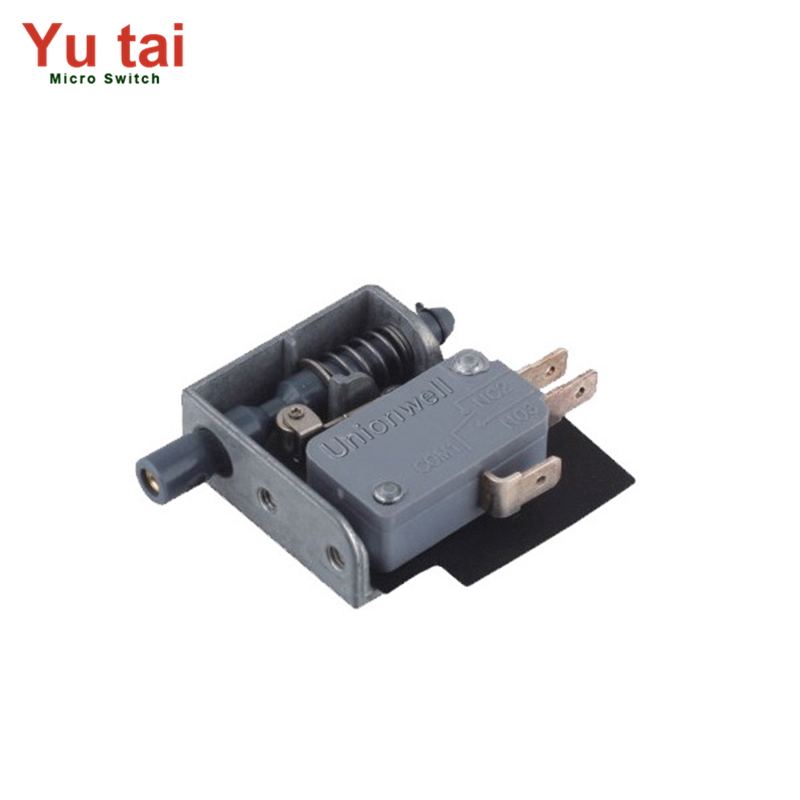

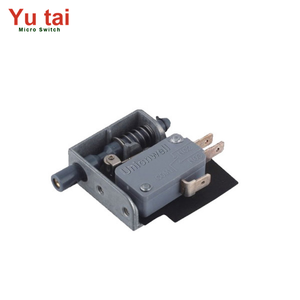

Our G5 series micro switches are mainly used in door control products. A G5 series micro switch is installed inside. It is small and compact, with a compact structure and a small contact gap. The characteristics of fast action, high sensitivity and small action stroke ensure the safe use of door control devices. Our products have multiple global safety certifications, so you can use them without worries. The shell is made of high temperature resistant material, the switch can be used in an environment of -25℃∽+150℃, the switch has a long service life and high reliability.
| Specification | Details |
| G5S05: ENEC/CQC | 0.1A 125/250VAC 48VDC 5(2.5)A 125/250VAC |
| G5S05: UL | 0.1A 125/250VAC 48VDC 5A 125/250VAC 48VDC 1/10HP |
| G5T08: ENEC/CQC | 8(10)A 250VAC |
| G5T08: UL | 10.1A 250VAC 1/2HP |
| G5T10: ENEC/CQC | 10(3)A 125/250VAC 10(4) 250VAC |
| G5T10: UL | 10A 125/250VAC 1/2HP 11A 125/250VAC 1/3HP |
| G5T16: ENEV/CQC | 16(4)A 250VAC |
| G5T16: UL | 16A 125/250VAC 1/2HP |
| GTT22: ENEV/CQC | 22(8)A 250VAC |
| GTT22: UL | 22A 125/250VAC 1HP |
| G5T26: ENEV/CQC | 26(10)A 250VAC |
| Operating Temperature | -25℃∽+85℃ -25℃∽+125℃ -25℃∽+150℃ |
| Mechanical Life | 100000 Electrical Life: 50000 |
