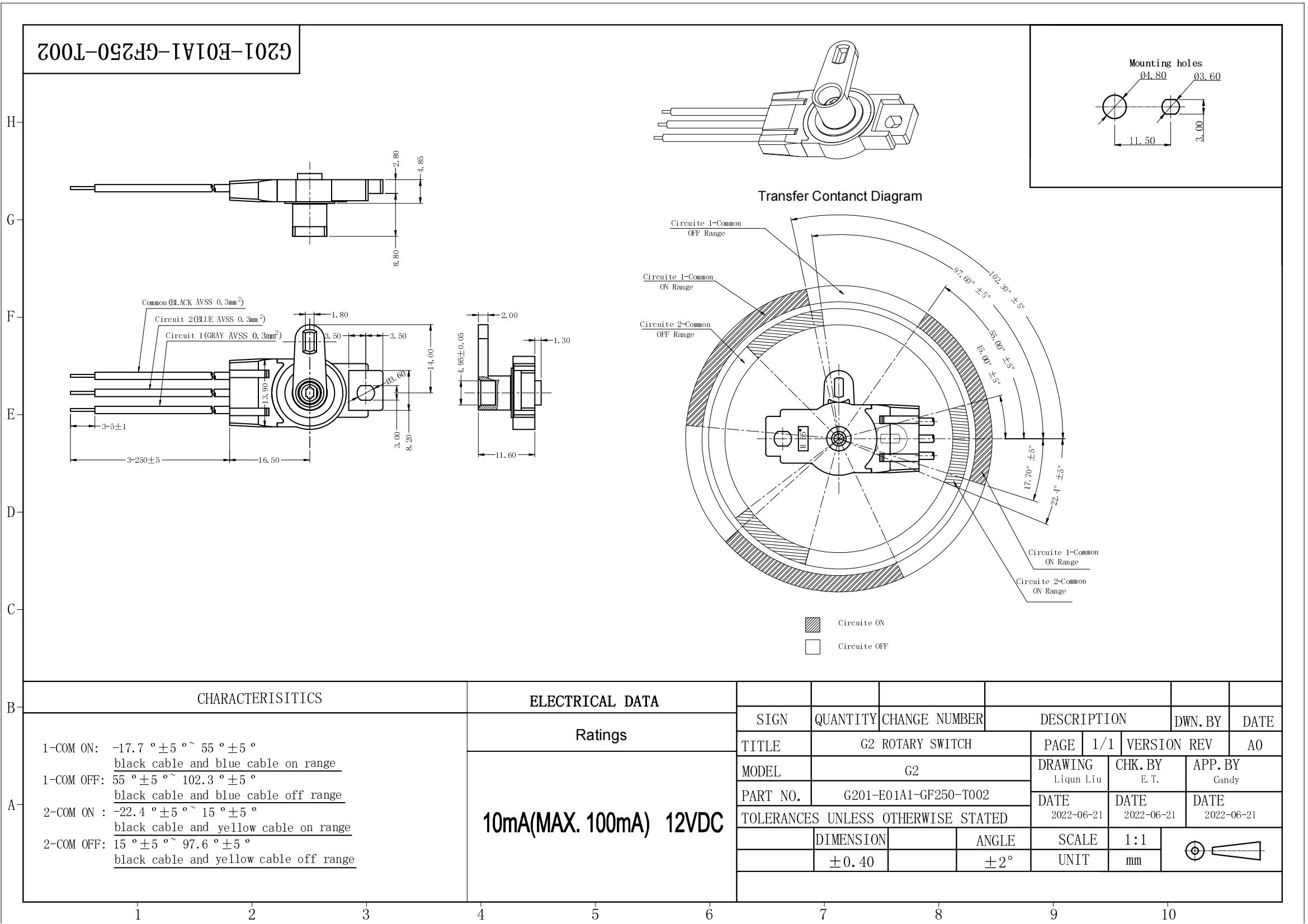

G201-E01A1-GF250-T002
Yutai

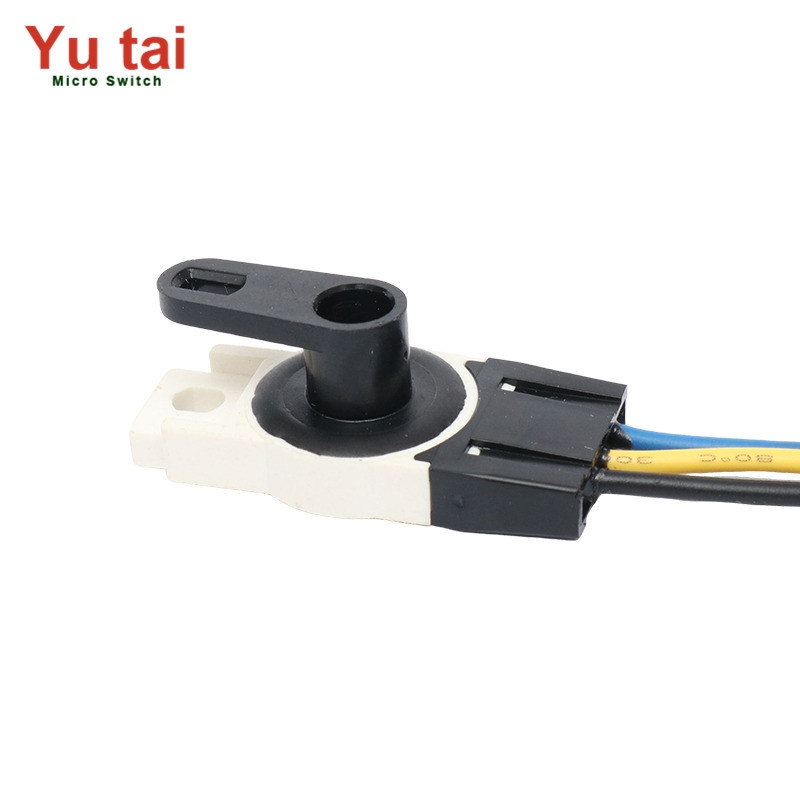

G2 series rotary switches have the following features:
Stable electrical performance: can work stably within the rated voltage and current range, low contact resistance ensures stable circuit connection, reduces heat and energy loss, and high insulation resistance and dielectric strength ensure safe use. A variety of rated voltage and current specifications may be provided to meet the needs of different circuit loads.
Good operating experience: the circuit is controlled by rotating operation, with a clear rotating feel, simple operation, easy to use, and suitable for frequent switching occasions. Accurate positioning can achieve precise gear control and meet different functional requirements. Reliable quality: perfect quality management system, this series of products has undergone strict quality testing.
Standard | Specification |
ENEC/CQC | 0.1A 12VDC |
Operating Temperature | -30℃∽+85℃ |
Mechanical Life | 100000cycles |
Electrical Life | 100000cycles |
