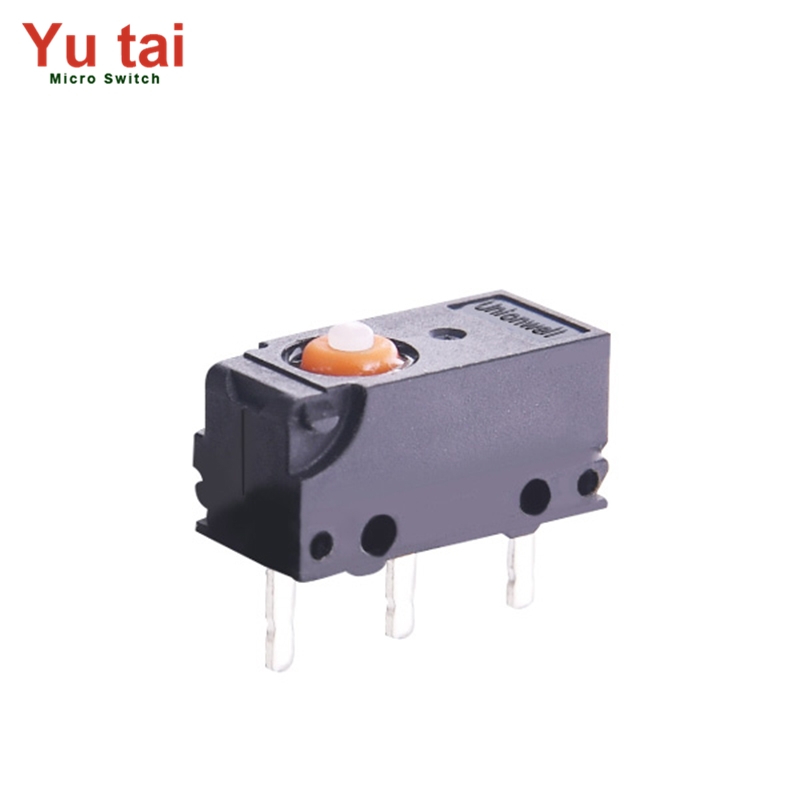

Our G10B series waterproof micro switch adopts waterproof and dustproof sealing design. Ensure IP67 rating, it is small and compact, very suitable for industries with limited product space. In addition, our products have multiple global safety certifications, so you can use them without worries. Our switches have long service life and high reliability, and are equipped with various operating handles to meet the different needs of customers. In addition, our products are designed with various types of terminal blocks for easy installation and use. And our switches can be installed with built-in resistors to meet the different signal requirements of different customers. In short, our micro switch is a reliable and versatile product that can meet the requirements of various industries. We are proud of the quality of our products and provide high-quality products for the world's precision modules.
| Standard | Specification |
| ENEC/CQC | 0.1A 125/250VAC 48VDC 5(2.5)A 125/250VAC |
| UL | 0.1A 125/250VAC 48VDC 5A 125/250VAC 48VDC 1/10HP |
| ENEC/CQC | 8(10)A 250VAC |
| UL | 10.1A 250VAC 1/2HP |
| Operating Temperature | -40℃∽+85℃ |
| Mechanical Life | 1000000 cycles |
| Electrical Life | 10000 cycles |
