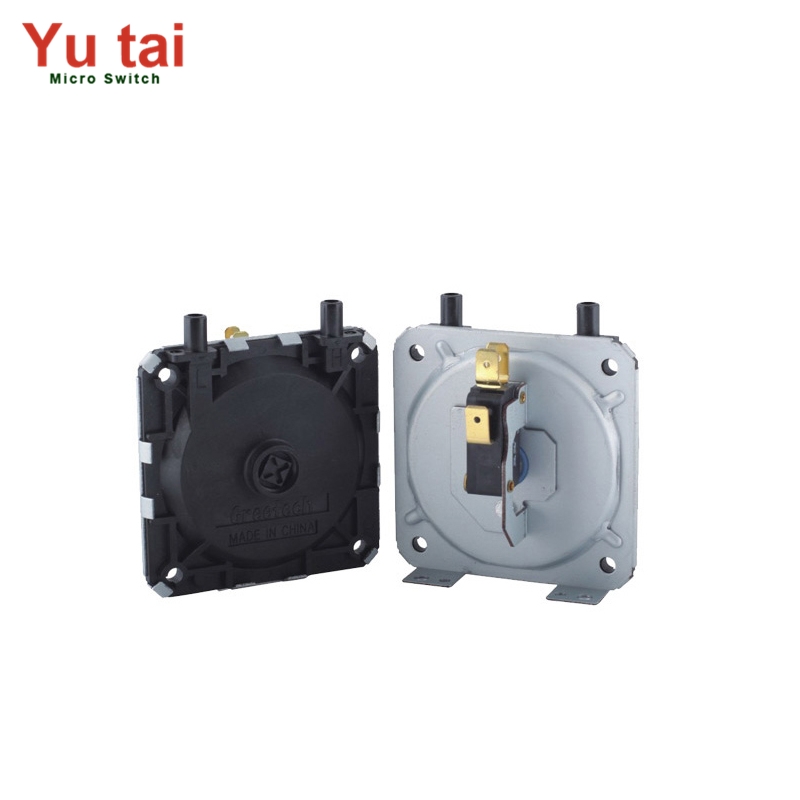

Wall Mounted Furnace Door Switch

GPS100 series air pressure switch, with high degree of customization: with customized pressure function, it can realize positive pressure sensing, negative pressure sensing and pressure difference sensing, etc.

Wide opening pressure range: the opening pressure range is 10-1500Pa, and the closing pressure is 10Pa Min, which can meet the needs of various application scenarios.

Strong load control capability: the highly sensitive and highly reliable micro switch as the main switching element can provide load control capability up to 16A, 125/250VAC.

Complete safety certification: with UL, ENEC, CQC, CUL and other major global safety certifications, the product complies with ROHS/REACH requirements.

Wide temperature range: the adaptable temperature is -40°C~+125°C (optional), and the operating temperature range is -40°C~+90°C.

Wide application areas: typical applications include boilers, wall-mounted boilers, water heaters, HVAC and other industrial control equipment.
