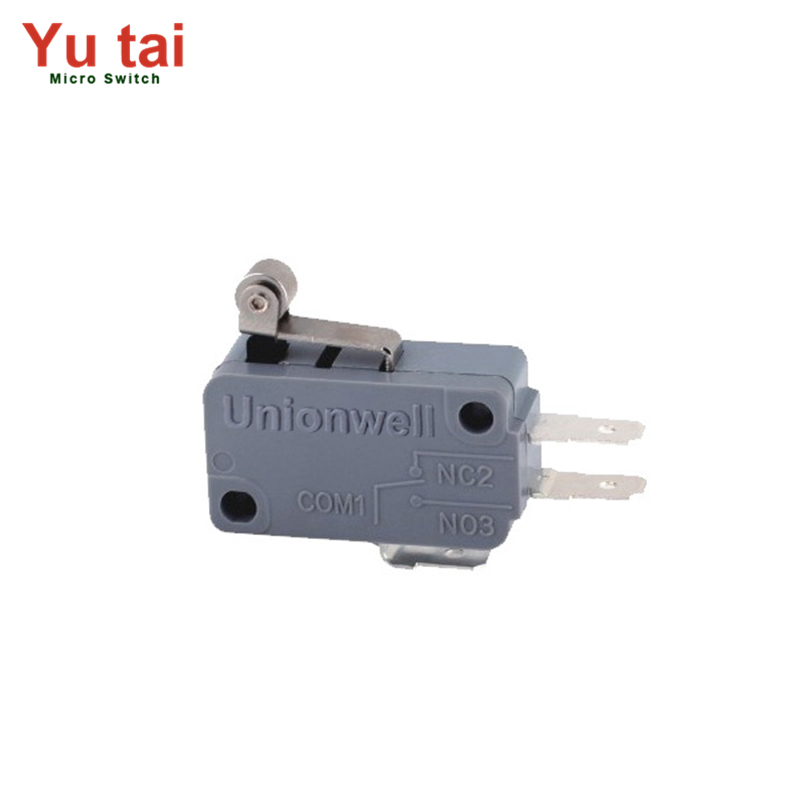

1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.
2: High durability, high reliability.
3: Equipped with global safety certifications.
4: Complete range of terminal connections.
5: Available in various temperature grades: 25T85, 25T125, 25T150.

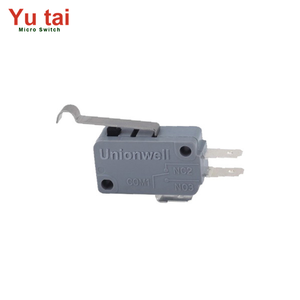

6: Fitted with various types of operating handles.
7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.
Our waterproof switches have excellent waterproof performance: using better sealing materials and more sophisticated manufacturing processes, it can achieve IP67 waterproof level. Carrying current is larger: 5A and 10A current are available. Strong vibration and shock resistance: when subjected to vibration or shock, the internal components are less likely to loosen or damage, and can maintain stable performance, suitable for harsh working environments with vibration or shock. High action accuracy: It can maintain high action accuracy, and can perform precise actions under the action of small forces to ensure the sensitivity of the switch.
Model | Standard | Specification |
G5S05 | ENEC/CQC | 0.1A 125/250VAC 48VDC 5(2.5)A 125/250VAC |
G5S05 | UL | 0.1A 125/250VAC 48VDC 5A 125/250VAC 48VDC 1/10HP |
G5T08 | ENEC/CQC | 8(10)A 250VAC |
G5T08 | UL | 10.1A 250VAC 1/2HP |
G5T10 | ENEC/CQC | 10(3)A 125/250VAC 10(4) 250VAC |
G5T10 | UL | 10A 125/250VAC 1/2HP 11A 125/250VAC 1/3HP |
G5T16 | ENEV/CQC | 16(4)A 250VAC |
G5T16 | UL | 16A 125/250VAC 1/2HP |
GTT22 | ENEV/CQC | 22(8)A 250VAC |
G5T22 | UL | 22A 125/250VAC 1HP |
G5T26 | ENEV/CQC | 26(10)A 250VAC |
Operating Temperature | -25℃∽+85℃ -25℃∽+125℃ -25℃∽+150℃ | |
Mechanical Life | 100000 cycles | |
Electrical Life | 50000 cycles |
