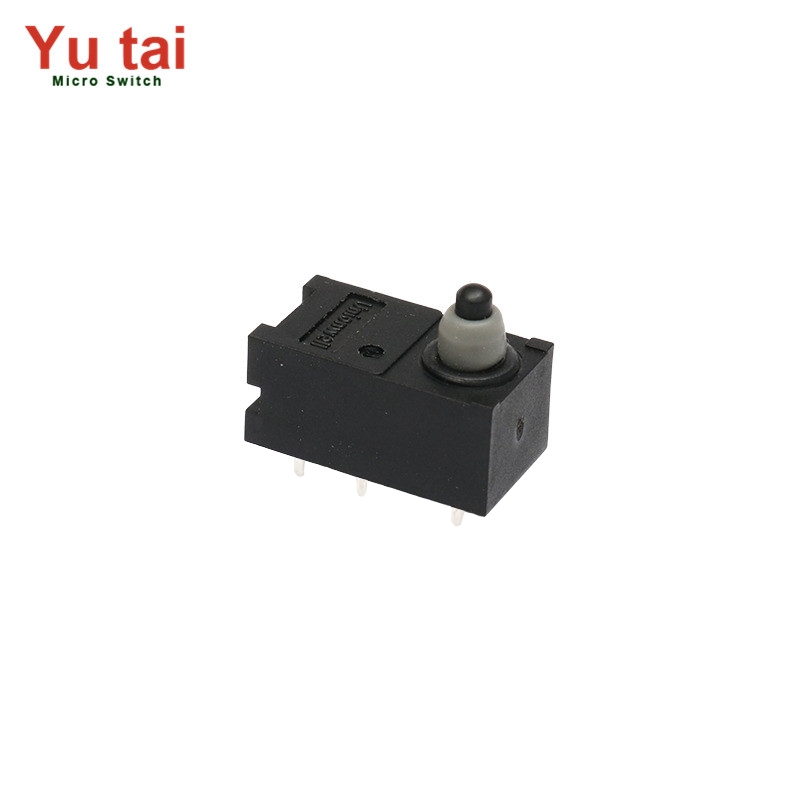

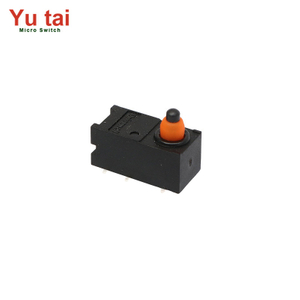

The G307A Automotive Electronic Handbrake Switch is engineered to deliver exceptional control, stability, and safety for modern automotive applications. As vehicle control systems become increasingly advanced, the demand for highly dependable components is critical. This ultra-small micro switch is specifically designed to meet the rigorous standards of the automotive industry, providing a secure and responsive interface for electronic parking brakes and other crucial control mechanisms. By integrating advanced contact mechanisms with robust environmental protection, the G307A series helps automotive manufacturers and system integrators ensure long-term operational stability and reduce the risk of component failure in the field.
Key Features and Engineering Advantages
IP67-Rated Sealed and Waterproof Structure
Operating in automotive environments exposes components to various harsh conditions, including moisture, dirt, and debris. The G307A switch features a meticulously designed IP67-grade waterproof and dustproof structure. This high level of sealing effectively prevents the intrusion of water and microscopic dust particles, ensuring the internal mechanisms remain protected. For procurement teams and engineers, this translates to reduced maintenance requirements, enhanced system longevity, and reliable performance even in challenging weather conditions or demanding operational environments.
High Reliability with Global Safety Certifications
Safety and compliance are non-negotiable in automotive electronic systems. The G307A switch has successfully passed stringent testing to achieve multiple international safety certifications, including UL, ENEC, and CQC. Furthermore, it adopts a sophisticated high-reliability sliding contact mechanism equipped with double clamp contacts. This advanced internal design guarantees precise contact engagement, minimizes contact bounce, and ensures stable electrical continuity over continuous usage cycles. This level of reliability is essential for critical safety functions like electronic handbrakes, where immediate and accurate response is required.
Exceptional Temperature Resistance and Versatile Operating Force
Automotive interiors and control modules can experience significant temperature fluctuations. This micro switch is built with high-temperature durability, capable of withstanding heat up to +85℃ without compromising its structural integrity or electrical performance. Additionally, the switch offers a wide operating force range between 50gf and 350gf. This versatility allows engineers to select the specific actuation force required for different ergonomic designs, ensuring optimal tactile feedback for end-users across various automotive scenarios.
Superior Electrical Performance in a Compact Footprint
Despite its ultra-small form factor, the G307A delivers robust electrical performance, capable of handling currents up to 10 (2) A. It operates stably within its rated voltage and current parameters while maintaining exceptionally low contact resistance. The compact structure of this micro switch makes it incredibly easy to install in tightly confined spaces within automotive control panels and steering column assemblies. Its strong adaptability is further enhanced by compatibility with a wide variety of terminals and handles, facilitating seamless integration with diverse equipment designs and circuit layouts.
Primary Applications in Automotive Systems
Designed with versatility and precision in mind, the G307A micro switch is widely utilized across various automotive control sectors. Its primary application is within electronic handbrake (EPB) systems, where reliable actuation is critical for vehicle safety. Beyond handbrakes, it is highly suitable for combination switches, steering wheel controls, gear selectors, and other automotive electronic interfaces. By choosing the G307A, manufacturers benefit from a highly adaptable, certified, and durable component that supports the rigorous demands of modern vehicle engineering and enhances overall system dependability.
