Motorcycle Accessories Switch with Special Lever

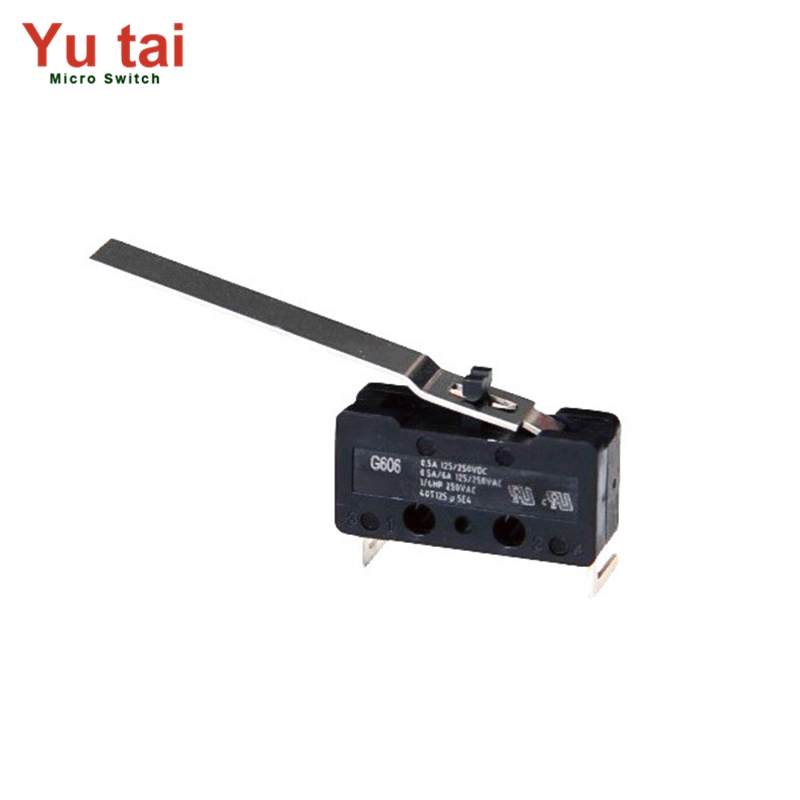

G606 micro switch has the following features: Small size: compact structure, easy to install in equipment with limited space. Long life: mechanical life can reach 500,000 cycles, electrical life is 50,000-100,000 cycles.

High reliability: adopts double-break type conversion mechanism, and has obtained major global safety certifications such as ENEC, UL, CQC, etc. Various specifications: there are various terminal types and operating handle types to choose from, and the contact form includes double break point-normally open, etc. Good electrical performance: rated value is 0.5A 125/250VDC, 0.5A/6A 125/250VAC, 1/4HP 25, contact resistance (active) 30-100mΩMax, insulation resistance 100mΩMax (500VDC), dielectric strength AC 750V RMS (50-60Hz). Wide range of applications: widely used in industrial control, floats, sewage pumps and other fields.
