The rocker switch in electronic scale applications serves as the critical gateway between the power supply and precision measurement circuitry. When an operator engages the actuator, the switch responds with a definitive, satisfying click—a tactile assurance that the internal silver-plated contacts have locked into place with zero hesitation. This solid mechanical engagement eliminates electrical arcing and guarantees an uninterrupted, clean flow of power to sensitive load cells and digital displays. Beyond its auditory and physical feedback, the switch is encased in a sleek, matte-finished flame-retardant polymer that visually complements modern industrial and commercial equipment designs, offering a premium touch point for the end-user.
By integrating this specific component, manufacturers can drastically reduce the risk of power flickering, which often leads to calibration errors, unstable readings, or data loss in weighing instruments. The internal mechanism is meticulously calibrated to maintain a pristine conductive pathway, meaning your equipment will power up reliably every single time, whether situated in the cold storage rooms of food processing plants or the sweltering environments of industrial foundries. It is not merely a power switch; it is a structural safeguard for the operational integrity of your entire product line, ensuring that your measurement devices deliver flawless, repeatable performance day after day without degradation.
To ensure seamless integration into your engineering schematics, the detailed technical parameters of the switch are outlined below. These specifications represent the rigorous testing and standardized metrics applied to every unit.
Parameter | Specification |
|---|---|

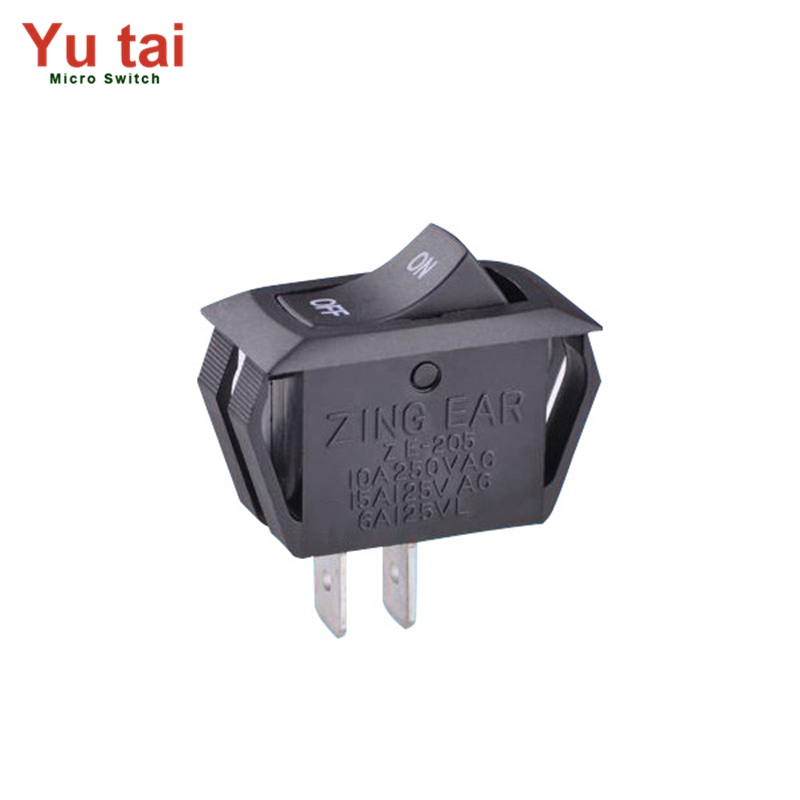

Product Name | Rocker Switch in Electronic Scale |
Standard Specification / Rating | 10A 250VAC / 15A 125VAC |
Operating Temperature | -55℃ ∽ +105℃ |
Circuit Function (Supplemented) | ON-OFF / ON-ON / ON-OFF-ON (SPST / SPDT / DPST) |
Pin Configuration (Supplemented) | 2 Pins / 3 Pins / 4 Pins / 6 Pins |
Housing Material (Supplemented) | High-quality Flame Retardant PA66 / PC |
Contact Material (Supplemented) | Copper with Silver Plating / Silver Alloy |
Contact Resistance (Supplemented) | ≤50mΩ |
Insulation Resistance (Supplemented) | ≥1000MΩ (at 500VDC) |
Dielectric Strength (Supplemented) | 1500VAC for 1 Minute |
Mechanical Life (Supplemented) | ≥50,000 Cycles |
Electrical Life (Supplemented) | ≥10,000 Cycles |
Certifications | UL (Verified), CE, CQC, RoHS, ENEC (Supplemented) |
Understanding the rigorous demands placed on commercial measurement devices, this switch is engineered to eliminate common points of failure and enhance overall equipment reliability. The design prioritizes operational continuity, ensuring that your equipment remains online and accurate during peak usage hours.
Crisp Actuation Feel: Delivers a firm, reassuring snap that prevents accidental triggering and provides immediate physical confirmation to the operator, enhancing the user experience of the final product.
Thermal Resilience: Capable of withstanding severe temperature fluctuations, preventing plastic deformation or contact freezing in unconditioned industrial environments.
Arc Suppression Architecture: The internal contact geometry minimizes electrical arcing during the make-and-break cycle, protecting sensitive downstream microprocessors from voltage spikes.
Streamlined Panel Integration: Features a highly precise housing mold that snaps flawlessly into standard panel cutouts, eliminating panel rattling and reducing assembly line delays.
Aesthetic Harmony: The smooth, low-profile actuator surface resists dust accumulation while maintaining a professional, high-end appearance on the control interface.
Supporting a robust rated load of 10A 250VAC and 15A 125VAC, this switch is engineered to handle substantial power draws without compromising safety. It features an exceptionally low contact resistance of ≤50mΩ and a superior insulation resistance of ≥1000MΩ. This precise electrical profile ensures that scales and sensitive instrumentation receive stable, noise-free power transmission, even under the stress of frequent, rapid-fire start-stop cycles common in commercial environments.
The exterior housing is injection-molded from high-quality PA66/PC flame-retardant engineering plastics, offering a rigid, heat-resistant shell that protects internal mechanisms. Internally, the contacts are forged from copper with silver plating or pure silver alloy. This material synergy not only maximizes electrical conductivity and arc resistance but also actively prevents high-temperature melting, securing the long-term safety of devices that remain powered on for extended periods.
Engineered to thrive where standard components fail, this switch boasts an ultra-wide operating temperature range from -55℃ to +105℃. Furthermore, it can be configured with specialized dust and water-resistant sealing (up to IP65/IP67 standards). This makes it the definitive choice for equipment deployed in humid food processing facilities, dusty agricultural settings, or environments subjected to extreme thermal shock, guaranteeing uninterrupted operation.
Built specifically for high-frequency interaction, the internal spring mechanism and contact pads are rated for a mechanical life exceeding 50,000 cycles and an electrical life of over 10,000 cycles. This extraordinary durability translates directly into lower maintenance overhead and drastically reduced machine failure rates, protecting your brand's reputation for reliability in the field.
To accommodate diverse engineering requirements, the switch is available in 2-pin, 3-pin, 4-pin, and 6-pin configurations. It supports multiple circuit functions including SPST, SPDT, and DPST (ON-OFF, ON-ON, ON-OFF-ON). Coupled with options for illuminated or non-illuminated actuators and various panel cutout dimensions, it provides ultimate flexibility for your design team to match specific circuit architectures and aesthetic guidelines.
Time is a critical metric on any production floor. This switch utilizes a standardized snap-in mounting design that locks securely into place without the need for secondary hardware. When paired with quick-connect terminals or designed for rapid wave soldering, it allows for tool-free, high-speed assembly. This ergonomic and efficient design significantly accelerates production throughput and reduces labor costs on the assembly line.
Navigating international markets requires uncompromising safety standards. This product is fully UL verified and strictly complies with CE, CQC, RoHS, and ENEC certifications. Every single unit undergoes 100% automated end-of-line testing to verify mechanical action and electrical continuity. This rigorous quality control ensures absolute batch consistency, empowering your finished products to clear customs and regulatory hurdles globally without friction.
Selecting the right component partner is crucial for maintaining the integrity and profitability of your production lines. We operate as an extension of your engineering and procurement teams, delivering comprehensive manufacturing solutions rather than just individual parts. Our facilities utilize advanced automation to ensure every switch meets exacting dimensional and electrical tolerances.
Uncompromising Quality Control: Rigorous automated testing protocols guarantee zero-defect integration into your equipment, eliminating costly rework.
Scalable Production Capacity: Whether you are ramping up for a global product launch or sustaining legacy lines, our manufacturing infrastructure adapts to your exact volume requirements.
Dedicated Engineering Support: Our technical team is readily available to assist with custom pin configurations, specialized housing materials, or specific compliance documentation tailored to your project.
Supply Chain Stability: We maintain robust, localized raw material sourcing networks, insulating your production schedule from unexpected global supply disruptions and ensuring on-time delivery.
Below are some of the most common technical inquiries we receive from engineering and procurement professionals regarding the integration of this rocker switch.
How does the contact resistance of ≤50mΩ affect the accuracy of measurement devices?
A low contact resistance ensures that there is minimal voltage drop across the switch. For sensitive electronic scales, this means the internal microprocessors and load cells receive a clean, stable power supply, preventing fluctuations that could lead to inaccurate weight readings or calibration drift.
Can the snap-in housing accommodate varying panel thicknesses?
Yes, the precision-engineered retention clips on the side of the PA66/PC housing are designed to flex and lock securely across a range of standard sheet metal and plastic panel thicknesses, ensuring a tight, vibration-free fit without the need for adhesives or screws.
What makes the silver alloy contacts superior for high-frequency operation?
Silver alloy provides an optimal balance of high electrical conductivity and resistance to mechanical wear. It significantly reduces the micro-welding and oxidation that occur during electrical arcing, thereby extending the switch's electrical life to over 10,000 cycles even under heavy loads.
Are these switches compatible with automated assembly and soldering processes?
Absolutely. The terminals are designed to withstand standard wave soldering temperatures without compromising the integrity of the plastic housing. Additionally, the quick-connect terminal options are perfectly suited for automated wire harness attachment, speeding up your assembly line.
How does the -55℃ to +105℃ temperature rating benefit commercial applications?
This ultra-wide thermal range ensures that the switch's mechanical snap action and electrical insulation remain intact in extreme environments. Whether the scale is used in a blast freezer or near a commercial oven, the plastic will not become brittle, and the internal lubricants will not freeze or degrade.
What documentation is provided to support international regulatory compliance?
We provide comprehensive certification dossiers, including UL verification reports, CE declarations of conformity, and RoHS material compliance sheets. This documentation is readily available to support your product's certification process for global market entry.
