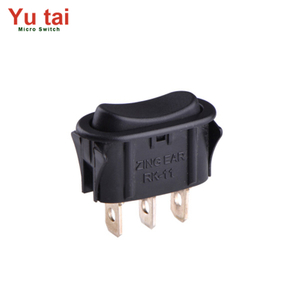

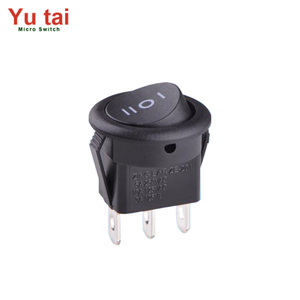

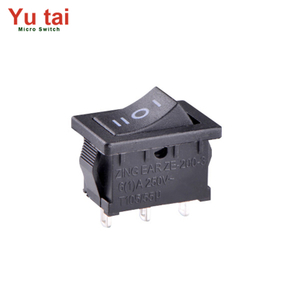

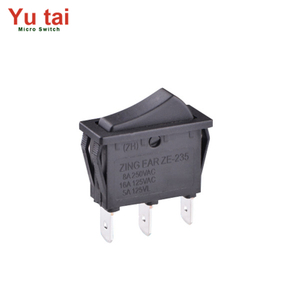

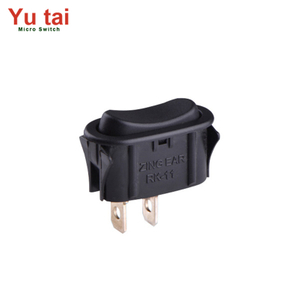

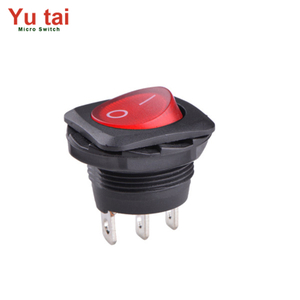

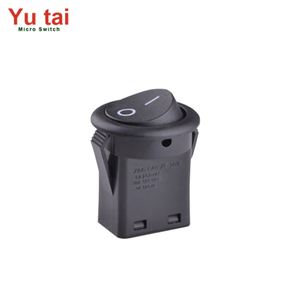

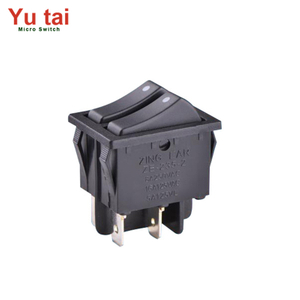

Rocker Switch in Small Fan

Product Overview

It enables users to easily turn the fan on/off and adjust speed settings, with a design that integrates seamlessly into the fan’s internal structure without adding excess bulk.

Product Features

Simple Operation: Features a seesaw-style design with raised indicators (low/medium/high) for intuitive control, allowing users to switch between settings with a single finger movement. The switch lever has a textured surface to enhance grip.

Compact Size: Measures 20mm×15mm×10mm, with a lightweight design (15g) to avoid adding extra load to small fan structures. The slim profile fits into tight spaces within fan casings.

Electrical Specifications: Rated for 250V AC, 2A, ensuring safe and stable operation within the power range of most small fans (5W - 50W). The contacts are made of silver-plated copper for improved conductivity and reduced arcing.

Longevity: Constructed with flame-retardant ABS plastic (UL94 V-0 rating), the switch has an expected service life of 10,000 cycles of operation, with a temperature tolerance range of -10°C to 60°C.

Applications

Specifically designed for use in small table fans, desk fans, personal fans, and mini USB fans. Compatible with both AC-powered and DC-powered small fans commonly found in bedrooms, offices, and dorm rooms, where easy speed adjustment is a key user requirement.

FAQ

Q: Can it be used with 12V DC fans?

A: Yes, it is compatible with 12V DC fans as long as the current does not exceed 2A; check the fan’s power consumption (Watts = Volts × Amps) to ensure compatibility.

Q: Is professional tools required for installation?

A: Basic screwdrivers are sufficient for installation, following the fan manufacturer's wiring instructions. It is recommended to disconnect the fan from power before installation.

Q: Does it have overheat protection?

A: This model does not include overheat protection; it is primarily a control switch. For fans requiring overheat protection, additional safety components may be needed.

Q: What is the contact resistance of the switch?

A: The contact resistance is ≤50mΩ, ensuring minimal power loss during operation.
