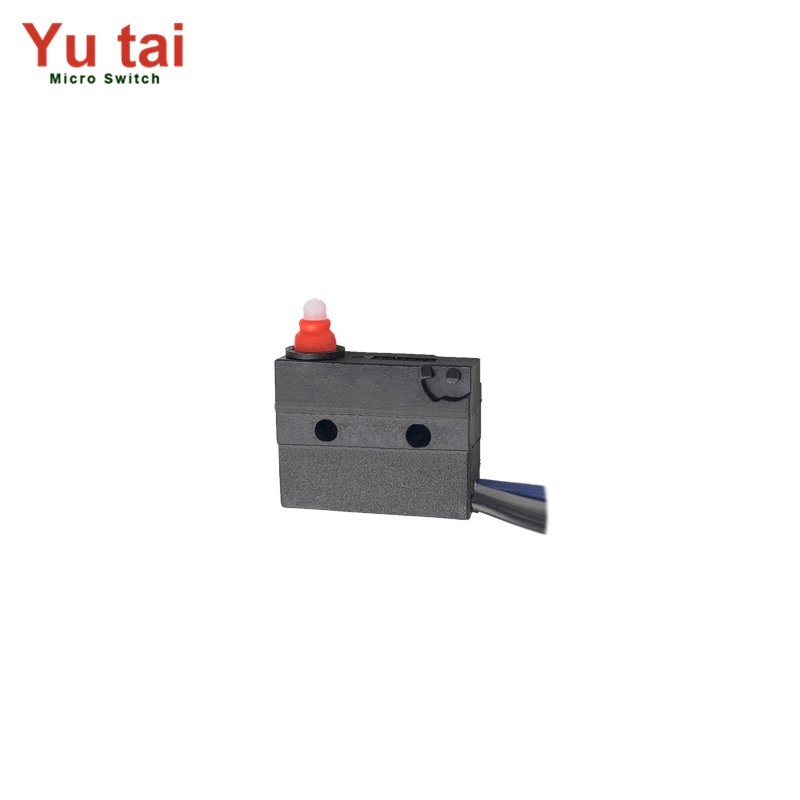

Our G9A05 series waterproof switches have excellent waterproof performance: using better sealing materials and more sophisticated manufacturing processes, it can achieve IP67 waterproof level, and can work stably in harsher humid or underwater environments. Carrying current is larger: Strong vibration and shock resistance: When subjected to vibration or shock, the internal components are less likely to loosen or damage, and can maintain stable performance, suitable for harsh working environments with vibration or shock. High action accuracy: It can maintain high action accuracy, and can perform precise actions under the action of small forces to ensure the sensitivity of the switch.
Standard | Specification |
ENEC/CQC | 0.1A 125/250VAC 30VDC |
UL | 0.1A 125/250VAC 30VDC |
ENEC/CQC | 5(2)A 125/250VAC 30VDC |
UL | 5A 125/250VAC 30VDC |
Operating Temperature | -40℃∽+85℃ |
Mechanical Life | 200000 cycles |
Electrical Life | 50000 cycles |
