Sourced directly from a premier manufacturer, this sealed miniature micro switch is engineered specifically for demanding automotive applications. As a reliable supplier of high-precision electromechanical components, we provide switches designed to integrate seamlessly into complex automobile wiring harnesses, ensuring flawless operation in critical vehicle systems.
| Quantity: | |
|---|---|
G303-130S00A12U
Yutai

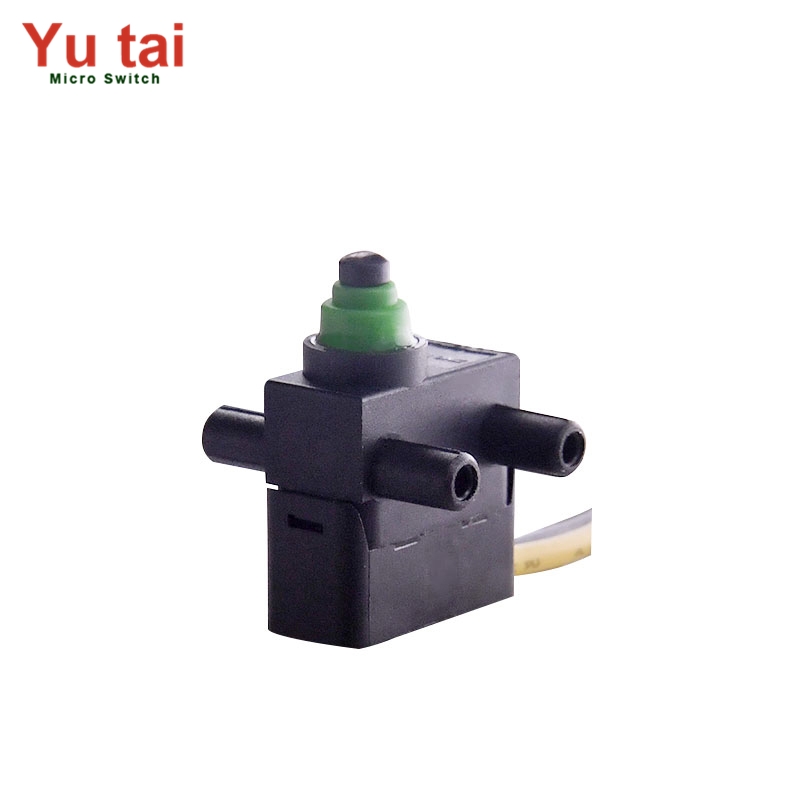

The Sealed Miniature Micro Switch in Automobile Wiring Harness represents the pinnacle of electromechanical precision, crafted specifically to endure the unforgiving environments found within modern vehicles. When actuated, the internal snap-action mechanism delivers a distinct, tactile click—a crisp, mechanical confirmation of instantaneous signal transmission. This auditory and tactile feedback is the result of meticulously engineered internal levers and premium spring materials that guarantee zero-delay communication with the vehicle's control modules. Encased in a rugged, high-density polymer shell, the switch feels incredibly solid despite its subminiature footprint. It is built to resist the ingress of moisture, fine dust, and harsh automotive fluids, ensuring that the internal gold or silver-plated contacts remain pristine throughout the vehicle's lifespan. By eliminating the risk of contact oxidation and signal bounce, this switch resolves the persistent industry challenge of intermittent electrical failures in high-vibration automotive zones. Whether nestled within a heavy-duty door latch assembly or integrated into an electric vehicle charging port, it provides engineers with a failsafe component that elevates the overall reliability, safety, and operational feel of the entire automotive electrical architecture.

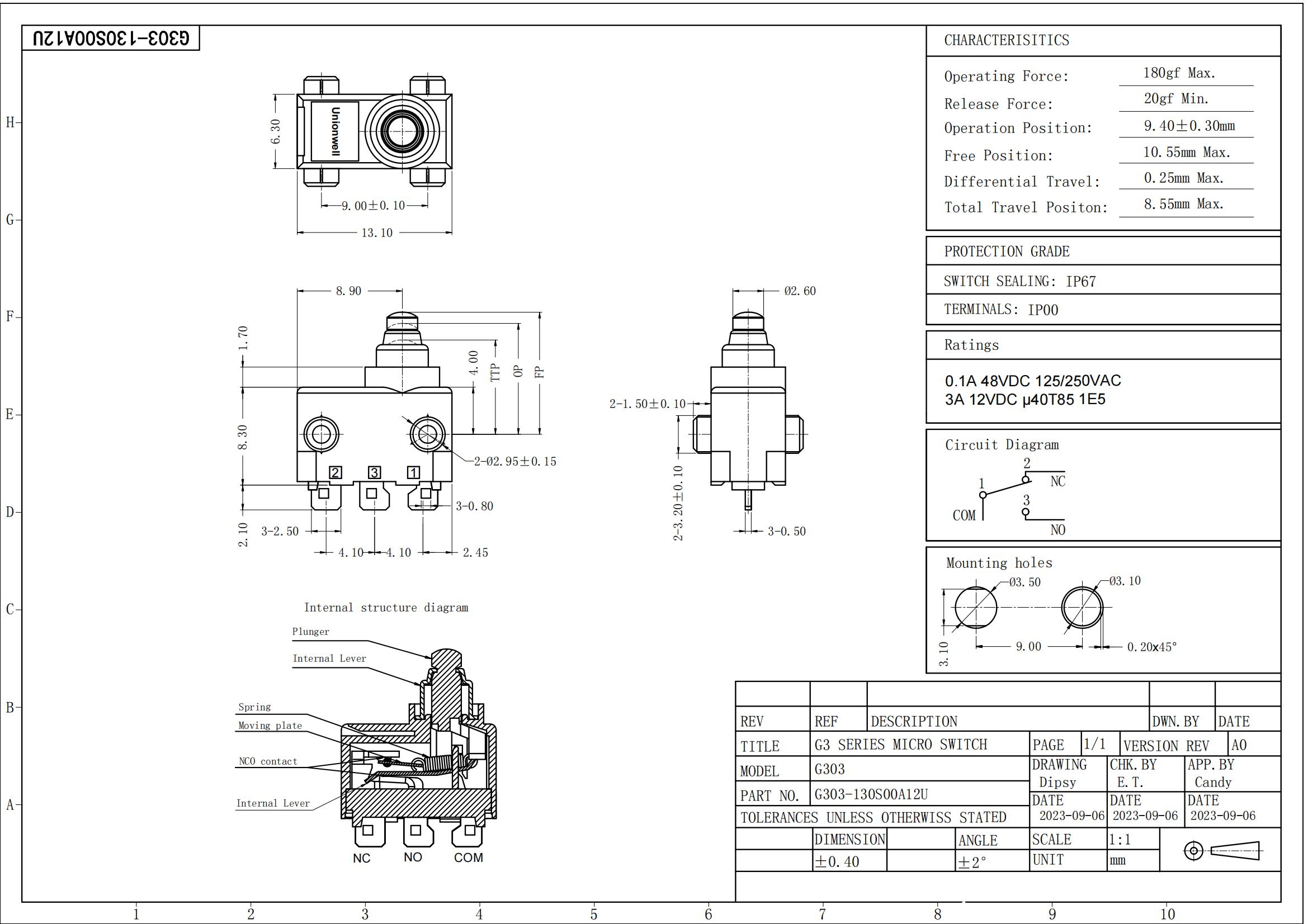

Our engineering team ensures that every specification meets the rigorous demands of global automotive standards. The following table details the precise electrical and mechanical parameters of the sealed miniature micro switch, providing all necessary data for seamless integration into your current wiring harness projects.
Standard | Specification |
ENEC/CQC | 0.1A 125/250VAC 48VD |
UL | 3A 12VDC |
Operating Temperature | -40℃∽+85℃ |
Mechanical Life | 500000 cycles |
Electrical Life | 100000 cycles |
Key Features & Highlights
Engineered for excellence, this micro switch combines robust physical construction with highly sensitive electrical performance. It is designed to empower automotive engineers by providing a flawless interface between mechanical movement and electrical signaling, effectively reducing warranty claims and enhancing user satisfaction across vehicle platforms.
Uncompromising Sealing Technology: Advanced encapsulation techniques keep internal components completely isolated from external contaminants.
Tactile Precision: The internal spring mechanism guarantees a sharp, consistent operating force, delivering predictable actuation over hundreds of thousands of cycles.
Space-Optimized Architecture: The subminiature design allows for installation in the most restrictive cavities of a vehicle's chassis.
Versatile Connectivity: Multiple terminal configurations ensure that the switch can be adapted to virtually any existing wiring harness layout without requiring extensive modifications.
Modern automotive design demands components that can fit into increasingly confined spaces without sacrificing performance. This sealed miniature micro switch is meticulously engineered to address the spatial constraints of contemporary vehicle architectures. Its subminiature form factor makes it the ideal candidate for integration into complex mechanical assemblies, ensuring that engineers do not have to compromise on space or functionality.
Perfectly sized for automotive wiring harnesses, ensuring neat and unobtrusive routing throughout the vehicle frame.
Seamlessly integrates into car door locking mechanisms, accurately detecting latch positions to trigger security systems.
Highly suitable for motorized seat adjustment controls, providing reliable end-of-travel limits for passenger safety.
Ideal for electric vehicle (EV) charging guns, verifying secure physical connections before initiating high-voltage power delivery.
Features multiple positioning posts and dimensional variations to match diverse mounting requirements across different vehicle models.
Vehicles operate in some of the most unforgiving environments on the planet, exposing internal components to extreme temperature fluctuations, moisture, and abrasive road debris. This switch is fortified with a fully sealed structural design, achieving a rigorous IP67 waterproof and dustproof rating. By effectively isolating the sensitive internal electrical contacts from the harsh external mechanical structure, it guarantees uninterrupted performance regardless of the weather conditions.
Maintains structural and electrical integrity in extreme freezing conditions down to -40℃, preventing plastic embrittlement.
Resists thermal degradation and casing deformation in high-heat engine compartment environments up to +85℃.
Impervious to high-frequency engine vibrations and harsh road shocks, preventing accidental contact bounce or false signaling.
Completely blocks the ingress of high-humidity air, mud, and corrosive road salts encountered during daily driving.
Eliminates the risk of signal loss or contact corrosion, ensuring a lifetime of reliable switching in any climate.
Procurement teams require components that will outlast the vehicle's standard warranty period, and this micro switch is built for exceptional longevity. The internal architecture utilizes premium-grade spring metals and superior contact materials to significantly mitigate the risks of electrical arcing and short circuits during rapid actuation. This focus on premium metallurgy ensures that the switch performs identically on its first click as it does on its hundred-thousandth.
Delivers an impressive mechanical life of up to 500,000 cycles without structural fatigue or loss of tactile feedback.
Guarantees an electrical life of 100,000 cycles under full rated loads, providing peace of mind for critical safety circuits.
Premium contact plating (such as gold or silver) ensures extremely low contact resistance, perfect for low-current signal circuits.
Robust internal lever design prevents mechanical jamming or spring snapping over years of continuous operation.
Provides high-frequency, stable operation throughout the entire lifecycle of the automobile, reducing aftermarket replacement rates.
Recognizing that no two automotive projects are exactly alike, we offer extensive OEM and ODM customization options to perfectly align with specific engineering prerequisites. Our advanced manufacturing capabilities allow for deep structural and electrical modifications, ensuring that the switch operates exactly as intended within your proprietary assemblies, rather than forcing you to adapt your designs to an off-the-shelf part.
Tailor the operating force to achieve the exact tactile feel and mechanical resistance required by your specific application.
Select from a wide array of contact materials to optimize performance for either low-voltage sensor signals or higher power loads.
Choose specific terminal types, including standard solder, quick-connect blades, PCB pins, or custom pre-wired leads.
Customize the actuator lever shape—from straight to roller or entirely unique geometries—to perfectly match the mechanical trigger point.
Option to integrate internal resistors directly into the switch housing for specialized circuit diagnostics and fault detection.
Navigating the complex landscape of global automotive regulations requires components that are pre-certified to the highest international standards. This micro switch is manufactured under strict quality control protocols, directly reducing the testing burden and compliance costs for automotive assembly plants. By choosing a fully certified component, engineering teams can bypass lengthy approval processes and accelerate their project timelines.
Fully certified by UL, ensuring compliance with stringent North American electrical safety and fire resistance standards.
Carries ENEC and CQC approvals, facilitating immediate regulatory acceptance in European and Asian automotive markets.
Produced in advanced facilities strictly adhering to the IATF16949 automotive quality management system.
High-level compliance drastically minimizes the risk of costly vehicle recalls due to premature component failure.
Accelerates the time-to-market for new vehicle models by utilizing pre-validated, globally recognized switching components.
The core of this switch features an advanced snap-action mechanism designed for hyper-responsive performance. When mechanical force is applied, the switch translates the smallest physical displacement into an immediate, crisp electrical signal. This instantaneous feedback is critical for modern vehicles that rely on real-time data processing to manage advanced driver-assistance systems (ADAS) and basic vehicle functions alike.
Ultra-short travel distance allows for rapid actuation with minimal mechanical input from the surrounding assembly.
The snap-action lever mechanism provides a clean, distinct switching transition, eliminating ambiguous or floating signal states.
Ensures zero-delay communication with the vehicle's Body Control Module (BCM) for instantaneous system responses.
Highly sensitive detection capabilities drastically improve the responsiveness of automotive safety monitoring systems.
The crisp auditory and tactile click confirms successful operation during manual assembly, calibration, and testing phases.
Optimizing the production line is a top priority for automotive manufacturers. This micro switch is purposefully designed to streamline the assembly process, reducing labor time and minimizing the potential for human error during complex wiring tasks. Its thoughtful construction also simplifies downstream maintenance and diagnostics, providing value long after the vehicle has left the factory floor.
Available with custom pre-wired configurations that plug directly into existing automotive wiring harnesses.
Eliminates the need for manual soldering on the assembly line, significantly boosting production throughput and consistency.
Foolproof terminal designs help prevent incorrect wiring connections by assembly technicians, reducing rework rates.
Modular construction allows for rapid isolation, diagnostic testing, and replacement during aftermarket servicing.
Reduces overall manufacturing costs by accelerating installation times and lowering component-related defect rates.
As a dedicated manufacturer and supplier of precision electromechanical components, we understand the critical nature of supply chain reliability and consistent product quality. We partner with procurement specialists and engineering teams to deliver solutions that drive technological advancement while maintaining strict cost efficiencies. Our commitment goes beyond simply providing parts; we deliver comprehensive engineering support and scalable production capabilities to meet the demanding schedules of high-volume automotive manufacturing.
Advanced Manufacturing Facilities: Utilizing fully automated assembly lines to guarantee absolute consistency and precision across millions of units.
Stringent Quality Control: Every production batch undergoes rigorous environmental, electrical, and lifecycle testing before leaving our facility.
Agile Supply Chain: We maintain robust inventory management and flexible production schedules to ensure on-time delivery, preventing costly production line halts.
Expert Engineering Support: Our technical team collaborates directly with your designers to develop bespoke switching solutions tailored to unique vehicle architectures.
To assist your engineering and procurement teams in their evaluation process, we have compiled answers to the most common technical inquiries regarding our sealed automotive micro switches. These insights are designed to clarify performance capabilities and integration procedures.
The switch utilizes a high-tension snap-action spring mechanism combined with a robust, tightly sealed housing. This internal design ensures exceptionally high contact pressure, preventing contact bounce, micro-arcing, and signal interruption even under severe engine idling or harsh road vibrations.
Yes. As a primary manufacturer, we provide multiple terminal options including standard solder lugs, quick-connect pins, PCB terminals, and fully customized pre-wired leads. These options are specifically designed to integrate seamlessly with your automated robotic assembly processes, reducing manual labor.
The IP67 rating guarantees that the internal electrical contacts are completely protected against fine dust ingress and temporary submersion in water. This makes the switch highly reliable for exterior or exposed applications like door latches, trunk locks, and EV charging ports where exposure to rain, snow, and debris is a constant threat.
Lead times depend heavily on the complexity of the customization required. However, our agile manufacturing processes and in-house tooling capabilities typically allow us to produce functional prototypes for OEM evaluation within a few weeks, followed by rapid scaling for mass production to meet your rollout schedule.
Absolutely. All plastics, metals, and plating materials utilized in the construction of our micro switches fully comply with strict RoHS and REACH directives. This ensures that your final automotive products meet all international environmental regulations and safety standards without requiring secondary material audits.
