The G9/G605 Series Switch Is Used in Smart Vacuum Cleaners.

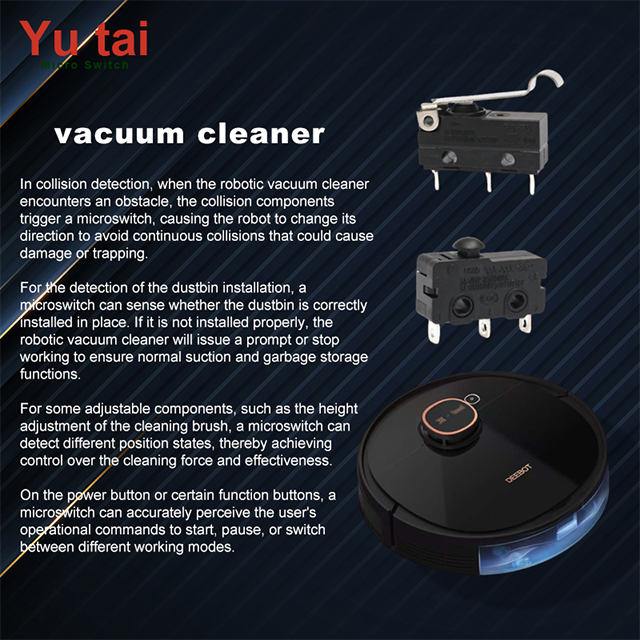

1.The G9/G605 series switch is used in smart vacuum cleaners.

2. The microswitch detects physical displacement or movement and converts it into an electrical signal, which is then transmitted to the vacuum cleaner's control system. When the robot encounters an obstacle or reaches a preset condition, the control system responds accordingly based on the signal, such as adjusting its movement path, stopping movement, or switching to a different operating mode. This helps protect the robot and improve cleaning efficiency.

3. The standard mechanical life of this switch is up to 1 million cycles, with an electrical life of 50,000 cycles. The waterproof version has a mechanical life of 500,000 cycles and an electrical life of 100,000 cycles. The switch has a compact structure and can be equipped with various operating levers.

4. Since the microswitch is located at the bottom or side of the vacuum cleaner, it is prone to accumulating dust and debris. Therefore, regular cleaning and maintenance are essential. Users can use a soft brush and a hairdryer to clean the dust around the switch to ensure its normal operation. If the robot fails to start or suddenly stops working, check if the microswitch is damaged or blocked by debris. If necessary, contact a professional repair person for inspection and maintenance.
