G5W11-WZ200B15-W3400-T132U
Yutai

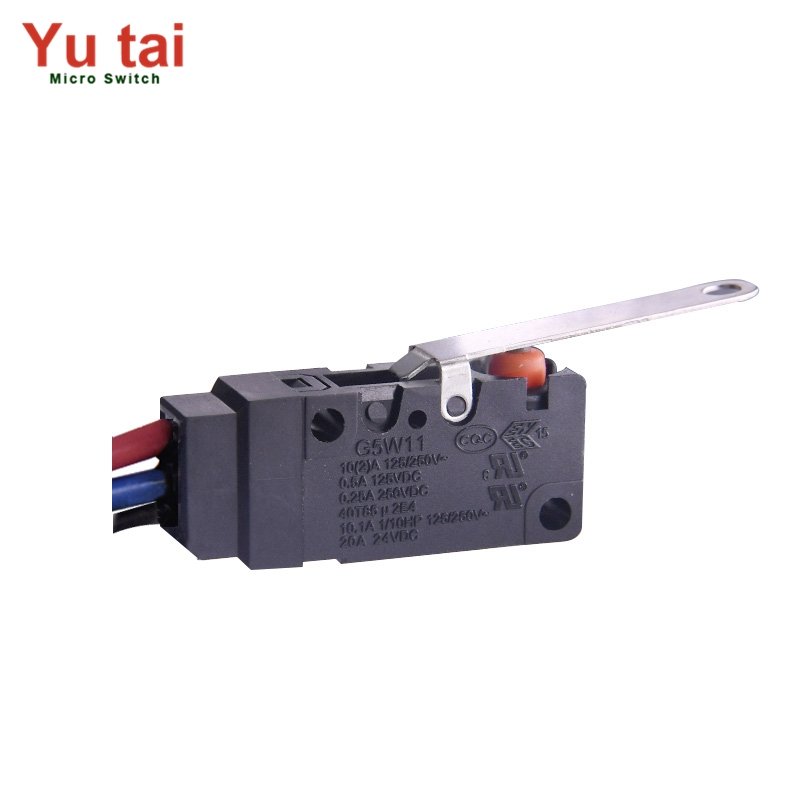

Our G5W11 series waterproof switches have excellent waterproof performance: using better sealing materials and more sophisticated manufacturing processes, it can achieve IP67 waterproof level. Carrying current is larger: 5A and 10A current are available. Strong vibration and shock resistance: when subjected to vibration or shock, the internal components are less likely to loosen or damage, and can maintain stable performance, suitable for harsh working environments with vibration or shock. High action accuracy: It can maintain high action accuracy, can perform precise actions under the action of small forces, and ensure the sensitivity of the switch.
Standard | Specification |
ENEC/CQC | 0.1A 125/250VAC 48VDC 5A 125/250VAC 30VDC |
UL | 0.1A 125/250VAC 48VDC |
Operating Temperature | -25℃∽+125℃ |
Mechanical Life | 500000 cycles |
Electrical Life | 100000 cycles |
