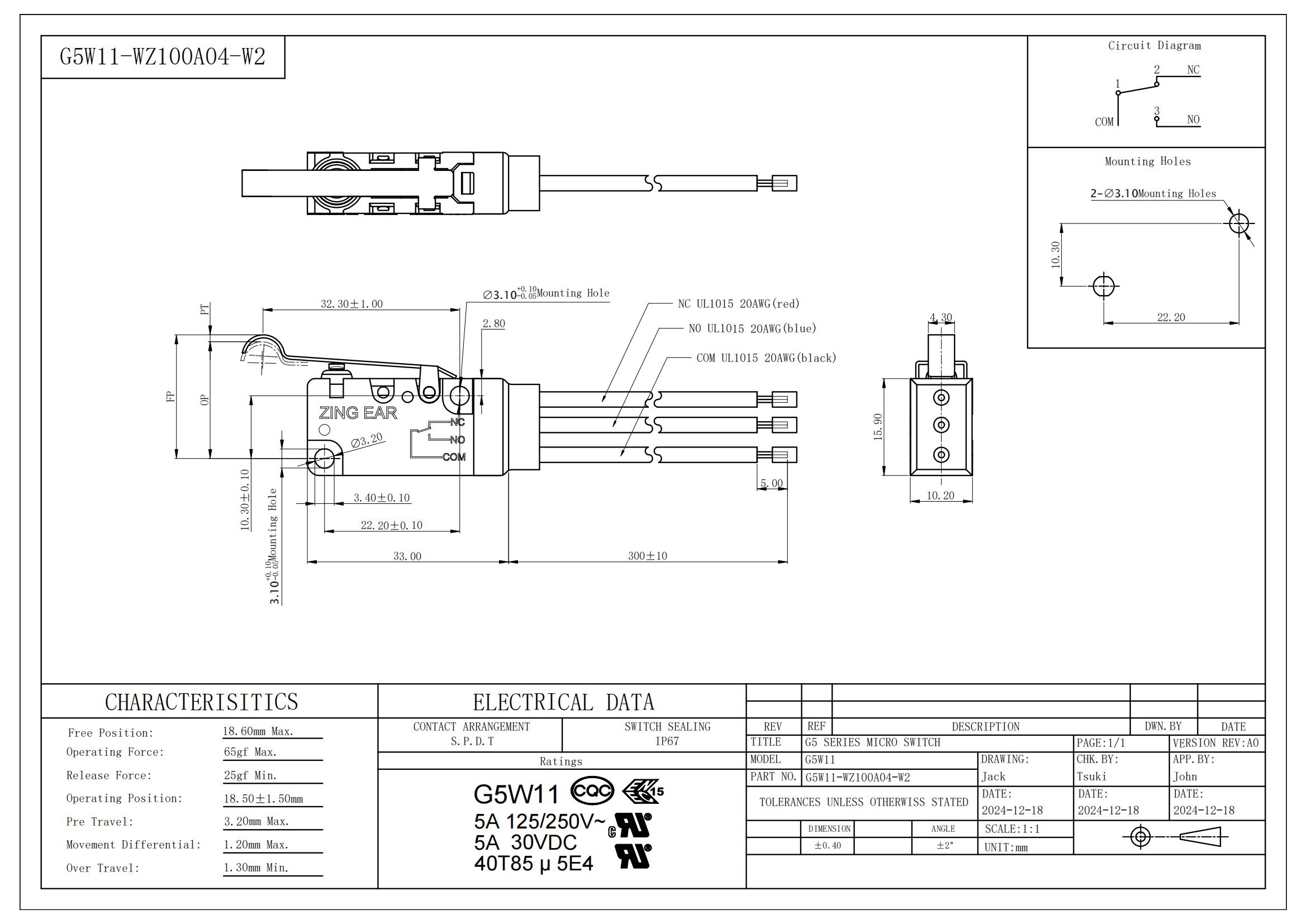

G5W11-WZ100A04-W2
Yutai

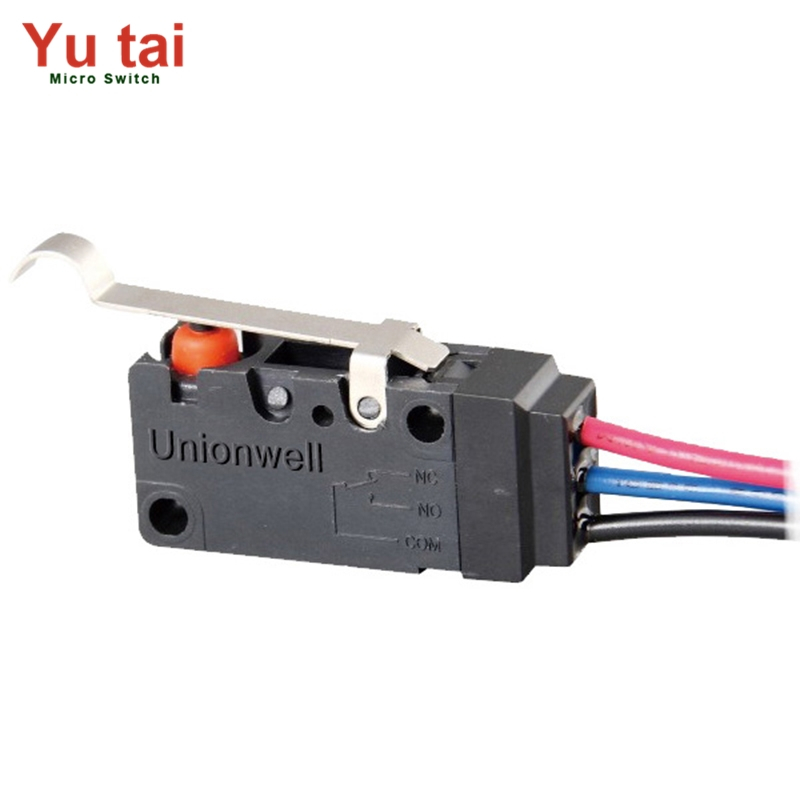

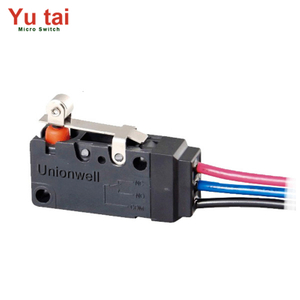

Our G5W11 waterproof micro switch 1. Good waterproof and dustproof performance: reaching IP67 protection level, it can effectively prevent dust from entering and short-term immersion in water. Compact and sensitive structure: compact structure, small action stroke, can respond quickly to small external forces, and high operating precision. Complete safety certification: passed ENEC, UL and other safety certifications, safe and reliable to use. Long life and high reliability: electrical life can reach 100,000 times, mechanical life can reach 1 million times, stable performance, large current carrying capacity: under ENEC/UL certification, the current reaches 10A, which can meet the power requirements of more circuits. Diverse operating handles: There are a variety of handles to choose from to meet different installation and operation requirements. Wide temperature range: the storage temperature is -40°C~+85°C, and it can be used in a variety of ambient temperatures.
Standard | Specification |
ENEC/CQC | 0.1A 125/250VAC 48VDC 5A 125/250VAC 30VDC |
UL | 0.1A 125/250VAC 48VDC |
Operating Temperature | -25℃∽+125℃ |
Mechanical Life | 500000 cycles |
Electrical Life | 100000 cycles |
