How Does Rocker Switch Work?

Views: 0     Author: Site Editor     Publish Time: 2026-01-06      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button


Rocker switches, often called see-saw switches, sit at the interface of human intent and machine action. They appear everywhere, from household coffee makers to industrial control panels. While they seem simple, these components act as critical failure points in product design. If a switch fails, the entire machine becomes useless, regardless of how robust the rest of the engineering might be. Engineers and procurement officers must look beyond the basic ON/OFF functionality to ensure reliability.


Understanding the internal actuation mechanism is vital. It allows you to predict lifecycle longevity, ensure safety compliance, and optimize the user experience. A cheap component may save pennies now but cost thousands in warranty claims later. This guide covers the physical mechanics, circuit logic, failure modes, and how to evaluate a reliable Rocker Switch for your specific application. We will explore what separates a durable, heavy-duty component from a standard consumer-grade part.


Key Takeaways

  • Mechanism Matters: The shape of the internal spring (e.g., semi-elliptical) determines tactile feedback and resistance to contact welding.

  • Circuit Logic: Distinguishing between SPST and DPDT is critical for managing redundant circuits or complex load requirements.

  • Environment vs. Component: Heavy duty rocker switches require specific IP ratings and flame-retardant materials (UL94 V-0) distinct from standard consumer electronics.

  • TCO Reality: Cheap components increase Total Cost of Ownership via higher field failure rates; certified endurance (cycles) is the primary value metric.


The Internal Physics: Actuation and Arc Suppression

At first glance, the operation seems trivial. You press one side, and the device turns on. However, the internal physics involve a precise balance of mechanical force and electrical conductivity.


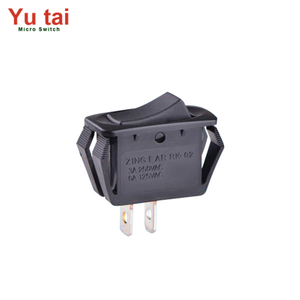

The See-Saw Principle

The core mechanism operates on a fulcrum. When you press the actuator, it pivots around a central point, elevating the contacts on the opposite side. This "see-saw" motion distinguishes it from a toggle switch. Toggle switches utilize a lever that moves a mechanism, often requiring more vertical space. Rocker switches offer a lower profile on the control panel. This design also provides inherent protection against accidental actuation; the flush profile makes it harder to snag on clothing or equipment passing by.


The Role of the Spring (The Heart of the Switch)

Inside the housing, the spring performs two critical functions. First, it maintains contact pressure. Without sufficient pressure, electrical resistance increases at the contact point, generating heat. Over time, this heat can melt the plastic housing or deform the terminals.

Second, the spring acts as an anti-welding safety feature. In high-load scenarios, electrical arcs can momentarily melt the metal contacts, causing them to fuse or "micro-weld" together. High-quality switches often utilize a semi-elliptical spring design. When you actuate the switch to the OFF position, this spring shape applies shear force. It mechanically "tears" the contacts apart if minor welding has occurred. This engineering detail is often what separates a generic part from a robust custom rocker switch designed for longevity.


Snap-Action Mechanism

Speed is essential in electrical switching. A "lazy" switch action allows the contacts to hover near each other, creating sustained electrical arcs. These arcs pit the contact surface and degrade conductivity. A snap-action mechanism ensures that the transition between ON and OFF happens instantly, regardless of how slowly the user presses the button. This rapid separation suppresses the arc quickly. Furthermore, this mechanism provides the tactile "click" users expect. That feedback confirms the command was registered, a vital aspect of user experience design.


Deciphering Circuit Logic: Poles, Throws, and Pinouts

Selecting the right switch requires understanding the flow of electricity. You must match the switch logic to the complexity of the device you are controlling.

Visualizing the Current Path

Switches are categorized by "Poles" (number of circuits controlled) and "Throws" (number of ON positions). Here is a breakdown of common configurations:


TypeLogicTypical Application
SPST (Single Pole Single Throw)One input, one output. Simple ON-OFF.Powering a light or a simple refrigerator rocker switch.
SPDT (Single Pole Double Throw)One input, two outputs. Routes power to Load A or Load B.High Speed vs. Low Speed settings on a fan.
DPST (Double Pole Single Throw)Two isolated inputs, two outputs. Both actuate simultaneously.Cutting both Live and Neutral lines for safety.
DPDT (Double Pole Double Throw)Two inputs, four outputs. Complex routing.Reversing motor direction (polarity reversal).


For simple appliances, an SPST configuration usually suffices. However, heavy machinery often requires DPST switches to isolate the input and output fully, cutting both the Live and Neutral wires to ensure safety during maintenance.


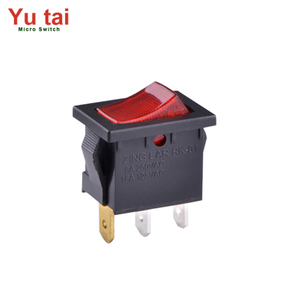

Terminal Identification Guide

Miswiring a switch can lead to short circuits or non-functioning indicators. Standard terminals typically follow this layout:

  • Pin 1 (Power/Line): This connects to the incoming voltage source (the "hot" wire).

  • Pin 2 (Accessory/Load): This pin connects to the device you want to power. When the switch is flipped, continuity is established between Pin 1 and Pin 2.

  • Pin 3 (Ground/Earth): This is essential for illuminated switches. It completes the circuit for the internal LED or neon lamp. Without this connection, the switch functions, but the light will not turn on.


Wiring Safety Note

In AC applications, phase alignment is standard. However, in DC applications, polarity is critical. Reversing polarity on a DC switch with an LED can instantly burn out the diode. Always verify the schematic before soldering.


Material Science & Durability: Evaluating "Heavy Duty" Claims

Not all plastic is created equal. When sourcing components, specifically a heavy duty rocker switch, material science defines the boundary between safety and fire hazard.


Housing Materials & Flammability

The housing must withstand physical impact and thermal stress. Standard commodity switches might use polystyrene, which is cheap but brittle. Engineering-grade switches utilize Nylon 66 or Polycarbonate. These materials offer high dielectric strength and heat resistance.

For unattended appliances, such as a Water Dispenser Rocker Switch, flammability ratings are non-negotiable. You should look for materials rated UL94 V-0. This rating ensures that if the plastic ignites, it will self-extinguish within 10 seconds and will not drip flaming particles. This prevents a minor switch failure from escalating into a catastrophic device fire.


Contact Materials

The metal contacts bear the brunt of the electrical load. While copper is a good conductor, it is soft and prone to oxidation.

  • Silver Alloy: For currents above 10A, silver alloy contacts are necessary. They resist the pitting caused by arcing. Pure silver is too soft, so alloys (like Silver-Nickel or Silver-Cadmium Oxide) provide the hardness needed for thousands of cycles.

  • Gold Plating: For low-voltage logic circuits (5V or less), oxidation can block the signal. Gold plating is immune to corrosion, making it the standard for reliable low-power data switching.



Ingress Protection (IP Ratings)

The environment dictates the required sealing. An office power strip typically uses IP40 switches, protecting against solid objects but not water. Conversely, a Rocker Switch in Water Dispenser environments or marine dashboards needs IP65 or IP67 ratings. These ratings certify that the switch resists dust ingress and direct water jets. This protection is achieved using internal rubber O-rings on the actuator and potting material around the terminals. Alternatively, external silicone boots can be added to standard switches to boost their resistance.


Application Scenarios & Customization Options

Different industries impose unique demands on switch performance. A switch designed for a vacuum cleaner may fail instantly if installed in a boat.


Industrial vs. Consumer Needs

Industrial applications often prioritize safety functionality. "Deadman switches" utilize momentary logic, meaning the machine only runs while the operator actively presses the switch. If they release it, the machine stops. In contrast, consumer power supplies use latching switches that stay on until manually turned off.

Illumination also varies. AC applications typically use neon lamps, which can flicker but are robust at high voltages. DC applications favor LEDs, which require precise current limiting resistors. Reliable manufacturers offer independent circuit illumination, allowing the light to act as a dashboard indicator (lit when the system is ready) rather than just a power status light.


Sector-Specific Requirements

In the appliance sector, specifically for refrigeration and heating, humidity is the enemy. A switch in these environments requires high dielectric strength to prevent current leakage across the damp surface. For automotive and marine sectors, the focus shifts to UV resistance. The sun’s rays can degrade plastic housings, making them brittle. Switches here must be stabilized against UV radiation and optimized for 12V or 24V DC systems.


Customization Parameters for OEMs

When working with a Rocker Switch manufacturer, you can request modifications to streamline production.

Common customizations include:

  • Laser Etching: Unlike pad printing, which rubs off over time, laser etching permanently marks functions (e.g., "Pump," "Fan") onto the actuator.

  • Panel Cutout Dimensions: While 19x13mm is a common standard, oversized cutouts can accommodate gloved operation.

  • Pre-Wired Harnesses: Receiving switches with wires and connectors already attached reduces labor time on your assembly line.



Sourcing Intelligence: Pricing and Manufacturer Selection

Navigating the supply chain requires balancing unit cost against risk. The lowest price often carries hidden liabilities.


Analyzing Pricing Rocker Switch Variables

When evaluating the pricing rocker switch quotes, consider the "Cycle Life Cost." A switch rated for 10,000 electrical cycles is cheaper upfront than one rated for 50,000 cycles. However, if your product is used ten times a day, the cheaper switch will fail in under three years. The cost of a single warranty return or field repair often exceeds the savings of buying the cheaper component by a factor of 100.

Certification is another cost driver. Marks from agencies like UL, cUL, VDE, ENEC, and CQC indicate that the switch has undergone rigorous third-party testing. Using uncertified switches renders your final product ineligible for safety listings in major markets.


Manufacturer Vetting Checklist

Before selecting a partner, evaluate their capabilities beyond the brochure:

  1. Vertical Integration: Does the supplier produce their own metal stampings and tooling? Manufacturers who control their supply chain can resolve quality issues faster than those who simply assemble purchased parts.

  2. Lab Testing Capabilities: A reputable factory should have in-house equipment for the Glow Wire Test (IEC 60695) and Salt Spray testing. This proves they verify batch quality regularly.


Supply Chain Considerations

Finally, ask about flexibility. If you need a specific color or voltage rating, what is the Minimum Order Quantity (MOQ)? High MOQs can stifle innovation. Look for suppliers willing to support pilot runs for custom orders.


Conclusion

A rocker switch is more than a plastic commodity; it is a complex electromechanical device. The geometry of the internal spring, the metallurgy of the contacts, and the quality of the housing polymer define the gap between a reliable product and a frustrating field failure. When specifying components for production, you must look deeper than the external aesthetics.

Prioritize electrical endurance and safety certifications. Ensure the switch logic matches your circuit redundancy needs. By treating the switch as a critical engineering component rather than an afterthought, you protect your brand's reputation for quality. We encourage you to request detailed datasheets and load-life curve data from your supplier before finalizing your Bill of Materials.


FAQ


Q: How do I know if I need a DPST or SPST rocker switch?

A: Use SPST if you only need to break a single line (like a light). Use DPST if you need to isolate the device completely from the power source by cutting both the Live and Neutral wires simultaneously. This is common in 240V appliances or heavy equipment where leaving a neutral line connected presents a safety hazard.


Q: Why does my illuminated rocker switch flicker?

A: Flickering usually indicates a poor connection at the Ground/Earth terminal (Pin 3). Ensure the ground wire is secure. If using a neon lamp (AC), flickering can also occur if the voltage drops below the lamp’s ignition threshold. For LED switches, check if the resistor value matches your supply voltage.


Q: Can a standard rocker switch handle DC current?

A: Not always. DC current does not cross zero volts like AC, meaning arcs are harder to extinguish. A switch rated for 20A AC might only be safe for 10A DC. You must check the datasheet for the specific DC rating. Using an AC-only switch for high DC loads leads to contact welding.


Q: What causes a rocker switch to fuse/weld in the ON position?

A: This is typically caused by "inrush current." Motors and capacitive loads draw a massive spike of current (up to 10x the running current) when first turned on. If this spike exceeds the switch's rating, it creates an arc that melts the contacts together. You need a switch with a high inrush rating or silver alloy contacts.
