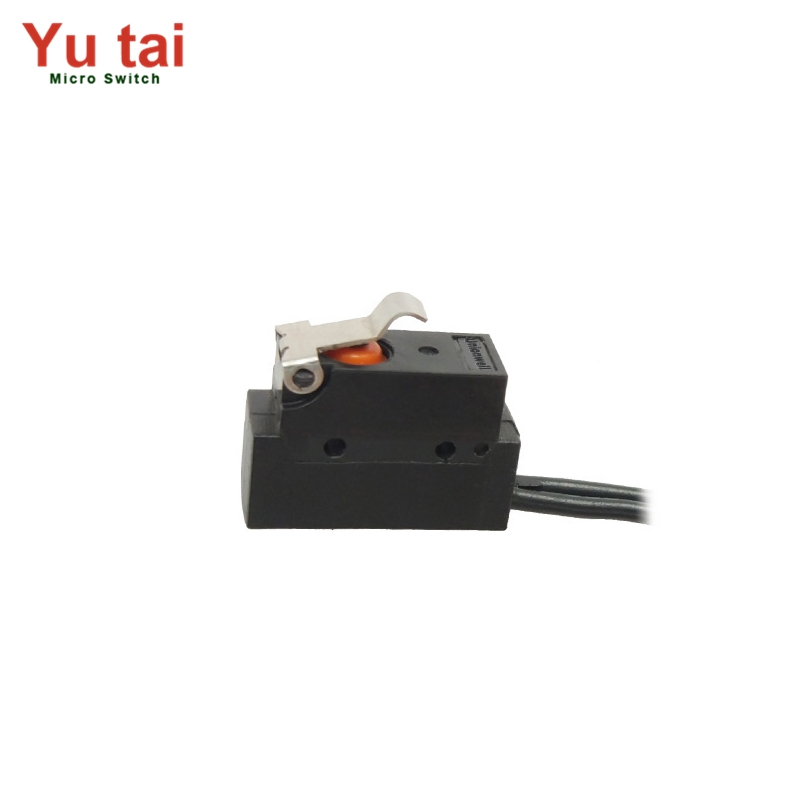

Left Side Outlet (300) with Handle

The Left Side Outlet (300) with Handle represents a pinnacle of precision engineering, designed to seamlessly integrate into the most demanding industrial and commercial architectures. When actuated, the meticulously crafted handle mechanism provides a crisp, tactile snap—a distinct auditory and physical confirmation of a secure electrical connection. Encased in a robust, sealed housing, the switch feels remarkably solid and resilient, built to withstand the rigorous vibrations and impacts of continuous mechanical operation without degradation. By incorporating this component into your assembly lines, you instantly elevate the reliability of your end products, eliminating the frustration of premature switch failure. The specialized left-side wire outlet configuration resolves complex spatial routing challenges, allowing your engineering teams to design sleeker, more compact devices without compromising on internal wire management. Whether deployed in high-voltage automotive systems or sensitive diagnostic machinery, this switch ensures uninterrupted performance, safeguarding your brand's reputation for quality and minimizing costly field replacements.

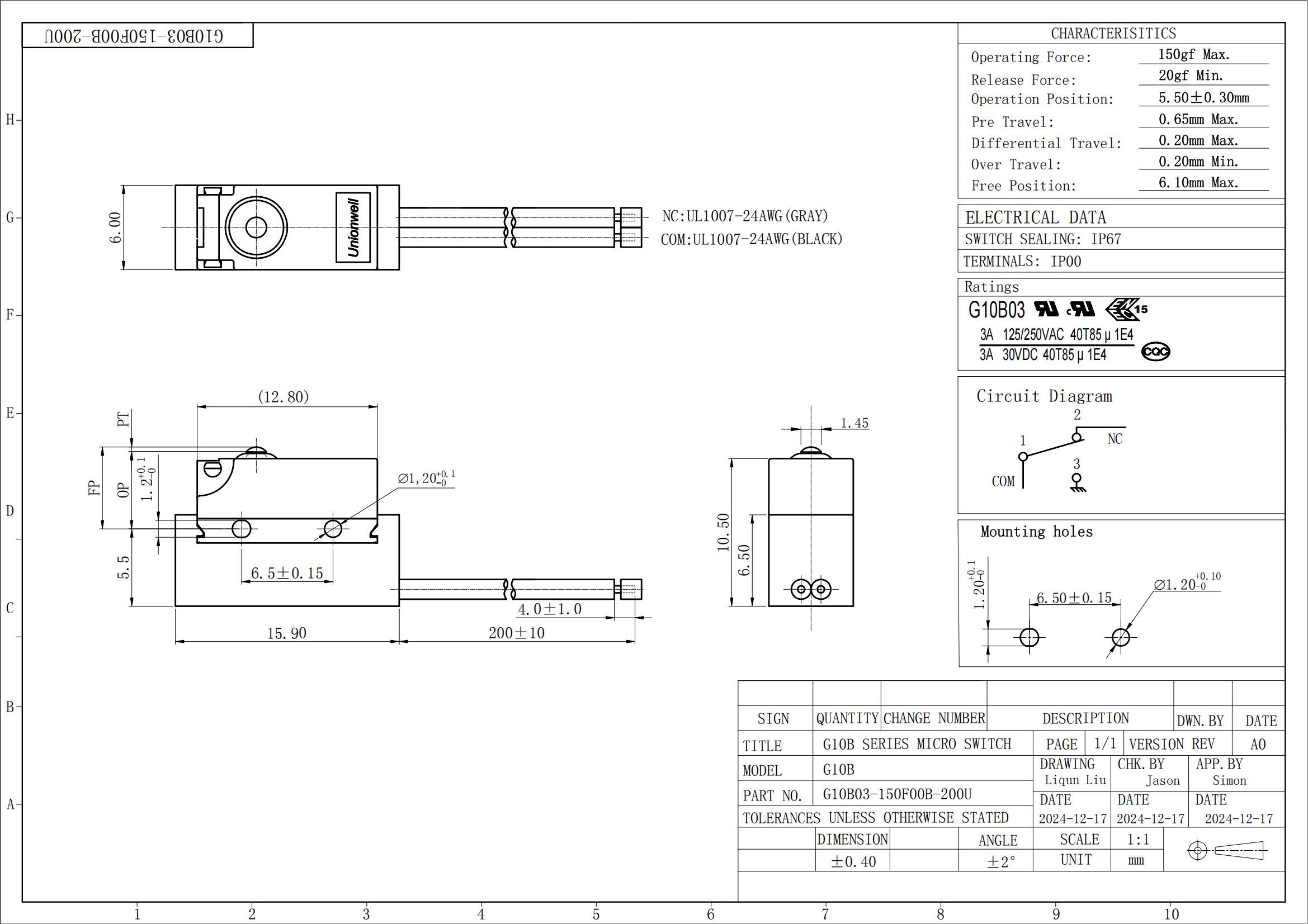

Product Specifications

Key Features & Highlights

Discover the distinct advantages that make the Left Side Outlet (300) with Handle the preferred choice for sophisticated engineering projects. Every element of this switch has been refined to deliver flawless execution, ensuring your final products operate with absolute precision.

• Tactile Precision: Delivers a sharp, responsive click that guarantees immediate circuit engagement, enhancing the operational feel of the end product.

• Spatial Optimization: The unique left-side outlet design drastically reduces wire strain and simplifies routing in ultra-compact enclosures.

• Unwavering Stability: Constructed with premium-grade materials that resist physical wear, maintaining structural integrity even under constant vibration.

• Seamless Integration: Perfectly engineered dimensions allow for rapid installation on assembly lines, cutting down production time and labor costs.

• Acoustic Control: The internal mechanism is meticulously tuned to minimize acoustic resonance, making it ideal for noise-sensitive environments.

Advanced Performance Dimensions

Certifications & Compliance

Navigating the complexities of international market entry requires components that meet the strictest global safety standards. This micro switch acts as your passport to major markets, completely eliminating compliance bottlenecks during your product certification phase.

• UL Certification: Guarantees adherence to rigorous North American electrical safety protocols, ensuring immediate market acceptance.

• ENEC & CQC Approved: Fully compliant with European and Asian safety directives, facilitating frictionless global distribution.

• Risk Mitigation: Utilizing pre-certified components drastically reduces your internal testing costs and accelerates your time-to-market.

Durability & Extreme Weather Resistance

Industrial and automotive applications demand components that refuse to fail, regardless of the environmental punishment they endure. This switch is engineered to outlast the equipment it powers, providing a lifetime of reliable actuation.

• Exceptional Mechanical Longevity: Tested to endure an astonishing 1,000,000 mechanical cycles, virtually eliminating the need for maintenance replacements.

• Extended Electrical Life: Safely handles up to 10,000 electrical cycles under full load, preventing contact welding or degradation.

• Broad Temperature Tolerance: Operates flawlessly in freezing -40℃ conditions and blistering +85℃ heat, maintaining its crisp tactile feedback without material embrittlement.

Protection Level & Quality Control

In environments plagued by moisture, dust, and particulate matter, standard switches quickly succumb to internal contamination. Our subminiature sealed micro switch features an impenetrable barrier, backed by a relentless quality assurance protocol.

• Hermetic Sealing Technology: The meticulously sealed housing prevents the ingress of microscopic dust and liquids, safeguarding the internal contact points.

• 100% Factory Tested: Every single unit undergoes rigorous automated testing before leaving the facility, ensuring zero-defect delivery to your assembly lines.

• ISO-Standard Manufacturing: Produced under strict quality management systems, guaranteeing absolute consistency across millions of units.

Precise Fit & Industry Applications

Designing for modern technology often means working with unforgiving spatial constraints. The specialized architecture of this switch, specifically its left-side wire routing and custom handle, resolves the most complex mechanical fitting challenges.

• New Energy Vehicle Charging Guns: The bottom/left wire outlet perfectly aligns with the ergonomic curves of EV charging handles, optimizing internal space.

• Advanced Medical Equipment: Delivers the precise actuation required for life-saving diagnostic devices, where space is limited and failure is not an option.

• Custom Automated Machinery: The integrated handle provides a reliable mechanical interface for cam-actuated limit sensing in dense robotic assemblies.

Deep Customization & OEM/ODM Capabilities

Standard off-the-shelf components rarely meet the nuanced requirements of cutting-edge product development. We empower your engineering teams with comprehensive customization services, transforming standard switches into bespoke solutions.

• Pre-Wired Solutions: Available with custom wire lengths, gauges, and connector types pre-installed, slashing your internal assembly time.

• Tailored Actuator Handles: We can modify the handle's length, angle, and operating force to match your exact mechanical requirements.

• Housing and Terminal Modifications: Flexible manufacturing allows for adjustments to the switch body and contact terminals, ensuring a flawless fit into your proprietary designs.

Factory Strength & Supply Chain Security

Partnering with a robust, direct-source manufacturer is critical for maintaining your production momentum and protecting your profit margins. Since 2016, Yutai Electronics has built a reputation for unshakeable supply chain reliability.

• Direct Source Advantage: By eliminating intermediaries, we provide premium-grade components at highly competitive price points, maximizing your procurement budget.

• Massive Production Capacity: Our advanced automated facilities guarantee stable, on-time delivery even for the most demanding volume requirements.

• Consistent Material Sourcing: We maintain strategic reserves of raw materials to buffer against global supply chain fluctuations, ensuring your lines never stop.

After-Sales & Technical Support

Procurement is only the beginning of the partnership. We stand behind our products with a comprehensive support infrastructure designed to minimize your operational risks and accelerate your development cycles.

• Rapid Sample Provision: Expedited sample orders allow your engineers to validate form, fit, and function without project delays.

• Dedicated Engineering Support: Direct access to our technical team for integration guidance, troubleshooting, and custom design consultations.

• Comprehensive Warranty Protection: Robust after-sales policies provide peace of mind, ensuring any rare anomalies are resolved instantly.

Why Choose Us

Selecting the right component partner fundamentally impacts the success of your entire product line. We are dedicated to elevating your manufacturing capabilities through relentless innovation, uncompromising quality, and deeply integrated support. Our commitment extends far beyond simply supplying parts; we aim to be an extension of your engineering and procurement teams.

• Proven Industry Expertise: Years of specialized focus on precision switch technology ensures we understand the unique challenges of your sector.

• Agile Responsiveness: Streamlined internal processes mean faster quote turnarounds, rapid prototyping, and flexible adjustment to your changing needs.

• Uncompromising Material Selection: We source only the highest-grade conductive alloys and resilient polymers to guarantee long-term performance.

• Global Logistics Network: Optimized shipping protocols ensure your components arrive safely and strictly on schedule, regardless of your facility's location.

• Continuous Innovation: We heavily reinvest in research and development to bring you the latest advancements in miniaturization and sealing technology.

FAQ

Find answers to the most common technical inquiries regarding the Left Side Outlet (300) with Handle to assist your engineering and procurement decisions.

Q1: How does the left side outlet configuration benefit high-density enclosures?
A1: The left side wire routing allows the cable to exit parallel to the mounting surface, significantly reducing the required clearance depth. This prevents wire crimping and stress concentration, making it ideal for ultra-slim devices and tightly packed automotive charging handles.

Q2: Can the operating force of the handle be customized for our specific application?
A2: Yes, our engineering team can adjust the internal spring tension and handle geometry to deliver the precise actuation force and travel distance your mechanism requires, ensuring optimal tactile feedback and mechanical synchronization.

Q3: What specific measures ensure the switch maintains its protection rating in extreme environments?
A3: The switch utilizes an ultrasonic welded housing and proprietary elastomer gaskets around the actuator pin and wire exits. This hermetic sealing completely blocks moisture and particulate ingress, maintaining integrity even during rapid temperature cycling from -40℃ to +85℃.

Q4: Are the pre-wired options compliant with UL and ENEC standards?
A4: Absolutely. When providing pre-wired solutions, we utilize only UL/ENEC certified wire stocks and maintain strict quality control over the soldering and sealing processes. The entire sub-assembly retains full compliance with international safety regulations.

Q5: What is the typical lead time for custom modifications to the G10B03-150F00B-200U model?
A5: Standard sample modifications can typically be engineered and dispatched within a few days. For full-scale volume production of customized units, our agile manufacturing lines ensure rapid ramp-up, with exact lead times tailored to your specific order volume and complexity.
