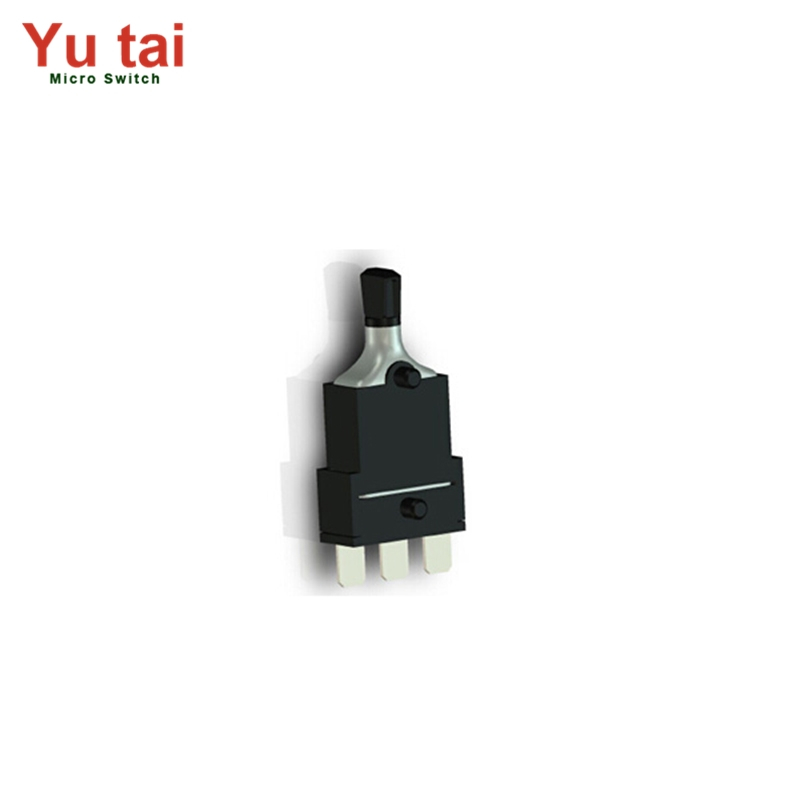

The G16 waterproof switch has the following features: High protection level: It adopts IP67 protection level design, which can completely prevent dust from entering, and can remain functional after being immersed in one meter deep water for 30 minutes. Strong reliability: The internal structure adopts a sealed design, which can effectively prevent water from intruding and ensure normal operation in harsh environments.
Long life: The mechanical life can reach 100,000 times, meeting the long-term use requirements in general use scenarios.
Diverse specifications: There are a variety of terminal types and operating handle types to choose from, which can meet the installation and use requirements of different equipment. Sensitive triggering: As a micro switch, its internal structure is simple, the contact point area is large, it can achieve fast response, and it can also accurately trigger small external forces.
Wide application: It is suitable for a variety of equipment such as dishwashers, air conditioning fans, eye massagers, bread machines, balance cars, electronic toy guns, etc.
Standard | Specification |
ENEC/CQC | 0.1A 12VDC |
Operating Temperature | -40℃∽+85℃ |
Mechanical Life | 100000 cycles |
Electrical Life | 100000 cycles |
