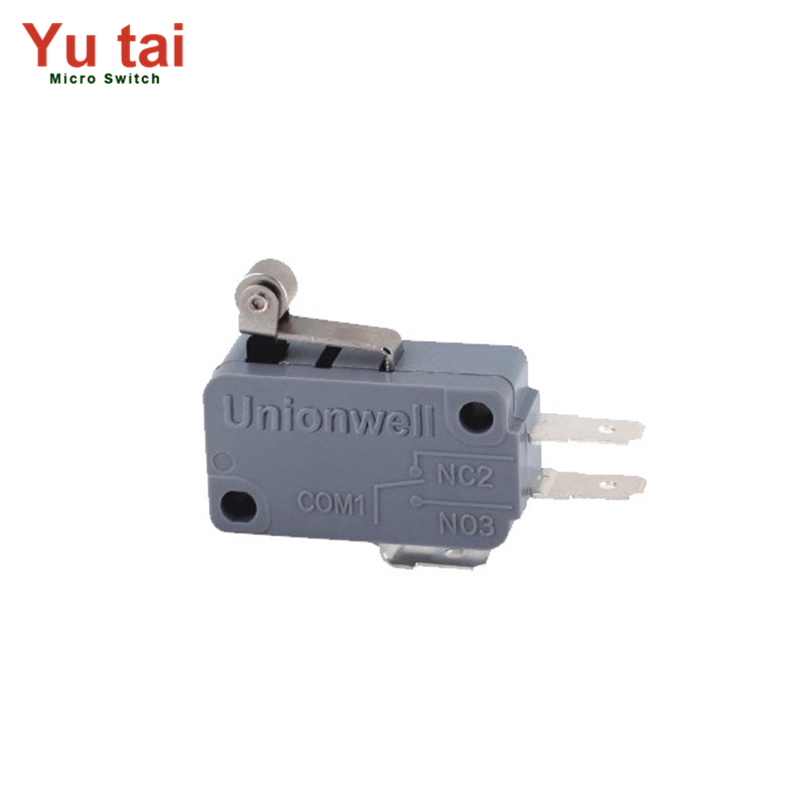

Specifying the wrong environmental controls leads to severe consequences. You either face premature equipment failure by under-specifying components or waste budget by over-specifying them. While Ingress Protection (IP) ratings look like simple standardized codes, their practical application proves much more complex. You must account for specific limitations regarding pressure, depth, and exposure duration. A simple two-digit rating code rarely tells the whole operational story. We aim to define exact environmental thresholds for IP65, IP67, and IP68 Waterproof Switches. This objective helps engineers and procurement teams match components exactly to environmental conditions. You can achieve this critical alignment without sacrificing long-term system reliability. We will explore laboratory standards versus real-world performance throughout this analysis. You will learn how to navigate these technical nuances confidently and accurately.
The first digit "6" across IP65, IP67, and IP68 indicates total protection against dust ingress.
IP65 waterproof switches survive low-pressure water jets (rain, standard washdowns) but will fail if submerged.
IP67 switches withstand temporary submersion (up to 1 meter for 30 minutes) but are not designed for continuous underwater use.
IP68 switches handle continuous submersion, but exact depth and duration limits are explicitly defined by the manufacturer, not a universal standard.
A switch's IP rating often applies only to the front panel; the rear terminals may require secondary sealing.
Engineers must ground component evaluations in objective testing criteria. The official IEC 60529 standard provides exactly this foundation globally. It dictates the precise testing conditions for electrical enclosures. You cannot rely on marketing claims alone for critical systems. Understanding this baseline is mandatory for safe component selection.
You need to dissect the anatomy of these numerical codes. The first digit addresses solid objects and airborne dust. The "6" in all these ratings guarantees a vacuum-tested, dust-tight seal. No solid matter can penetrate the internal mechanism. Your internal contacts remain free of abrasive particles. The second digit measures liquid ingress protection capabilities. It is crucial to note the scale is not strictly linear. Meeting IP67 standards does not automatically guarantee passing IP66 tests. High-pressure jets stress seals differently than static submersion. However, many components are dual-rated to cover both scenarios seamlessly.
Testing realities often diverge significantly from field deployments. IEC 60529 relies on highly controlled laboratory tests. Facilities use clean, room-temperature fresh water for these evaluations. Real-world conditions introduce much more aggressive variables. You must account for saltwater exposure in marine settings. Chemical washdowns degrade materials in industrial food processing. Rapid temperature fluctuations create internal enclosure vacuums. These harsh elements require additional engineering evaluation beyond the basic laboratory rating.
You need clear boundaries to select the right Waterproof Switches. Each rating translates to highly specific physical thresholds. We must separate theoretical protection from practical deployment limits.
The testing standard for IP65 uses a precise 6.3mm nozzle. It delivers 12.5 liters of water per minute consistently. The pressure remains steady at 30 kPa from a distance of 3 meters. This rating ensures component survival against targeted, low-pressure spray. It blocks water approaching from any standard angle.
In practical applications, it proves ideal for outdoor structures. You will see it frequently on basic industrial machinery. Marine deck panels utilize it for general weather resistance. These environments face weather exposure but avoid submersion entirely. It handles heavy rain storms effectively without short-circuiting.
IP67 tests push components further into demanding environments. The standard requires submersion in water up to 1 meter deep. The duration lasts exactly 30 minutes in the test tank. No harmful quantity of water can enter during this specific window. The internal electrical contacts must remain completely dry.
This rating proves critical for highly mobile gear. Equipment prone to accidental dropping in water relies on it heavily. Temporary flooding scenarios necessitate this specific protection level. You often see it in portable military gear and agricultural equipment. Keep in mind, IP69K serves better for high-temperature washdowns. IP67 simply buys you time during unexpected water exposure.
IP68 denotes continuous submersion beyond the 1-meter mark. However, a crucial regulatory caveat exists here. The exact depth and time are negotiated between the manufacturer and user. You might see IP68 certified at 2 meters for 24 hours. Another component might offer 10 meters for 2 weeks. The standard demands the manufacturer specify these exact limits clearly.
These custom limits apply directly to practical usage. You need this rating for submerged pool equipment controls. Underwater ROVs depend entirely on strict IP68 specifications. Permanent outdoor green energy arrays also rely on it. Solar inverters placed in known flood zones require this robust sealing. It offers ultimate peace of mind for subsurface deployments.
Engineering teams need structured methodologies for component selection. You must align component capabilities closely with environmental realities. Guesswork leads to catastrophic field failures or inflated budgets.
Start your process with a baseline environment assessment. Do not default to IP68 just to feel safe. Over-specifying drains project resources unnecessarily. Instead, evaluate the actual field risks methodically. Compare the likelihood of pooling water against pressurized spray. Analyze how often the equipment faces human interaction during weather events.
We can apply scenario mapping to simplify choices.
Scenario A (Outdoor exposed, no standing water): IP65 proves highly sufficient. It remains cost-effective while preventing rain ingress completely.
Scenario B (Portable devices): Potential drops in puddles demand more robust seals. IP67 mitigates the risk of catastrophic short circuits during brief accidents.
Scenario C (Subsurface deployment): Severe flood risks necessitate IP68 protection. You must verify the manufacturer's specific depth rating before purchasing.
Consider the cost-to-benefit ratio during the design phase. Higher ratings require tighter manufacturing tolerances overall. They demand specialized O-rings and complex potting compounds. These additions increase the unit cost predictably. They can also affect tactile feedback by increasing the required actuation force. You must balance operator usability against environmental protection.
Ingress Protection Scenario Comparison
Environment Scenario | Recommended Rating | Primary Risk Factor | Testing Threshold Focus |
|---|---|---|---|
Exposed Outdoor Kiosk | IP65 | Heavy rain and splashing | Low-pressure water jets |
Portable Handheld Device | IP67 | Accidental drops in water | 30-minute temporary submersion |
Underwater ROV System | IP68 | Continuous deep water pressure | Manufacturer-defined depth/time |
Selecting a highly rated component does not guarantee overall system survival. Engineers often encounter hidden vulnerabilities during physical implementation. A holistic design approach prevents these costly mistakes.
Address the common misconception regarding total enclosure protection. People often assume an IP67 component is entirely waterproof everywhere. Usually, only the actuator above the panel carries the rating. The solder terminals behind the panel remain entirely vulnerable. The enclosure itself must be sealed properly during assembly. A front-panel rating means nothing if water enters from the rear chassis.
Seal degradation over time presents another significant implementation risk. Environmental factors relentlessly attack elastomers and plastics.
UV exposure hardens silicone materials, causing micro-cracks.
Temperature cycling creates internal vacuums, actively drawing water inward.
Harsh chemicals and cleaning agents dissolve standard Buna-N seals.
These elements effectively lower the IP rating over the component's lifecycle. You must anticipate this material degradation during the initial design phase. Regular maintenance schedules should include seal inspections.
Actuation under water introduces severe mechanical complications. Pressing an actuator while it is submerged changes dynamic pressure. This sudden internal force can breach an IP67 seal instantly. Liquid forces its way past the moving O-ring. IP ratings generally apply to the component in a purely static state. If operators must actuate underwater, you need highly specialized marine-grade hardware.
Vetting manufacturers ensures component reliability in the field. You need strict, objective criteria to evaluate potential suppliers. A supplier's quality control directly impacts your final product.
Check material compatibility first and foremost. Assess the external body and internal seal materials carefully. Common options include stainless steel, reinforced nylon, and specific elastomers. These must match the operating environment's chemical and thermal realities. A highly rated seal fails quickly if incompatible fluids degrade its chemistry. Ask the supplier for chemical resistance charts.
Look for secondary certifications during your evaluation. These validate component ruggedness beyond simple water ingress. Accompanying standards like UL provide essential safety assurances. MIL-STD ratings verify resistance to extreme shock and continuous vibration. These markers indicate superior manufacturing quality and rigorous internal testing procedures. They separate premium components from budget alternatives.
Demand documentation transparency from your chosen vendors. Trustworthy manufacturers supply highly detailed technical datasheets. They specify exact IP68 test parameters without ambiguity. They note depth and duration limitations clearly in the documentation. They also provide precise installation torque requirements. Proper torque guarantees the panel seal functions exactly as intended. Ignoring torque specs nullifies the ingress protection.
Choosing between IP65, IP67, and IP68 is fundamentally about alignment. You must match laboratory test conditions with anticipated real-world failure modes. Over-specifying drains resources, while under-specifying invites catastrophic system failure. Understanding the exact thresholds of dust and liquid ingress ensures optimal design choices. You protect both the hardware and the operator through precise specification.
Engineers should review operational environment data thoroughly before selecting components. Consult manufacturer datasheets for precise IP68 definitions and limitations. Always request physical samples to test tactile feedback under fully sealed conditions. Verify that actuation forces remain ergonomic for the end user. Applying this analytical rigor ensures your systems remain protected, responsive, and highly reliable.
A: Only temporarily up to 1 meter. It is explicitly not designed for continuous underwater operation. The seal will eventually fail if subjected to constant hydrostatic pressure over prolonged periods. Use it strictly as a safeguard against accidental drops or temporary floods.
A: No, it is defined by a specific depth and time limit provided by the manufacturer. It also assumes fresh water testing unless stated otherwise. Environmental factors, UV exposure, and material aging will eventually degrade the seal over time.
A: It prevents rain and splash ingress effectively. However, salt corrosion requires specific material grades like 316 stainless steel. Material compatibility against salt fog remains entirely independent of the basic IP dust and water rating.
A: Yes, proper installation is mandatory. You must ensure correct O-ring compression and appropriate panel thickness. Failing to meet the manufacturer's specific torque specifications will void the stated IP rating entirely during field use.
