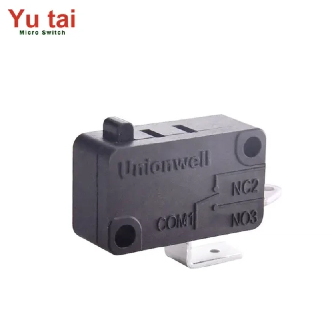

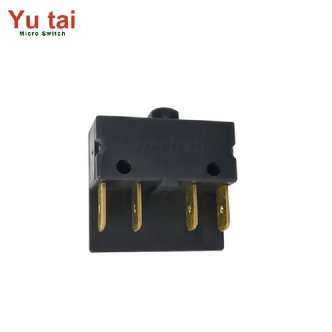

Micro switches are small, highly sensitive electromechanical devices used extensively across various industries for precise control of electrical circuits. Also known as snap-action switches, micro switches are valued for their rapid response and reliable switching capabilities in compact forms.
First invented in the early 20th century, micro switches revolutionized electronic control systems by providing consistent and dependable on/off control in machines and devices. Their importance has grown alongside technological advances, as automation, consumer electronics, medical equipment, and automotive industries rely on their accuracy and durability.
Today, micro switches serve critical roles in safety devices, household appliances, industrial machines, automotive systems, and many other applications. Their compact size and fast switching action make them ideal for scenarios requiring precise electrical control with minimal mechanical movement.
Understanding how micro switches function starts with their structure. Despite their small size, micro switches contain several key components:
Actuator: The external part that receives physical input (push, press, or lever movement). Actuators come in different forms such as buttons, levers, rollers, or plungers depending on the application.
Contacts: Conductive elements inside the switch that open or close the circuit. These are usually made of durable metals like silver or gold alloys for excellent conductivity and wear resistance.
Spring Mechanism: An internal spring provides the snap-action behavior, enabling the switch to change states quickly and precisely when the actuator is triggered.
Housing: The protective casing that encloses the internal components, often made from plastic or metal to shield the switch from environmental factors.
Micro switches vary by the type of actuator used. For example, a lever actuator has a small arm that the mechanism presses against, while a button actuator is a simple push-button design. The choice depends on the required sensitivity, mechanical setup, and space constraints.
High-quality micro switches often use materials that ensure long-lasting operation, such as corrosion-resistant metals for contacts and robust, heat-resistant plastics for housing.
At the core of every micro switch is its distinctive snap-action mechanism, which sets it apart from conventional switches. Unlike traditional switches that slowly open or close contacts, micro switches employ a spring-loaded system that rapidly “snaps” contacts between two positions once the actuator moves beyond a specific point. This fast switching action is crucial for reliability and precision.
When an external force is applied—such as pressing a button, pushing a lever, or rolling a roller—the actuator moves inward. This motion compresses an internal spring connected to the switch’s contact mechanism. The actuator’s design varies based on the application but always serves as the initial mechanical trigger.
As the actuator compresses the spring, mechanical energy accumulates. The spring resists the actuator’s movement until it reaches a predetermined threshold, storing potential energy needed for the snap action.
Once the actuator reaches this critical point, the stored energy in the spring is suddenly released. This causes the internal electrical contacts to rapidly transition from one state to the other—either from open to closed or vice versa—in a fraction of a second.
This rapid contact movement instantly changes the electrical circuit’s state. If the contacts close, current flows and powers the connected device. If they open, the circuit breaks, stopping the electrical flow. This precise switching eliminates delay and enhances operational safety.
When the external force on the actuator is removed, the spring pushes the actuator back to its original position, snapping the contacts back to their initial state. The switch is then ready for the next activation.
Reduced Contact Bounce: The rapid switch reduces the “bouncing” effect, which can cause erratic electrical signals.
High Precision: Ensures consistent operation even with varying mechanical forces or actuator speeds.
Extended Durability: Minimizes wear and tear on contacts, prolonging the switch’s life.
Fast Response: Ideal for safety-critical applications such as interlocks, limit switches, and machine controls where timing is crucial.
This efficient working principle is why micro switches are trusted for reliable and precise control across numerous industries.
Micro switches come in multiple varieties tailored for different environments and applications:
Basic Micro Switches: The most common, featuring a simple actuator and basic housing for general-purpose use.
Sealed Micro Switches: Designed to protect internal components from dust, moisture, and contaminants. Often used in harsh or outdoor environments.
Waterproof Micro Switches: With special sealing and housing to prevent water ingress, suitable for wet or humid locations.
High-Temperature Micro Switches: Built with heat-resistant materials to function reliably in elevated temperatures, used in ovens or industrial machinery.
Actuator Variations: Different actuator types include lever, roller, button, plunger, or whisker actuators, each offering unique mechanical advantages.
Mounting Styles: Panel mount, PCB mount, or cable connection options provide flexibility in how the micro switch integrates into a system.
This diversity allows micro switches to be customized for almost any industry requirement, whether it’s a home appliance, an automotive safety system, or complex industrial automation.
The versatility of micro switches means they appear in countless products and industries:
Household Appliances: Used in microwaves, refrigerators, washing machines, and coffee makers for door detection, level sensing, or control buttons.
Automotive: In gear shifters, brake systems, seat belts, and window controls for precise, fail-safe electrical signals.
Industrial Automation: Machine safety guards, conveyor systems, and robotic arms utilize micro switches for position sensing and control.
Medical Devices: Critical for equipment like infusion pumps and diagnostic machines where precise electrical control is paramount.
Consumer Electronics: Printers, vending machines, and gaming controllers incorporate micro switches for tactile feedback and reliable input detection.
Power Tools: Switches for drills, saws, and grinders ensure reliable on/off control with long durability.
Their ability to deliver fast, reliable switching action in a compact form makes micro switches essential in many safety-critical and performance-driven applications.
Choosing micro switches offers numerous benefits:
Compact Size and High Sensitivity: Ideal for applications with limited space and requiring rapid response to small mechanical changes.
Durability and Long Service Life: With mechanical lives often exceeding one million cycles, they provide consistent performance over time.
Fast and Reliable Switching: Snap-action mechanisms reduce contact bounce and ensure accurate circuit control.
Wide Operating Environments: Available in sealed or ruggedized versions, micro switches operate reliably across harsh temperatures, humidity, and dusty or wet conditions.
Cost-Effectiveness: Their simple design and reliable performance translate to low maintenance and replacement costs.
Customization: Variety in actuator types and mounting options allows micro switches to be tailored to specific applications and industry standards.
Micro switches are compact yet powerful components essential to modern electronics and industrial systems. Their unique snap-action mechanism provides precise, fast, and reliable switching, even in challenging environments. For engineers, manufacturers, and users looking to enhance device performance and safety, understanding how micro switches operate is critical. Choosing the right micro switch—whether basic, sealed, or specialized—tailored to specific applications and operating conditions ensures durable and dependable performance.
