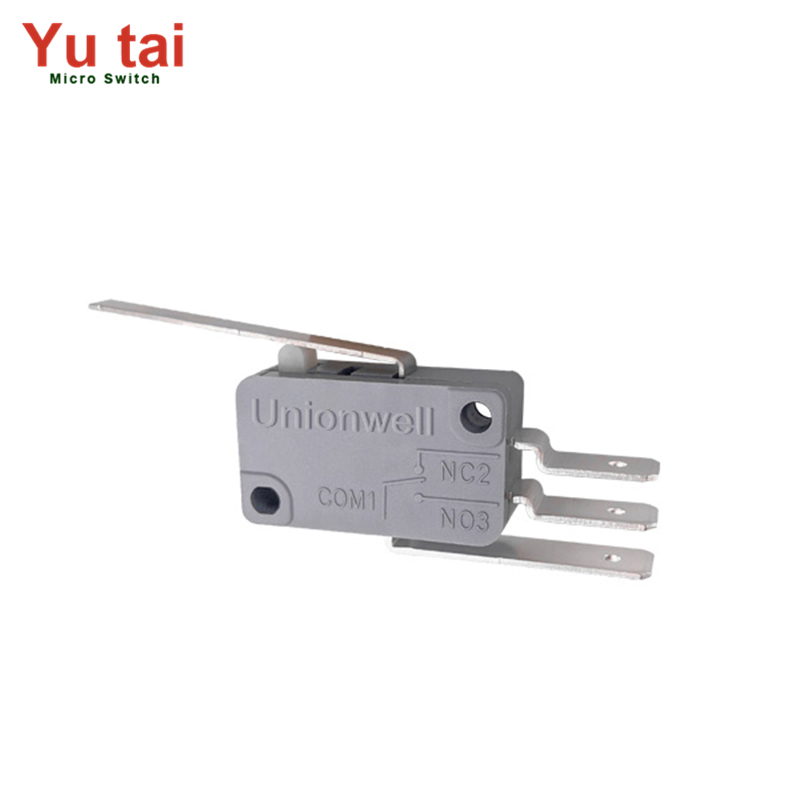

The G5 Series Basic Micro Switch is a fundamental component designed and manufactured by Ningbo Yutai Electronics Co., Ltd., a professional producer of electronic switches with expertise in micro switches, door switches, and waterproof rocker switches since 2016. This series is engineered to meet the demands of various industrial and consumer electronics scenarios, combining functional design with practical performance to serve as a dependable choice for engineers and manufacturers.
Additionally, various types of operating handles are provided, catering to different actuation requirements across applications, further enhancing its versatility.
Model | Standard | Specification |
---|---|---|
G5S05 | ENEC/CQC | 0.1A 125/250VAC, 48VDC; 5(2.5)A 125/250VAC |
G5S05 | UL | 0.1A 125/250VAC, 48VDC; 5A 125/250VAC, 48VDC; 1/10HP |
G5T08 | ENEC/CQC | 8(10)A 250VAC |
G5T08 | UL | 10.1A 250VAC; 1/2HP |
G5T10 | ENEC/CQC | 10(3)A 125/250VAC; 10(4)A 250VAC |
G5T10 | UL | 10A 125/250VAC, 1/2HP; 11A 125/250VAC, 1/3HP |
G5T16 | ENEC/CQC | 16(4)A 250VAC |
G5T16 | UL | 16A 125/250VAC; 1/2HP |
G5T22 | ENEC/CQC | 22(8)A 250VAC |
G5T22 | UL | 22A 125/250VAC; 1HP |
G5T26 | ENEC/CQC | 26(10)A 250VAC |
Operating Temperature | - | -25℃∽+85℃; -25℃∽+125℃; -25℃∽+150℃ |
Mechanical Life | - | 100,000 cycles |
Electrical Life | - | 50,000 cycles |
Medical devices rely on its reliability to maintain consistent operation in critical applications, while automotive electronics, including car gear shift systems, utilize its durability to withstand frequent use. Power tools, such as screw guns and spray guns, and instrumentation equipment also leverage the G5 Series for its ability to perform under varying operational conditions.
Beyond its technical specifications, the G5 Series Basic Micro Switch is backed by Yutai Electronics’ commitment to quality. The company’s focus on designing and manufacturing electronic switches ensures that each unit undergoes rigorous testing to meet industry standards. With a range of terminal connections and operating handles, the series offers flexibility for custom integration, reducing the need for extensive modifications in assembly processes.
