1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.
2: High durability, high reliability.
3: Equipped with global safety certifications.
4: Complete range of terminal connections.
5: Available in various temperature grades: 25T85, 25T125, 25T150.
6: Fitted with various types of operating handles.
7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.
Availability: | |
---|---|
Quantity: | |

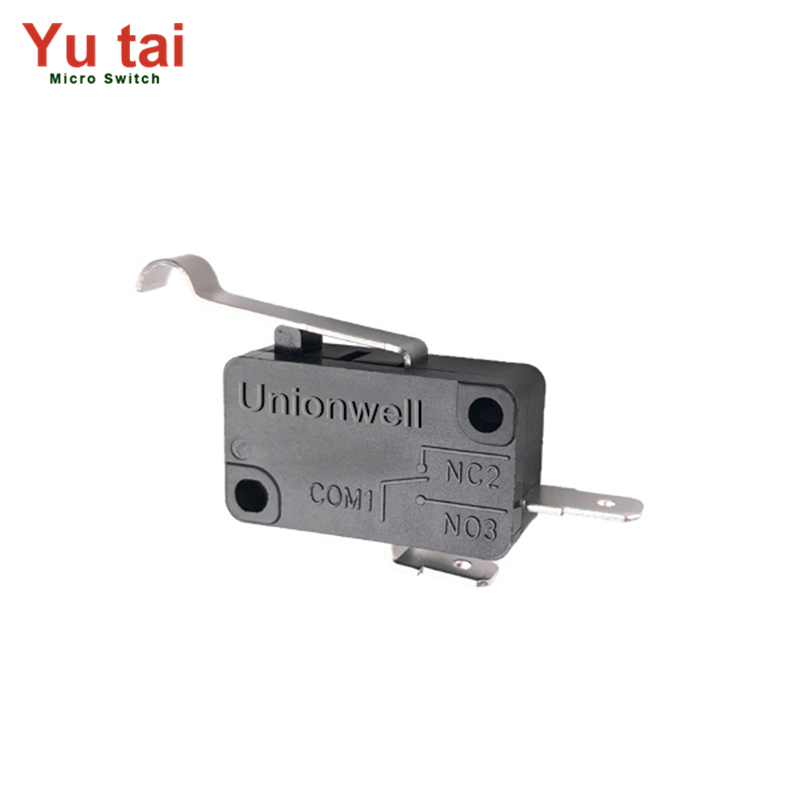

The G5 Series Basic Micro Switch is part of the micro switch category, which includes various models such as G10B/G9 Subminiature Sealed Micro Switch, G5W11 Large Waterproof And Dustproof Micro Switch, and others. As a basic type, the G5 Series is designed to meet standard switching requirements across multiple applications, combining practical features with consistent performance.
A complete range of terminal connections is available, allowing for flexible integration into different electronic systems. Additionally, the G5 Series comes in various temperature grades, including 25T85, 25T125, and 25T150, making it adaptable to environments with varying temperature conditions. Various types of operating handles are also offered to accommodate different operational needs.
Model | Standard | Specification |
---|---|---|
G5S05 | ENEC/CQC | 0.1A 125/250VAC 48VDC 5(2.5)A 125/250VAC |
G5S05 | UL | 0.1A 125/250VAC 48VDC 5A 125/250VAC 48VDC 1/10HP |
G5T08 | ENEC/CQC | 8(10)A 250VAC |
G5T08 | UL | 10.1A 250VAC 1/2HP |
G5T10 | ENEC/CQC | 10(3)A 125/250VAC 10(4) 250VAC |
G5T10 | UL | 10A 125/250VAC 1/2HP 11A 125/250VAC 1/3HP |
G5T16 | ENEV/CQC | 16(4)A 250VAC |
G5T16 | UL | 16A 125/250VAC 1/2HP |
GTT22 | ENEV/CQC | 22(8)A 250VAC |
G5T22 | UL | 22A 125/250VAC 1HP |
G5T26 | ENEV/CQC | 26(10)A 250VAC |
Operating Temperature | -25℃∽+85℃ -25℃∽+125℃ -25℃∽+150℃ | |
Mechanical Life | 100000 cycles | |
Electrical Life | 50000 cycles |
