In the intricate world of electrical engineering, micro switches play a pivotal role in controlling and detecting movements within a myriad of devices. These small yet powerful components are essential in applications ranging from household appliances to industrial machinery, automotive systems, and beyond. Understanding what micro switches are, how they function, and their various applications is crucial for professionals and enthusiasts in the field. This comprehensive exploration delves into the intricacies of micro switches, shedding light on their design, operation, types, and significance in modern technology.
The inception of micro switches dates back to the 1930s when Peter McGall, an engineer, invented a switch that operated with a small movement and produced a "snap" sound. This innovation led to the term "micro switch," reflecting the minimal physical force required to activate it. Initially used in basic electrical devices, the micro switch's reliability and precision soon caught the attention of various industries. Throughout the decades, advancements in materials and manufacturing techniques have refined micro switches, enhancing their durability, sensitivity, and adaptability to different environments.
At its core, a micro switch comprises several key components: an actuator button or lever, a spring mechanism, electrical contacts, and a housing unit. The actuator is the mechanical interface that receives external force. The spring mechanism provides the snap-action movement, enabling quick transition between contact states. The electrical contacts consist of a common terminal (COM), a normally open terminal (NO), and a normally closed terminal (NC), allowing the switch to control electrical circuits effectively. The housing, usually made from robust plastics or metals, protects internal components from environmental factors.
Micro switches operate on a snap-action mechanism, meaning a small physical force results in a rapid switch between electrical states. When the actuator experiences pressure beyond a specific threshold, it triggers the internal spring mechanism. This action swiftly changes the connection between the COM terminal and either the NO or NC terminals. The quick response reduces the chances of arcing and contact wear, enhancing the switch's longevity. The design ensures that once activated, the switch maintains its state until the actuator is released, providing consistent and reliable performance.
Micro switches are versatile components available in various configurations to suit specific application needs. The main types include basic micro switches, miniature micro switches, subminiature micro switches, and specialized versions like waterproof and explosion-proof models.

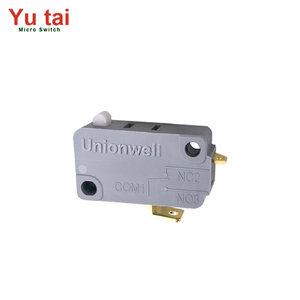

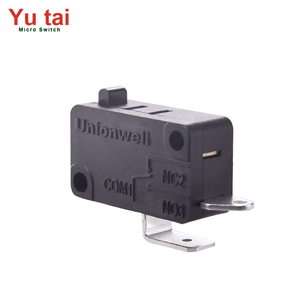

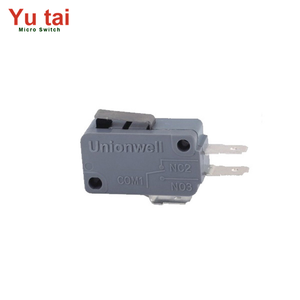

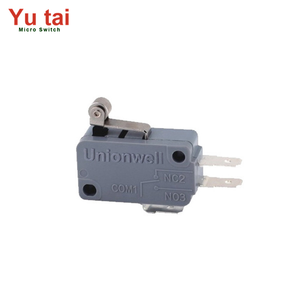

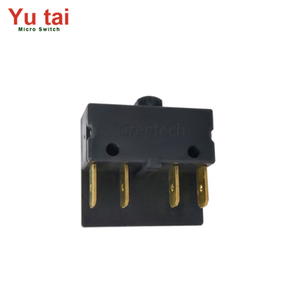

Basic micro switches are standard-sized switches suitable for general-purpose applications. They are known for their robustness and ease of installation. Common in appliances and industrial equipment, these switches handle moderate electrical loads and are cost-effective solutions for many control circuits.

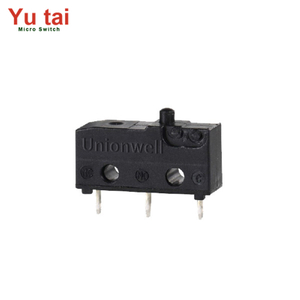

Miniature micro switches, such as the G10 series, are smaller than standard switches but maintain similar electrical characteristics. Subminiature switches are even smaller, designed for applications where space is at a premium. These switches are integral in compact devices like computer mice, automotive controls, and handheld instruments, where precise control in a limited space is essential.

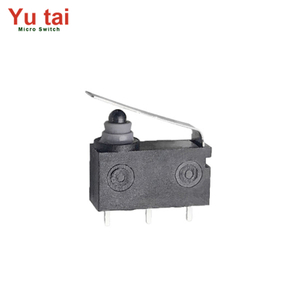

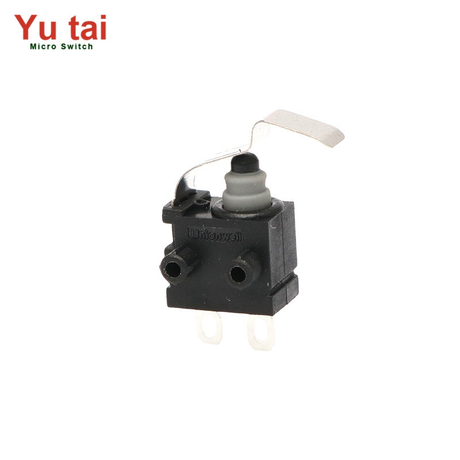

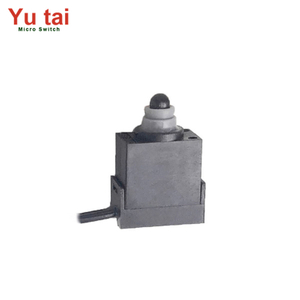

Sealed micro switches are designed to operate in harsh environments where dust, moisture, or chemicals are present. They feature protective enclosures that prevent contaminants from affecting internal components. Waterproof switches, like the G5W11 series, are specifically engineered to resist water ingress, making them suitable for outdoor equipment and appliances exposed to wet conditions. These switches comply with various IP ratings, indicating their level of protection against solids and liquids.
In industries dealing with flammable gases or dust, explosion-proof micro switches are crucial. They are constructed to prevent ignition within the switch from causing an explosion in the surrounding environment. These switches adhere to strict safety standards and are vital in mining, petrochemical, and grain processing industries.
The adaptability of micro switches makes them indispensable in numerous fields. Their precise operation and reliability contribute significantly to the functionality and safety of various systems.

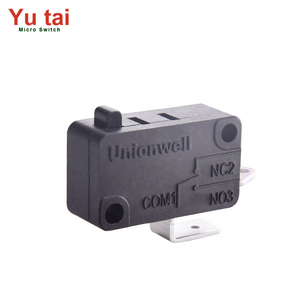

In automotive engineering, micro switches are employed in several systems, including gear shifters, door locks, and seat adjustments. For example, the G5 series micro switches are utilized in gear shift assemblies to detect the gear position, ensuring accurate transmission control. Seat adjustment mechanisms rely on micro switches to provide feedback on position settings, enhancing user comfort and safety.
Micro switches are integral in the operation of consumer electronics such as printers, microwave ovens, and refrigerators. In printers, they detect paper jams or the presence of paper, preventing operational errors. Refrigerators use door switches to control internal lighting and cooling functions, optimizing energy efficiency. The HP series door switches exemplify reliable performance in appliance applications.
In industrial settings, micro switches serve as limit switches in machinery, conveyor systems, and control panels. They provide critical feedback on machine positioning, enabling automated processes and enhancing operational safety. Their robustness allows them to withstand the demanding conditions of industrial environments.

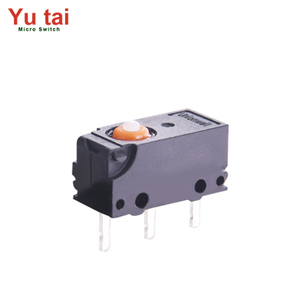

Medical devices often require high precision and reliability. Micro switches are used in equipment like infusion pumps, hospital beds, and diagnostic machines to ensure accurate functioning. They contribute to patient safety by providing dependable control mechanisms in life-critical applications. The G10B series micro switches are tailored for such sensitive applications.
Micro switches offer several benefits that make them the component of choice in many applications:
These switches are designed for long operational life, capable of enduring millions of cycles without significant wear. The snap-action mechanism minimizes contact erosion, ensuring consistent performance over time.
Micro switches provide precise actuation points, essential for applications requiring exact measurements or movements. This precision contributes to the safety and efficiency of systems, particularly in automation and control environments.
With various sizes, actuator styles, and electrical ratings, micro switches can be customized to suit specific needs. This versatility makes them suitable for a broad spectrum of applications, from tiny electronic devices to heavy industrial machinery.
Micro switches are economical, offering high performance at a relatively low cost. Their durability reduces maintenance expenses and downtime, providing long-term savings for manufacturers and end-users.
Designing or selecting the appropriate micro switch involves several crucial factors to ensure optimal performance and safety.
Understanding the voltage and current requirements is paramount. The switch must handle the electrical load without overheating or causing electrical hazards. Selecting a switch with appropriate electrical ratings prevents premature failure and ensures compliance with safety standards.
Actuation force, travel distance, and actuator type are critical mechanical considerations. The required force to activate the switch must align with the application's capabilities. For instance, a device with limited force output would necessitate a switch with a low actuation force.
The operating environment influences material selection and protective features. Exposure to moisture, dust, extreme temperatures, or chemicals requires switches with appropriate sealing and material properties. Environmental considerations ensure longevity and reliability in challenging conditions.
Adherence to international standards like UL, IEC, and RoHS is essential, especially for products sold globally. Compliance demonstrates commitment to safety, quality, and environmental responsibility. Manufacturers often provide documentation verifying that their micro switches meet these standards.
Modern vehicles feature advanced seat adjustment systems for enhanced comfort and ergonomics. Micro switches are integral in these systems, providing feedback on seat position and movement. The G19 series offers sealed, durable switches suitable for the automotive environment, where they must withstand vibrations, temperature fluctuations, and continuous use.
In medical equipment like infusion pumps, micro switches ensure that components are correctly positioned before operation. Accuracy and reliability are critical, as malfunctions can have severe consequences. The use of high-precision micro switches enhances patient safety and device effectiveness.
Automation systems rely on micro switches for position sensing and control feedback. In robotics, they detect the extremes of movement or the presence of objects, contributing to the accurate and safe operation of robotic arms and automated guided vehicles (AGVs). The switches must be robust and responsive to meet the demands of industrial automation.
The field of micro switches is continually evolving, driven by technological advancements and emerging industry needs.
As electronic devices become smaller yet more complex, there is a growing demand for compact micro switches that do not compromise on performance. Integration with other components and systems is essential, leading to the development of switches with multifunctional capabilities.
Incorporating smart features into micro switches, such as self-diagnostics and communication abilities, enhances system monitoring and maintenance. These intelligent switches can provide real-time data on their operational status, facilitating predictive maintenance and reducing downtime.
Advancements in material science contribute to the development of micro switches with improved durability and environmental resistance. New composites and coatings allow switches to perform reliably under more extreme conditions, expanding their applicability in challenging environments.
Micro switches are indispensable components in the modern technological landscape. Their ability to provide precise, reliable control in a compact form factor makes them suitable for a wide array of applications across various industries. From automotive systems to household appliances, industrial machinery to medical equipment, the role of micro switches is ever-expanding and evolving. As technology advances, these switches will continue to innovate, incorporating smarter features and adapting to new challenges. Understanding their operation, types, and applications is essential for engineers, designers, and professionals aiming to leverage their full potential in developing advanced, reliable, and efficient systems.
