Micro switches, also known as miniature or snap-action switches, are compact, highly sensitive, and exceptionally reliable electromechanical devices. Their small size allows them to be installed in constrained spaces, while their rapid and precise actuation makes them ideal for applications requiring high-frequency operations. One of the most remarkable features of micro switches is their long contact life, which enables consistent performance over millions of cycles. These characteristics make micro switches indispensable in industrial automation and safety systems.
Safety door switches, a specific application of micro switches, play a critical role in protecting personnel and machinery. These switches are designed to detect whether doors, gates, or protective covers are closed, ensuring that machines operate only under safe conditions. By preventing equipment from running while a door is open, safety door switches help avoid accidents, reduce equipment damage, and maintain a safe working environment.
A safety door switch is an electromechanical device installed on a door or protective enclosure to detect its open or closed state. The primary purpose of the switch is to interrupt power or trigger an alarm when the door is opened. This prevents machinery from operating in unsafe conditions, protecting both operators and the equipment itself.
Functions of Safety Door Switches:
By cutting off the electrical circuit, safety door switches ensure that machinery cannot operate when protective doors or covers are not properly closed.
Many safety door switches are connected to monitoring systems. When the switch detects an open door, it can trigger audible alarms, visual indicators, or automated shutdowns, ensuring immediate corrective action.

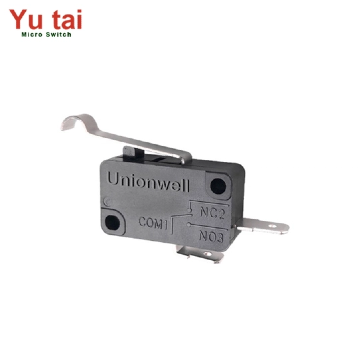

Micro switches serve as the core sensing mechanism in safety door switches. Their precise and rapid actuation ensures accurate detection of door positions, while their durability guarantees long-term reliability even in high-frequency operations.
Key Advantages:
Micro switches respond instantly to changes in door status, providing reliable feedback for automated systems.
Designed to withstand millions of cycles, micro switches maintain consistent performance under frequent use.
Their small form factor allows easy integration into limited spaces without altering the overall structure of the safety door.
The operation of a safety door switch is straightforward yet effective, combining mechanical actuation with electrical signal transmission.
When the safety door is properly closed, the micro switch’s contacts remain in their normal closed position, allowing uninterrupted operation of the connected machinery. This ensures that all automated processes can proceed safely while confirming that the protective door is securely in place, preventing accidental exposure to moving parts.
Opening the safety door immediately triggers the micro switch, breaking the electrical contact and cutting power to the equipment. This action not only halts machinery to prevent accidents but can also activate alarms or system notifications, alerting operators to the unsafe condition and ensuring rapid corrective measures.
The micro switch converts the mechanical movement of the door into precise electrical signals that are transmitted to the control system. These signals enable automated safety responses, including stopping machinery, activating warning indicators, or initiating emergency procedures to protect personnel and equipment from harm.
Micro switch-based safety door switches are widely used across various industrial and automated environments:
Micro switches are widely used in industrial machinery to ensure operator safety. They monitor CNC machine safety doors and press machine protective enclosures, cutting power or triggering alarms if doors are opened. This prevents accidental contact with moving parts, reduces the risk of injury, and maintains safe machine operation.
In automated production lines, micro switches are essential for monitoring packaging machine safety doors and conveyor system protective covers. They provide real-time feedback on door and cover positions, allowing the system to halt operations or send alerts if a protective barrier is opened, ensuring product quality and worker safety simultaneously.
Micro switches play a critical role in laboratories and hazardous environments. They monitor enclosures of chemical processing equipment and high-temperature or high-pressure experimental setups. By triggering automatic shutdowns or alarms when doors are opened, micro switches help prevent accidents, protect personnel, and maintain controlled experimental conditions.
In each of these applications, the micro switch ensures that machines operate only when doors or protective covers are securely closed, providing an essential layer of safety for operators and equipment.
Choosing the right micro switch for safety door applications requires careful consideration of several factors:
When selecting micro switches for safety door applications, it is essential to ensure that the voltage rating, current rating, and contact capacity align with the system’s operational requirements. Correct electrical matching prevents overheating, contact wear, or failure, ensuring consistent and reliable operation of machinery.
Mechanical considerations include actuation force, travel distance, and mounting dimensions. The micro switch must be compatible with the specific door design, ensuring precise triggering. Proper mechanical fit guarantees accurate operation, reduces wear on components, and maintains the safety function over extended usage.
Micro switches must be capable of withstanding environmental challenges such as temperature fluctuations, humidity, dust, and potential exposure to liquids. Selecting switches with appropriate IP ratings or protective coatings ensures stable and reliable performance, even in harsh industrial or laboratory conditions.
To ensure safety and reliability, micro switches used in safety door applications should comply with recognized international standards, such as ISO, CE, or other relevant certifications. Compliance provides assurance that the devices meet rigorous testing requirements and can be trusted in critical safety systems.
In a modern automated production facility, micro switch-based safety door switches are strategically installed on all protective doors along the assembly line to ensure comprehensive safety coverage. Whenever an operator opens a door to access the machinery, the micro switch instantly detects the change in door position and immediately sends an electrical signal to the central control system. This triggers an instant shutdown of the connected machinery and activates visual and audible alarms, preventing potential accidents. Once the door is securely closed, the micro switch re-engages, allowing the production line to resume operation seamlessly. The integration of micro switches in this safety system not only safeguards operators but also reduces unexpected downtime, enhances operational efficiency, and prolongs the lifespan of expensive industrial equipment by preventing mechanical strain and misuse.
Micro switches are fundamental components in safety door switches, providing sensitive, reliable detection of door positions. By ensuring that machinery operates only under safe conditions, these switches safeguard personnel, protect equipment, and enhance automation efficiency. Their compact size, long service life, and precision make them ideal for industrial, laboratory, and automated environments.
