Views: 0 Author: Site Editor Publish Time: 2025-11-05 Origin: Site
Ever wondered why your dishwasher keeps running smoothly in a wet environment? Or how automotive switches survive rain and moisture? The answer lies in one tiny component: the waterproof micro switch. These miniature electrical heroes power countless devices around us, from home appliances to industrial machinery, all while battling water, dust, and harsh conditions.Wiring a mini waterproof micro switch might seem daunting at first. Many people struggle with identifying the correct terminals. Others worry about maintaining the waterproof seal during installation. One wrong connection can compromise both functionality and safety. Without proper guidance, you risk damaging expensive equipment or creating electrical hazards.That's where this guide comes in.
In this comprehensive tutorial, you'll learn exactly how to wire a mini waterproof micro switch correctly. We'll walk through every essential step, from understanding terminal configurations to applying waterproofing measures. You'll discover which tools you actually need, how to test your connections, and what common mistakes to avoid.At Yutai Switch, we've manufactured quality waterproof micro switches for years. Our ISO9001 and IATF16949 certified products serve industries worldwide. This expertise informs every recommendation in this guide.Whether you're working on household appliances, automotive projects, or industrial automation, this step-by-step instruction will give you confidence. You'll master the wiring process while ensuring your installation maintains its waterproof integrity.Let's get started with the basics.
Before you grab your tools, let's understand what you're working with.
A mini waterproof micro switch is more than just a tiny button. It's a precision component that keeps your devices running safely in wet conditions.
Think of it as a smart gatekeeper for electrical circuits.
When pressed, it opens or closes connections instantly. This snap-action happens in milliseconds.
Basic Functionality
The switch controls current flow through mechanical movement. Press the actuator, and internal contacts shift position. Release it, and they snap back.
Simple, yet incredibly effective.
Standard vs. Waterproof: Key Differences
Regular micro switches work fine indoors. But expose them to moisture? They fail quickly.
Waterproof versions add protective sealing. This shields internal components from water, dust, and contaminants.
The "mini" designation refers to compact dimensions. We're talking switches smaller than your thumbnail. Perfect for tight spaces.
Key Components Inside
Every waterproof micro switch contains:
Contacts: Conductive metal pieces that complete circuits
Movable piece: The internal lever that shifts contacts
Spring: Provides the snap-action force
Terminals: External connection points (COM, NO, NC)
Button or actuator: What you press to trigger action
Waterproof sleeve: Seals everything from moisture
These parts work together seamlessly. The waterproof sleeve is what sets these switches apart.
Why Waterproofing Matters
Water and electricity don't mix well. Even humidity can cause:
Corrosion on contacts
Short circuits
Premature failure
Safety hazards
Waterproof switches prevent these issues. They're essential in kitchens, bathrooms, vehicles, and outdoors.
The magic happens through snap-action mechanics.
The Snap-Action Mechanism
Press the button slowly. Nothing happens at first. The spring compresses gradually.
Then suddenly—click!
The contacts flip position instantly. This rapid movement prevents arcing and extends switch life.
Mechanical Structure
Inside, a precise lever system amplifies your finger pressure. Small force becomes powerful contact pressure.
The spring stores energy as you press. At the trigger point, it releases all at once.
This creates that distinctive "click" sound. You'll hear it every time the switch activates.
Contact Movement During Activation
In the resting state, one contact touches the common terminal. This is either NO (normally open) or NC (normally closed).
Apply pressure to the actuator. The internal lever tips past its balance point.
Snap! The movable contact breaks from one terminal. It immediately connects to the other.
Release pressure. The spring returns everything to the starting position. Another snap as contacts switch back.
Spring Tension and Trigger Force
The spring determines how much pressure you need. Mini switches typically require 50-200 grams of force.
Too light? Accidental triggering happens. Too heavy? Users struggle to activate it.
Manufacturers calibrate this carefully. The result is reliable operation through millions of cycles.
Electrical Circuit Completion
When contacts touch, current flows through. The switch completes the circuit path.
Break contact, and current stops instantly. The air gap prevents any leakage.
This clean on/off action makes micro switches perfect for control applications.
Not all waterproof switches are equal. Features vary significantly.
IP Rating Explained
IP stands for Ingress Protection. Two numbers follow:
First digit: Dust protection (0-6)
Second digit: Water protection (0-9)
IP65: Dust-tight, protected against water jets IP67: Dust-tight, survives immersion up to 1 meter IP68: Dust-tight, continuous underwater operation
Higher numbers mean better protection. Choose based on your environment.
Dust-Proof Capabilities
Dust particles can jam mechanical parts. They also conduct electricity when wet.
IP6X rated switches block all dust entry. The seal remains tight even during operation.
This matters in industrial settings. Factories generate lots of airborne particles.
Moisture Resistance Technology
Waterproof switches use multiple sealing methods:
Rubber gaskets around the actuator button create the first barrier. Potting compound encapsulates terminals and contacts.
Special coatings on metal parts resist corrosion. These layers work together.
The result? Switches that laugh at humidity and splashes.
Temperature Tolerance Ranges
Standard switches fail in extreme temperatures. Waterproof versions handle much more.
Typical ranges span -25°C to +85°C. Some industrial models go even wider.
Materials expand and contract with temperature. Quality switches account for this.
Operating Environment Suitability
Consider where you'll install the switch:
Kitchen appliances: Need splash resistance
Outdoor equipment: Require weather protection
Automotive: Must handle vibration and temperature swings
Industrial: Demand chemical resistance
Match the switch specs to your environment. This ensures long-term reliability.
Understanding terminal types prevents wiring mistakes.
Different configurations suit different applications. Let's break them down.
SPDT (Single Pole Double Throw) Waterproof Micro Switches
This is the most versatile configuration. You get three terminals to work with.
Three-Terminal Configuration: COM, NO, NC
COM (Common): The shared connection point
NO (Normally Open): Disconnected when switch is at rest
NC (Normally Closed): Connected when switch is at rest
Power connects to COM. Your load connects to either NO or NC.
How the Circuit Operates
At rest, COM connects to NC. Current flows through this path.
Press the button. COM instantly switches to NO. The NC connection breaks.
Release the button. Everything returns to the starting position.
Best Applications for SPDT Switches
Use SPDT when you need:
Selector functions (this OR that)
Safety interlocks
Reversing circuits
Indicator lights showing switch state
Dishwashers use SPDT switches extensively. Door closed? Motor runs. Door open? Motor stops.
SPST NO (Single Pole Single Throw Normally Open)
Simpler than SPDT. Just two terminals.
Two-Terminal Configuration
Only COM and NO terminals exist. No NC option.
At rest, no connection exists. Press the button, and the circuit closes.
When to Use NO Configuration
Perfect for:
Momentary push buttons
Start functions
Signal triggers
Non-critical control
Think of a doorbell. Press it, circuit closes. Release it, circuit opens.
Typical Applications in Waterproof Environments
Outdoor lighting controls often use NO switches. Garden irrigation systems too.
The default "off" state saves power. Activation only happens intentionally.
SPST NC (Single Pole Single Throw Normally Closed)
The opposite of NO configuration.
Two-Terminal Configuration
COM and NC terminals only. Circuit is normally complete.
When to Use NC Configuration
Critical for safety applications. Here's why:
If the switch fails mechanically, the circuit breaks. This creates a fail-safe condition.
Wire breaks? Same result—circuit opens.
Safety Applications Requiring NC Switches
Emergency stop circuits use NC switches. So do:
Safety door interlocks
Limit switches on machinery
Fire alarm circuits
Critical monitoring systems
The logic is simple. Anything wrong? Circuit breaks and alerts you.
DPDT and Other Advanced Configurations
Double-pole switches control two circuits simultaneously.
Double-Pole Configurations
DPDT has six terminals. Two independent switches operating together.
This allows complex control schemes. One button activates multiple functions.
Multiple Circuit Control Capabilities
Control power and signaling circuits separately. Or switch between two different power sources.
Motor reversing circuits commonly use DPDT switches. Forward/reverse with one button.
Industrial Automation Uses
PLCs and control systems often need isolated switching. DPDT provides this.
You can switch high voltage power while simultaneously sending low voltage signals.
Terminals aren't always clearly labeled. Learning to identify them matters.
COM (Common) Terminal Identification
Usually marked "C" or "COM". Sometimes it's the center terminal.
Check the datasheet if unsure. Some switches use color coding.
On Yutai Switch products, COM is clearly labeled. No guessing required.
NO (Normally Open) Terminal Function
Marked "NO" or sometimes just "O". This terminal is dead at rest.
Press the switch. It connects to COM. Current flows.
Release. Connection breaks immediately.
NC (Normally Closed) Terminal Function
Marked "NC" or "C" (for closed). Already connected to COM at rest.
Pressing the switch breaks this connection. Current stops flowing.
Color Coding Standards
No universal standard exists. Manufacturers use different systems.
Common patterns include:
Red wire: Power/positive
Black wire: Ground/negative
Yellow/White: Signal
Always verify with the manufacturer's documentation.
Reading Manufacturer Datasheets
Datasheets show terminal pinouts clearly. They include:
Physical terminal locations
Electrical ratings per terminal
Recommended wire gauges
Torque specifications for screw terminals
Download the datasheet before wiring. It saves troubleshooting time later.
Yutai Switch provides detailed technical documents. Our team can clarify any questions.
Proper tools make wiring easier and safer. Let's gather what you need.
Wire Strippers/Cutters
Get quality strippers that handle multiple wire gauges. Adjustable types work best.
For mini switches, you'll typically work with 18-24 AWG wire.
Cheap strippers damage wire strands. Invest in decent ones.
Soldering Iron and Solder
A 25-40 watt iron suits most micro switch work. Temperature control helps.
Use 60/40 rosin-core solder. Lead-free works too but requires higher heat.
Keep the tip clean. A dirty tip won't transfer heat properly.
Heat Shrink Tubing Kit
Buy an assortment pack. You'll need various diameters.
2:1 shrink ratio is standard. 3:1 provides more sealing.
Choose adhesive-lined tubing for waterproof applications. It creates a better seal.
Multimeter for Testing
Digital multimeters are affordable and accurate. You need:
Continuity testing mode
Voltage measurement
Resistance measurement
Don't skip this tool. Testing prevents disasters.
Crimping Tools
If using crimp connectors, get the right crimper. Generic ones create poor connections.
Ratcheting crimpers ensure complete crimps. They won't release until fully compressed.
Small Screwdrivers
Precision screwdriver sets help with tiny terminals. Both flathead and Phillips.
Magnetic tips prevent dropped screws. Trust me, you'll appreciate this.
Wire Management Accessories
Cable ties keep things organized. Heat-resistant ones won't melt during soldering.
Wire labels help identify connections later. Future you will be grateful.
Appropriate Gauge Wire
For most mini waterproof switches, 18-22 AWG works well. This handles 5-10 amps safely.
Use stranded wire, not solid. It's more flexible and vibration-resistant.
Red and black remain standard for power connections. Other colors for signals.
Waterproof Connectors or Solder
Soldered connections are most reliable. They create strong mechanical and electrical bonds.
If soldering isn't possible, use quality waterproof crimp connectors. The cheap ones leak.
Heat Shrink Tubing in Various Sizes
Stock multiple diameters:
Small (2-3mm): Individual wire insulation
Medium (5-8mm): Multiple wire bundles
Large (10-15mm): Cable entry points
Adhesive-lined tubing is worth the extra cost. It seals better.
Waterproof Sealant or Potting Compound
Silicone sealant works for light-duty applications. Marine-grade handles more abuse.
Potting compound fully encapsulates connections. Use it for submersible applications.
Let it cure completely. Rushing this step compromises waterproofing.
Cable Glands
These compression fittings seal cable entry points. Essential for maintaining IP ratings.
Choose glands matching your cable diameter. Too loose won't seal. Too tight damages cables.
Insulation Tape
Electrical tape adds extra insulation layers. It's not waterproof by itself.
Use quality 3M or similar brands. Cheap tape unwraps over time.
Cable Ties
UV-resistant ties for outdoor applications. Indoor types degrade in sunlight.
Various sizes help organize different wire bundles. Don't overtighten—you'll damage insulation.
Safety isn't optional. Protect yourself properly.
Insulated Gloves
Rubber insulated gloves prevent electrical shock. Even when power is "off."
They also protect against burns from soldering irons. Accidents happen.
Safety Glasses
Solder splatter can cause eye injuries. Wire ends can snap back.
Wrap-around styles protect from all angles. Prescription safety glasses exist too.
ESD Protection
Static electricity damages sensitive electronics. If your switch includes electronics, use ESD protection.
Wrist straps and mats are inexpensive insurance. They prevent expensive mistakes.
Well-Ventilated Workspace
Solder flux produces fumes. They're not healthy to breathe.
Work near an open window. Or use a fume extractor fan.
Good lighting matters too. You need to see tiny connections clearly.
Now we get to the actual wiring process. Follow these steps carefully.
Preparation prevents problems. Don't skip these steps.
Step 1: Identify Your Switch Specifications
Grab the switch datasheet. You need to know:
Rated voltage (AC or DC)
Maximum current capacity
Terminal configuration type
IP rating
Operating temperature range
Yutai Switch provides complete specifications with every product. Check them before proceeding.
Verify Rated Voltage and Current
Your circuit voltage must not exceed switch ratings. Neither should current draw.
Add 20% safety margin. If your load draws 5 amps, use a switch rated for 6+ amps.
Inductive loads (motors, solenoids) require even higher ratings. They generate voltage spikes.
Confirm Terminal Configuration Type
Is it SPDT, SPST NO, or SPST NC? This determines your wiring approach.
Look at the switch body for markings. Or reference the datasheet.
Note IP Rating Requirements
Your application dictates the needed IP rating. Indoor appliances might need IP65.
Outdoor equipment requires IP67 or IP68. Underwater applications demand IP68.
Don't use a lower-rated switch. It will fail prematurely.
Understand Switching Capacity
Resistive loads are easiest to switch. Incandescent bulbs, heaters.
Inductive loads are harder. Motors, transformers, relays.
Capacitive loads pose challenges too. Some switches can't handle them.
Check the datasheet for load-specific ratings.
Step 2: Plan Your Circuit Design
Sketch your wiring before touching tools. This prevents costly mistakes.
Determine NO vs NC Requirement
Think about fail-safe behavior. What happens if the switch fails?
For safety circuits, use NC. The circuit breaks if anything goes wrong.
For control circuits, NO often works better. Default "off" state saves power.
Calculate Load Requirements
Measure actual current draw if possible. Don't just guess.
Multiply by 1.5 for startup surge currents. Motors draw extra when starting.
Ensure your switch handles peak current, not just running current.
Plan Wire Routing
Keep wires away from heat sources. Don't run them near sharp edges.
Plan the path before cutting wires. Measure twice, cut once.
Consider wire movement. Vibrating equipment needs service loops.
Consider Strain Relief
Wires shouldn't pull directly on terminals. Use cable clamps or ties.
Strain relief prevents broken connections. It extends switch life dramatically.
Sketch Basic Wiring Diagram
Draw it out on paper. Label everything:
Power source connections
Load connections
Switch terminal assignments
Wire colors
This diagram becomes your reference. Take a photo for later.
Step 3: Safety First - Power Down
Never work on live circuits. Period.
Disconnect All Power Sources
Turn off breakers. Unplug equipment. Remove batteries.
Multiple power sources? Disconnect them all. Even backup power.
Verify Zero Voltage
Use your multimeter. Check voltage between all conductors.
Test the meter first on a known live circuit. Confirm it's working.
No voltage reading? Good. But also check for continuity to ground.
Lock Out/Tag Out Procedures
In industrial settings, follow LOTO procedures. Lock breakers in the off position.
Tag them so others know work is in progress. Your life depends on this.
Discharge Any Capacitors
Large capacitors store dangerous voltage even after power-off. Discharge them properly.
Use a resistor, not a screwdriver. The spark can cause injury.
Now let's actually wire the switch.
Step 4: Prepare the Wires
Wire preparation determines connection quality.
Measure and Cut Wire
Measure the distance between switch and destination. Add 20% extra length.
Service loops matter. They allow future adjustments without re-wiring.
Use sharp cutters. Dull ones crush wire strands.
Strip Insulation
Strip 5-7mm of insulation from wire ends. Not more, not less.
Too much exposed wire creates short circuit risks. Too little won't fit in terminals.
Adjust your stripper to avoid nicking wire strands. Nicked wires break easily.
Twist Stranded Wire Ends
Stranded wire needs tight twisting. This keeps strands together.
Twist clockwise—the direction screws tighten. This prevents unraveling.
Tight twists slip into terminals easier. They create better connections too.
Pre-Tin Wire Ends if Soldering
Heat the wire end with your iron. Apply solder until it flows into the strands.
Don't use too much solder. A light coating suffices.
This "tinning" prevents oxidation. It also makes soldering to terminals easier.
Step 5: Identify and Mark Terminals
Terminal identification prevents crossed wires.
Locate COM Terminal
Check the switch body for "COM," "C," or common terminal marking.
Often it's the center terminal on SPDT switches. But not always.
When in doubt, check the datasheet. Or use your multimeter.
Identify NO and NC Terminals
NO terminal is marked "NO" or sometimes "O" for open.
NC terminal shows "NC" or "C" for closed.
Use continuity mode on your multimeter. Test which terminal connects to COM at rest.
Mark Wires for Proper Connection
Use colored tape or labels. Mark each wire with its destination.
"Power to COM," "Load to NO," etc. Clear labels prevent mistakes.
Document Your Configuration
Take photos of the terminal layout. Note which wire goes where.
Update your wiring diagram with actual wire colors. This helps future troubleshooting.
Step 6: Connect Wires to Terminals
Connection method depends on switch terminal type.
For Soldered Connections:
Soldering creates the most reliable connections. Here's how to do it right.
Apply Heat to Terminal
Touch the iron to both the terminal and wire simultaneously. Heat both together.
Wait 2-3 seconds. Both must reach solder melting temperature.
Feed Solder
Touch solder to the junction point, not the iron tip. Let heat from the terminal melt it.
Solder should flow smoothly into the joint. It should wet both surfaces.
Use just enough. Too much creates blobs. Too little creates weak joints.
Allow Proper Cooling Time
Don't move anything for 5-10 seconds. Let the joint solidify naturally.
Disturbing the joint while cooling creates "cold solder joints." They fail later.
A good joint looks shiny and smooth. Dull, grainy joints indicate problems.
Inspect for Cold Solder Joints
Cold joints appear dull or crystalline. They don't bond properly.
If you spot one, reheat and add a tiny bit more solder. Let it cool again.
Clean Flux Residue
Rosin flux leaves sticky residue. It attracts dirt and moisture.
Clean it with isopropyl alcohol and a brush. Cotton swabs work too.
For Crimp Connections:
When soldering isn't practical, crimping works well.
Select Appropriate Crimp Connector
Match connector size to wire gauge. Too large won't grip. Too small won't fit.
Insulated crimp connectors include heat shrink. Waterproof ones include sealant.
Insert Wire into Connector
Strip wire to match the connector barrel length. Usually 6-8mm.
Push wire completely into the barrel. You should see it through the inspection hole.
Crimp Firmly
Position crimper correctly. It should compress the entire barrel evenly.
Squeeze handles fully. Ratcheting crimpers won't release until complete.
You should see a hexagonal or "W" shaped crimp impression.
Tug Test
Pull firmly on the wire. It shouldn't budge at all.
If it slips out, the crimp failed. Cut it off and redo it.
For Screw Terminals:
Some switches have screw-down terminals. They're easiest for beginners.
Insert Stripped Wire
Form a hook shape at the wire end. Wrap it clockwise around the screw.
This ensures tightening the screw pulls the wire in, not pushes it out.
Push wire fully into the terminal block. No exposed copper should show.
Tighten Screw Securely
Use the correct screwdriver size. Too small strips the screw head.
Tighten firmly but don't overtighten. You'll crack the terminal block.
Feel for firm resistance. That's enough.
Ensure No Stray Strands
Trim any stray wire strands poking out. They can create short circuits.
Check visually. Even one stray strand can cause problems.
Check for Firm Connection
Gently tug the wire. It shouldn't move at all.
Wiggle it side to side. Same result—no movement.
Step 7: Apply Waterproofing Measures
This step maintains the switch's IP rating. Don't rush it.
Slide Heat Shrink Tubing Over Connections
Slip tubing over the wire before connecting. You can't add it after.
Position it to cover the entire connection point plus 5mm on each side.
Use adhesive-lined tubing for best waterproofing. Regular tubing isn't waterproof.
Apply Heat Evenly
Use a heat gun, not an open flame. Flames damage the tubing.
Move the heat source constantly. Don't concentrate heat in one spot.
The tubing will shrink evenly. Adhesive will ooze out the ends slightly.
Use Waterproof Sealant at Entry Points
Apply marine-grade silicone where wires enter the switch housing. Work it into gaps.
Let it cure completely. Check the tube for curing time—usually 24 hours.
Don't use the switch before sealant cures. Moving it disrupts the seal.
Apply Potting Compound if Required
For submersible applications, potting compound is essential. It fully encapsulates connections.
Mix two-part compounds according to instructions. Pour slowly to avoid air bubbles.
Cure time varies. Some need days to fully harden.
Install Cable Glands Properly
Thread the cable gland onto the wire before connecting. You can't add it after.
Tighten the compression nut. It should squeeze the cable firmly.
Test by pulling on the cable. It shouldn't move through the gland.
Ensure Complete Encapsulation
Check visually. No bare metal should be visible anywhere.
Gaps allow moisture in. Even tiny ones compromise waterproofing.
Add extra sealant to any questionable areas. Better safe than sorry.
Different applications need different wiring approaches.
Basic ON/OFF Control Circuit
The simplest configuration. Perfect for learning.
Wiring Diagram and Explanation
Power source positive connects to COM terminal. Load connects to NO terminal.
Other load wire returns to power source negative. This completes the circuit.
Press switch. COM connects to NO. Current flows. Load activates.
Release switch. Connection breaks. Current stops. Load deactivates.
Power Source Connection to COM
Always connect your power source (battery, power supply) to the COM terminal.
Use appropriately rated wire. Check ampacity tables if unsure.
Load Connection to NO or NC
For normally-off operation, connect load to NO. Device is off by default.
For normally-on operation, use NC. Device runs unless you press the switch.
Complete Circuit Path
Current must have a complete path. Power → Switch → Load → Ground → Power.
Break anywhere in this path and current stops flowing.
Dishwasher Door Lock Application
A real-world example showing NC terminal use.
NC Terminal Configuration for Safety
Dishwashers use NC switches for safety. Here's why.
Door open? Switch is not pressed. COM disconnects from NC. Motor stops.
Door closed? Switch presses. COM connects to NC. Motor runs.
How Switch Activates When Door Closes
The door physically presses the switch actuator. This creates the connection.
If the switch fails, the circuit breaks. The dishwasher won't run.
This fail-safe design prevents flooding from open-door operation.
Wiring Schematic
Power connects to COM. Motor connects to NC terminal. Ground completes the circuit.
Simple, yet effective safety interlock.
Automotive Applications
Cars present unique challenges.
Considerations for 12V DC Systems
Most automotive circuits run on 12V DC. Your switch must handle DC voltage.
DC ratings differ from AC. Check the datasheet carefully.
Battery voltage actually varies from 11-14.5V. Factor this in.
Vibration-Resistant Connections
Cars vibrate constantly. Connections must withstand this.
Use lock washers on screw terminals. Stake soldered connections.
Strain relief is critical. Use cable clamps generously.
Environmental Sealing Requirements
Under-hood temperatures reach 100°C or higher. Use high-temp rated switches.
Road salt and chemicals attack connections. Conformal coating helps protect them.
Industrial Control Systems
Industrial applications demand reliability.
Integration with PLCs
PLCs use low voltage signaling, usually 24V DC. Mini switches work perfectly for this.
Connect switch output to PLC input terminals. Follow PLC manufacturer guidelines.
Signal vs. Power Switching
Don't mix signal and power circuits. Keep them isolated.
Use separate switches for each. Or use DPDT switches with isolated poles.
Relay Interface Considerations
High-power loads need relays. The micro switch controls the relay coil.
Relay coils are inductive. They generate voltage spikes when switched off.
Add flyback diodes across relay coils. They suppress these spikes.
Testing confirms everything works correctly. It also reveals problems before they cause damage.
Start with the power still disconnected.
Set Multimeter to Continuity Mode
Most digital multimeters have a continuity setting. It beeps when resistance is low.
Some use a diode symbol for this mode. Check your meter's manual.
Test the meter first. Touch probes together. You should hear a beep.
Test COM to NO Connection (Switch Not Pressed)
Touch one probe to COM. The other to NO.
No beep? Good. NO should be open when switch isn't pressed.
If it beeps, something's wrong. Either the switch is faulty or wiring crossed.
Test COM to NC Connection (Switch Not Pressed)
Same procedure. COM probe to NC probe.
This should beep. NC is normally closed, remember?
No beep means broken connection or wrong terminal identification.
Press Switch and Verify Contact Change
Now press the switch button. Hold it down.
Test COM to NO again. Now it should beep.
Test COM to NC. This should stop beeping.
If this doesn't happen, the switch isn't working properly.
Check for Proper Snap-Action Response
The beep should change instantly. Not gradually.
You should hear the click clearly. Feel the snap.
Mushy action indicates a bad switch. Replace it.
Now test with actual power and load.
Reconnect to Actual Circuit
Start with low voltage if possible. Battery power is safest for initial testing.
Double-check all connections before applying power. Use your wiring diagram.
Test with Intended Load
Connect the actual device you're controlling. Don't use substitutes yet.
Different loads behave differently. Motors, lamps, and solenoids all vary.
Verify Proper Switching Action
Apply power. Press the switch. Does the load activate?
Release it. Does the load deactivate?
Test multiple times. Every operation should be consistent.
Listen for Audible "Click"
The click confirms snap-action. No click? Something's wrong.
Weak clicking might indicate mechanical problems developing.
Check for Any Heating Issues
After several minutes of operation, feel the switch. It should be barely warm.
Hot switches indicate:
Undersized switch for the load
Poor connections creating resistance
Internal switch damage
Shut down immediately if you detect excessive heat.
Now verify the waterproofing actually works.
Visual Inspection of All Seals
Look closely at every connection point. Check for:
Gaps in heat shrink tubing
Incomplete sealant coverage
Cracked potting compound
Loose cable glands
Fix any defects before proceeding.
Humidity Chamber Test
If available, place the switch in a humidity chamber. Set it to 95% RH at 40°C.
Run the switch repeatedly over 24 hours. It should function normally.
This simulates humid environments like bathrooms and kitchens.
Water Spray Test
For IP65-rated switches, spray water at the switch from multiple angles.
Use a spray bottle, not a pressure washer. Light spray only.
The switch should continue working normally. No water should penetrate.
For IP67/68 switches, you can test submersion. Follow the rating specifications exactly.
Long-Term Reliability Considerations
Seals degrade over time. Plan for periodic inspection and maintenance.
UV exposure breaks down rubber seals. Protect outdoor switches from direct sunlight.
Temperature cycling stresses seals. Allow adequate cure time before exposing to extremes.
Problems happen. Here's how to diagnose them.
Switch Doesn't Activate: Possible Causes
No click when pressed? Check:
Is the actuator obstructed?
Did the switch break internally?
Is mounting too tight, preventing movement?
Use your multimeter to check continuity while pressing. No change? Switch is bad.
Intermittent Connection Problems
Works sometimes but not always? Usually indicates:
Loose wire connections
Corroded contacts
Mechanical wear in switch
Vibration causing wire movement
Re-tighten all connections. Test continuity while wiggling wires.
Contacts Not Switching Properly
Switch clicks but circuit doesn't change? Possible causes:
Burned or welded contacts
Contamination on contact surfaces
Incorrect terminal connections
Broken internal connections
Test each terminal path individually. This isolates the problem.
Water Ingress Signs
Indicators of water penetration:
Corrosion on terminals (green/white deposits)
Droplets inside housing (if visible)
Erratic operation in humid conditions
Gradual performance degradation
Disassemble if possible. Dry thoroughly and reseal properly.
Overheating Issues
Hot switches mean problems:
Current exceeds switch rating
High resistance connections
Repeated rapid switching (arc damage)
Inductive load kickback
Measure actual current draw. Compare to switch rating. Upsize if needed.
How to Diagnose and Fix Each Problem
Systematic approach works best:
Isolate the problem (switch or wiring?)
Test each connection point
Verify switch functionality separately
Check load compatibility
Measure actual operating conditions
Document what you find. This helps prevent repeat issues.
Choosing the right switch prevents problems. These parameters matter most.
Don't just pick any switch. Match it to your application.
Voltage Rating Selection (AC vs DC)
AC and DC ratings differ significantly. A switch rated for 125V AC might only handle 30V DC.
Why? DC doesn't have zero-crossing points like AC. Arcing is harder to extinguish.
Always check both voltage ratings. Use the appropriate one for your circuit.
Current Capacity Requirements
Switch datasheets list current ratings. But they vary by load type.
Resistive loads (heaters): Use full rated current Inductive loads (motors): Derate to 30-50% of rating Capacitive loads (power supplies): Derate to 20-30%
When in doubt, go bigger. Oversizing costs little and prevents failures.
Switching Capacity
This combines voltage and current. Measured in watts or VA.
Calculate your load: Voltage × Current = Power
Compare to switch rating. Include safety
margin of at least 20%.
Motor starting current spikes 3-6 times running current. Factor this in.
Contact Resistance Specifications
Lower contact resistance means less voltage drop and heat generation.
Quality switches have contact resistance under 50 milliohms. Some achieve under 10mΩ.
High resistance indicates:
Poor contact material
Contamination
Mechanical wear
This matters for low-voltage circuits. Even small resistance creates problems.
Insulation Resistance
Insulation between terminals must be extremely high. Minimum 100 megohms.
Good switches exceed 1000 megohms. This prevents leakage current.
Moisture degrades insulation resistance. Waterproof sealing maintains it.
Mechanical properties affect feel and reliability.
Operating Force Requirements
How hard must you press? Typical ranges:
Light touch: 50-100 grams
Standard: 100-200 grams
Heavy duty: 200-500 grams
Consider the application. User interface switches need light force.
Industrial limit switches often need heavier force to resist accidental activation.
Travel Distance
Pre-travel is the distance before contacts switch. Typically 1-3mm.
Total travel includes overtravel. Usually 3-6mm total.
Short travel suits tight spaces. Longer travel provides positive feedback.
Overtravel Specifications
After the switch activates, you can press further. This is overtravel.
It prevents damage from excessive force. Typically 0.5-2mm.
Quality switches maintain contact throughout overtravel. Cheap ones don't.
Differential Travel
The distance between activation and release points. Usually 0.2-1mm.
Larger differential provides more distinct on/off action. It reduces chatter.
Too large feels sloppy. Too small causes unstable switching.
Actuator Types Available
Different actuators suit different applications:
Pin plunger: Direct push action, compact
Roller lever: Follows moving parts smoothly
Hinge lever: Converts lateral motion to activation
Button: User interface applications
Yutai Switch offers multiple actuator options. Choose based on your mechanism.
Environment determines required protection level.
IP Rating Selection Guide
Match IP rating to actual conditions:
IP65: Kitchen splashes, outdoor spray
First digit 6: Complete dust protection
Second digit 5: Water jets from any direction
IP67: Temporary immersion, rain
Can survive 30 minutes at 1 meter depth
Perfect for outdoor equipment
IP68: Continuous submersion
Depth and duration vary by manufacturer
Check specifications carefully
Don't over-specify. IP68 costs more than IP65. Use what you actually need.
Temperature Range Considerations
Standard switches handle -25°C to +85°C. Industrial versions go wider.
Check both operating and storage temperature ranges. They differ.
Extreme cold makes plastics brittle. Extreme heat softens seals.
If your application sees temperature extremes, select accordingly.
Humidity Resistance
High humidity corrodes contacts even without water ingress.
Sealed switches with gold-plated contacts resist this best.
Marine environments are particularly harsh. Salt accelerates corrosion dramatically.
Chemical Resistance
Industrial environments expose switches to various chemicals.
Check material compatibility:
Case material (usually plastic, but which type?)
Seal material (different rubbers resist different chemicals)
Terminal plating
Yutai Switch can specify materials resistant to your specific chemicals.
UV Resistance for Outdoor Use
Sunlight degrades plastics over time. They become brittle and crack.
UV-stabilized plastics maintain flexibility longer. Look for this in outdoor switches.
Alternatively, mount switches in shade. Or use protective enclosures.
How long will your switch last?
Mechanical Life Expectancy
Number of operations before mechanical failure. Usually 1-10 million cycles.
Quality switches achieve 10+ million operations. Economy switches might manage 100,000.
This assumes proper operating conditions. Abuse shortens life dramatically.
Electrical Life Expectancy
Switching electrical loads wears contacts faster than mechanical operation alone.
Electrical life typically ranges from 50,000 to 500,000 operations.
Higher current loads reduce electrical life. So does inductive switching.
Contact Material Selection
Different materials suit different applications:
Silver: Excellent conductivity, affordable, oxidizes Silver alloy: Better arc resistance, longer life Gold-plated: Best corrosion resistance, low voltage ideal Silver-cadmium oxide: High current capability, industrial use
For low-voltage signals, gold plating is worth the cost. For power switching, silver alloys excel.
Factors Affecting Switch Longevity
Several factors determine actual switch life:
Load type: Resistive loads are easiest on contacts Switching frequency: Rapid cycling generates more heat Environment: Moisture, dust, and chemicals accelerate wear Operating conditions: Voltage and current near ratings reduce life Installation quality: Poor connections cause overheating
Proper selection and installation maximize lifespan.
Understanding applications helps you wire switches correctly.
Home appliances use waterproof switches extensively.
Washing Machines and Dishwashers
Door interlock switches prevent operation when doors open. They use NC terminals.
Water level sensors incorporate waterproof switches. They activate at preset levels.
Typical wiring: COM to power, NC to motor control circuit.
Microwave Ovens
Door safety switches use multiple NC switches in series. All must close for operation.
This redundancy prevents microwave radiation leaks from failed switches.
Waterproofing matters because of steam and spills.
Coffee Makers
Water reservoir switches detect empty conditions. They prevent dry operation.
Brew button switches need splash resistance. Coffee machines are wet environments.
Use SPST NO configuration. Press to brew, release to stop.
Refrigerators
Door switches control interior lights. They also trigger defrost cycles.
Temperature switches monitor compartment temperatures. They cycle compressors.
Condensation makes waterproofing essential.
Water Heaters
Temperature limit switches cut power at dangerous temperatures. Safety-critical application.
They use NC configuration. Overtemperature opens circuit immediately.
High-temperature rated switches are mandatory here.
Specific Wiring Considerations
Appliances require:
UL/CE certified switches for safety compliance
High-reliability components (appliances last years)
Proper grounding to prevent shock hazards
Arc suppression for inductive loads
Cars present unique challenges and requirements.

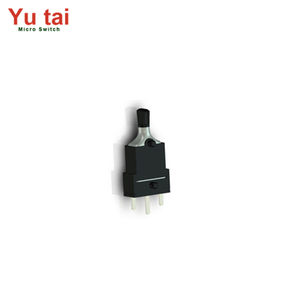

Door Lock Switches
Activate door lock motors. Usually momentary SPDT switches.
One position locks, other unlocks. Center position is off.
Must handle 12V DC and motor inrush current.
Trunk Release Mechanisms
Simple SPST NO switches. Press to release, spring returns.
Exposed to weather when trunk is open. IP67 minimum rating needed.
Gear Shifter Position Sensors
Multiple switches detect gear position. They prevent incorrect starts.
Park/neutral switches use NC configuration. They must close for starting.
Window Controls
DPDT switches control window motor direction. Up and down from one switch.
Heavy current draw requires robust contacts. Silver-cadmium oxide works well.
Wiper Systems
Multiple speed selection uses several switches. Waterproofing is obviously critical.
Intermittent wiper circuits need timing-compatible switches.
Under-Hood Applications
Temperature extremes and vibration are severe. Choose industrial-grade switches.
Oil and fuel resistance matters. Check material compatibility.
Industrial applications demand maximum reliability.
Conveyor Belt Control Systems
Emergency stop switches use NC configuration. They're wired in series.
Any switch activation stops the entire system immediately.
Must handle frequent activation without wear.
Robotic Arm Positioning
Limit switches define movement boundaries. They prevent overtravel damage.
Millisecond response times are critical. Snap-action switches excel here.
Safety Interlocks
Guard door switches prevent machinery operation when guards open.
Multi-contact switches provide redundancy. Both contacts must close.
This meets safety standards like ISO 13849.
Limit Switches
Detect end-of-travel positions. They stop motors before mechanical damage occurs.
Use NC configuration for safety. Power failure stops movement.
Emergency Stop Circuits
E-stop switches are wired in series. Any activation breaks the circuit.
They use positive-opening contacts. Welded contacts still break mechanically.
Harsh Environment Manufacturing
Chemical exposure, extreme temperatures, and contamination are normal.
IP68 rating minimum. Often need higher temperature ratings too.
Stainless steel actuators resist corrosion better than plastic.
Outdoor conditions test switch durability severely.
Garden Lighting Systems
Photocell switches activate lights at dusk. Waterproofing prevents corrosion.
Timer switches need weather protection. Moisture kills electronics.
Irrigation Controls
Valve control switches get buried with pipes. Submersion rating essential.
Flow switches detect water movement. They prevent dry running.
Outdoor Power Tools
Trigger switches on electric trimmers and blowers face rain and mud.
Double insulation required for safety. Waterproof switches prevent shock hazards.
Marine Applications
Salt water is extremely corrosive. Marine-grade switches use special materials.
Bilge pump switches must survive continuous submersion. IP68 with pressure rating.
Weatherproof Enclosures
Even indoor switches need weatherproof enclosures outdoors. IP rating applies to complete assembly.
Cable entries compromise protection. Use proper glands and sealant.
Medical applications have strict requirements.
Diagnostic Devices
Patient contact devices need biocompatible materials. They also need sterilization compatibility.
Some switches must survive autoclave sterilization. This requires special high-temp ratings.
Patient Monitoring Systems
Reliability is critical. Lives depend on proper operation.
Medical-grade switches undergo extensive testing. They meet IEC 60601 standards.
Sterilization-Compatible Applications
Autoclave cycles reach 134°C at high pressure. Few switches survive this.
Chemical sterilization (ethylene oxide, hydrogen peroxide) is less demanding.
Verify compatibility before specifying switches for surgical instruments.
Cleanroom Equipment
Particle generation must be minimal. Smooth surfaces without crevices help.
Switches need frequent cleaning with harsh disinfectants. Material compatibility matters.
Safety isn't optional. These precautions protect you and your equipment.
Electricity can kill. Take these seriously.
Always Disconnect Power Before Wiring
Dead circuits can't shock you. Live ones can.
Even "low voltage" can cause injury under certain conditions. Disconnect everything.
Use Proper Voltage-Rated Components
Every component has voltage limits. Exceed them at your peril.
Check switch ratings against circuit voltage. Include safety margin.
Wire insulation must also be voltage-rated. Standard wire fails at high voltage.
Avoid Overloading Switch Capacity
Overloaded switches fail catastrophically. Contacts weld closed or burn open.
Both conditions create hazards. Welded contacts can't shut off power. Burned contacts spark.
Calculate actual load including startup surges. Stay well below switch ratings.
Proper Fusing and Circuit Protection
Fuses and breakers protect against short circuits and overloads.
They should be sized to protect wiring, not just loads. Wire is the weak link.
Place fuses close to power sources. This protects the entire wire run.
Ground Fault Considerations
GFCI protection is required in wet locations. It detects current leakage to ground.
Waterproof switches reduce GFCI nuisance tripping. But they don't eliminate the need for GFCI.
Test GFCI devices monthly. They prevent electrocution.
Maintaining IP rating requires proper techniques.
Proper Sealant Application Techniques
Clean surfaces before applying sealant. Oil and dirt prevent adhesion.
Apply continuous beads without gaps. Gaps allow water entry.
Use proper cure time. Rushed sealant fails prematurely.
Avoid Compromising IP Rating During Installation
Every hole drilled, every wire added, every modification reduces protection.
If you must modify a sealed switch, reseal properly afterward.
Test waterproofing after modifications. Assumptions cause failures.
Cable Entry Point Sealing
Where cables enter housings, water follows. Seal these points carefully.
Cable glands provide the best seal. They compress around the cable.
Don't use oversized glands. They can't seal properly.
Drainage Considerations
Mount switches so water drains away, not into connections.
Position terminal connections pointing downward when possible.
Condensation happens even in sealed switches. Let it drain out.
Regular Maintenance Inspection Schedule
Seals degrade over time. Inspect them periodically:
Monthly for critical applications
Quarterly for normal use
Annually minimum for all switches
Look for cracks, gaps, and degradation. Replace seals preventively.
Environment affects installation approach.
Mounting Position for Water Drainage
Water runs downhill. Use gravity to your advantage.
Mount switches so actuators point up or sideways, never down.
This prevents water pooling on seals.
Vibration Isolation if Needed
Continuous vibration loosens connections. It also fatigues solder joints.
Use rubber grommets or isolators in high-vibration areas.
Lock washers prevent screw terminals from backing out.
Temperature Cycling Effects
Materials expand and contract with temperature. This stresses seals.
Allow thermal expansion in wire runs. Service loops accommodate this.
Extreme cycling accelerates seal aging. Inspect more frequently.
Condensation Prevention
Warm, moist air entering cold enclosures creates condensation. It forms on contacts.
Vent holes with breathable membranes allow pressure equalization without water entry.
Desiccant packs absorb residual moisture.
Corrosive Atmosphere Protection
Chemical fumes corrode metals even without direct contact.
Conformal coating on connections provides additional protection.
In severe environments, consider sealed relay interfaces. Switch controls relay remotely.
Proper maintenance extends switch life significantly.
Preventive maintenance beats reactive repairs.
Visual Inspection Frequency
Critical systems: Weekly Normal industrial use: Monthly Home appliances: Annually
Look for:
Seal degradation or cracks
Corrosion on terminals
Wire insulation damage
Physical damage to switch body
Signs of overheating (discoloration)
Cleaning Procedures for Waterproof Switches
External cleaning only for sealed switches. Don't open them.
Use mild soap and water. Rinse thoroughly.
Avoid petroleum-based cleaners. They attack rubber seals.
For contact cleaning on accessible switches, use electronics contact cleaner.
Seal Integrity Checks
Gently probe seals with a toothpick. They should be firm, not crumbly.
Shine a light behind translucent seals. Look for cracks.
Perform water spray tests periodically in critical applications.
Contact Cleaning (When Accessible)
Some industrial switches allow contact access. Most mini switches don't.
If accessible, use electrical contact cleaner spray.
Never use sandpaper or abrasives. They damage contact plating.
Replacement Indicators
Replace switches showing:
Inconsistent operation
Excessive heat generation
Corrosion on terminals
Cracked or degraded seals
Reduced snap-action feel
Any sign of internal water entry
Don't try to repair failed switches. Replacement is safer and more reliable.
Recognize these issues quickly.
Loose Connections: Diagnosis and Repair
Symptoms: Intermittent operation, sparking, heat at terminals
Diagnosis: Wiggle wires while circuit operates. Observe for changes.
Repair: Power down. Tighten all connections. Check for damaged terminals.
Prevention: Use lock washers. Apply proper torque. Check periodically.
Corrosion at Terminals: Prevention and Treatment
Symptoms: High resistance, voltage drop, green deposits
Prevention: Proper sealing, dielectric grease on connections
Treatment: Clean with wire brush or sandpaper. Apply corrosion inhibitor.
If corrosion is severe, replace the switch. Internal damage likely occurred.
Water Ingress: Identification and Remediation
Symptoms: Erratic behavior in humid conditions, visible moisture
Identification: Corrosion, water droplets, degraded seals
Remediation: Dry completely. Identify entry point. Reseal properly.
Test before returning to service. One water entry indicates poor sealing.
Mechanical Failure: When to Replace
Symptoms: No snap-action, switch stuck, broken actuator
These indicate internal mechanical damage. Replacement is the only option.
Don't attempt repairs. You'll compromise waterproofing and safety.
Intermittent Faults: Systematic Troubleshooting
Intermittent problems are frustrating. Systematic approach helps.
Reproduce the fault condition
Measure voltages during failure
Check connections while wiggling wires
Monitor temperature
Verify proper switch selection for load
Document when failures occur. Patterns reveal causes.
Not every problem deserves repair time.
Cost-Benefit Analysis
Mini switches are inexpensive. Labor isn't.
If diagnosis takes more than 15 minutes, replacement might be cheaper.
For custom installations, repair makes sense. For standard applications, replace.
Safety Considerations
Safety-critical switches should never be repaired. Replace them.
This includes:
Emergency stop switches
Safety interlock switches
Medical equipment switches
Any switch protecting life
The risk isn't worth the few dollars saved.
Performance Degradation Signs
Gradually worsening performance indicates wear:
Weaker snap-action
Higher operating force required
Inconsistent activation point
Increased contact resistance
Replace before complete failure occurs. Planned replacement beats emergency repairs.
Warranty Considerations
Check if the switch is under warranty. Yutai Switch provides warranty coverage.
Unauthorized repairs void warranties. Contact the manufacturer first.
Document the failure mode. This helps improve future products.
Not all switches are created equal. Here's why Yutai Switch stands out.
Quality starts with proper certifications and processes.
ISO9001, IATF16949, ISO14001 Certifications
These certifications aren't just paperwork. They represent systematic quality management.
ISO9001 ensures consistent manufacturing processes. IATF16949 adds automotive-specific requirements.
ISO14001 demonstrates environmental responsibility in manufacturing.
We maintain these certifications through regular audits and continuous improvement.
Quality Control Processes
Every Yutai Switch undergoes multiple inspections:
Incoming material inspection
In-process quality checks
Final functional testing
Random sample life testing
Defect rates remain below industry standards. We track and address every quality issue.
Testing Procedures
Our switches pass rigorous testing:
Electrical life testing under rated loads
Mechanical life testing (millions of operations)
Environmental testing (temperature, humidity, salt spray)
IP rating verification through water immersion
Vibration and shock testing
Test results are available for review. We stand behind our specifications.
Compliance with International Standards
Yutai Switch products carry global certifications:
UL: North American safety standard
CE: European conformity marking
ENEC: European electrical certification
CB: International safety scheme
This allows use in equipment sold globally. You don't need different switches for different markets.
We offer solutions for diverse applications.
Variety of Terminal Configurations Available
SPDT, SPST NO, SPST NC, DPDT—we manufacture them all.
Screw terminals, solder terminals, quick-connect terminals.
PCB mount and wire lead versions.
Your application determines the configuration. We have options.
Custom Actuator Options
Standard actuators don't always fit. We customize:
Lever lengths and shapes
Roller sizes and materials
Button profiles and heights
Pin plunger extensions
Send us your 3D model. We'll recommend the best actuator.
IP Rating Options
From IP65 to IP68, we manufacture multiple protection levels.
Don't pay for IP68 if IP65 suffices. We help you select appropriately.
Operating Force Variations
Light touch for user interfaces. Heavy force for industrial applications.
We adjust spring tension to match your requirements.
Industry-Specific Solutions
Our engineering team understands industry-specific needs:
Appliance switches meeting UL standards
Automotive switches with AEC-Q200 qualification
Medical switches compatible with sterilization
Industrial switches for harsh environments
We support you beyond just selling switches.
Expert Guidance on Product Selection
Not sure which switch suits your application? We help.
Provide your specifications:
Voltage and current
Environmental conditions
Mechanical requirements
Quantity and timeline
Our team recommends optimal solutions.
3D Drawings and CAD Models Available
Mechanical integration is critical. We provide:
STEP files for 3D CAD systems
2D dimensional drawings
PCB footprints for board-mount switches
This speeds your design process significantly.
Sample Programs for Testing
Evaluate before committing to production. We offer sample programs.
Test our switches in your actual application. Verify fit and function.
Samples ship quickly. Start testing within days.
Quick Quote Response
Time matters in product development. We respond to quote requests within 24 hours.
Volume pricing is competitive. We work with projects of all sizes.
After-Sales Support
Questions after purchase? We're here to help.
Technical support assists with:
Wiring guidance
Troubleshooting issues
Specification clarification
Replacement parts
Your success is our success. We support you throughout product life.
Wiring a mini waterproof micro switch correctly ensures reliable operation for years.We've covered everything from understanding terminal configurations to proper waterproofing techniques.Remember the key points:Identify your switch specifications before starting. Match voltage, current, and IP ratings to your application.Prepare properly. Gather the right tools and materials. Never rush the process.Follow correct wiring procedures. Connect power to COM. Choose NO or NC based on your needs.Apply thorough waterproofing. Heat shrink tubing and sealant maintain IP protection.Test everything before final installation. Continuity testing catches errors early.Safety comes first. Always disconnect power before wiring. Use appropriate personal protection.
Choose quality components. Yutai Switch provides certified, reliable switches for demanding applications.Our ISO-certified manufacturing ensures consistent quality. Global certifications allow worldwide use.Need help selecting the right switch? Our technical team provides expert guidance.Request samples to test in your application. Verify fit and function before production.Visit Yutai Switch products page to browse our complete range.Have questions? Contact our technical support team. We're here to ensure your success.Start your next project with confidence. Proper wiring techniques and quality switches create reliable, long-lasting installations.
