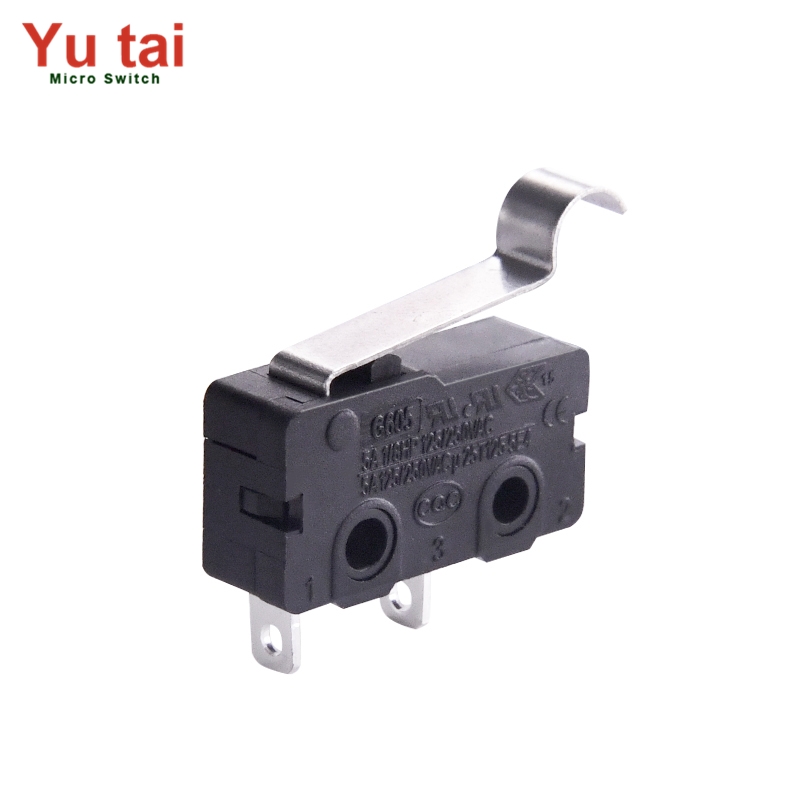

Egg Steamer Switch with Arc Lever

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • G610-250P93AU

  • Yutai

Product Parameters
StandardSpecification
ENEC/CQC0.1A  125/250VAC 48VDC
UL0.1A  125/250VAC  48VDC
ENEC/CQC5(3)A    125/250VAC       5A  125/250VAC  30VDC
UL5A         125/250VAC  30VDC  1/8HP
ENEC/CQC10(2)A   125/250VAC
UL10.1A  125/250VAC  1/4HP    10A:30VDC
ENEC/CQC12(6)A   125/250VAC
UL12A   125/250VAC
ENEC/CQC10(2)A   125/250VAC
UL10.1A  125/250VAC  1/4HP    10A:30VDC
Operating Temperature-40℃∽+85℃
Mechanical Life1000000 cycles
Electrical Life50000 cycles

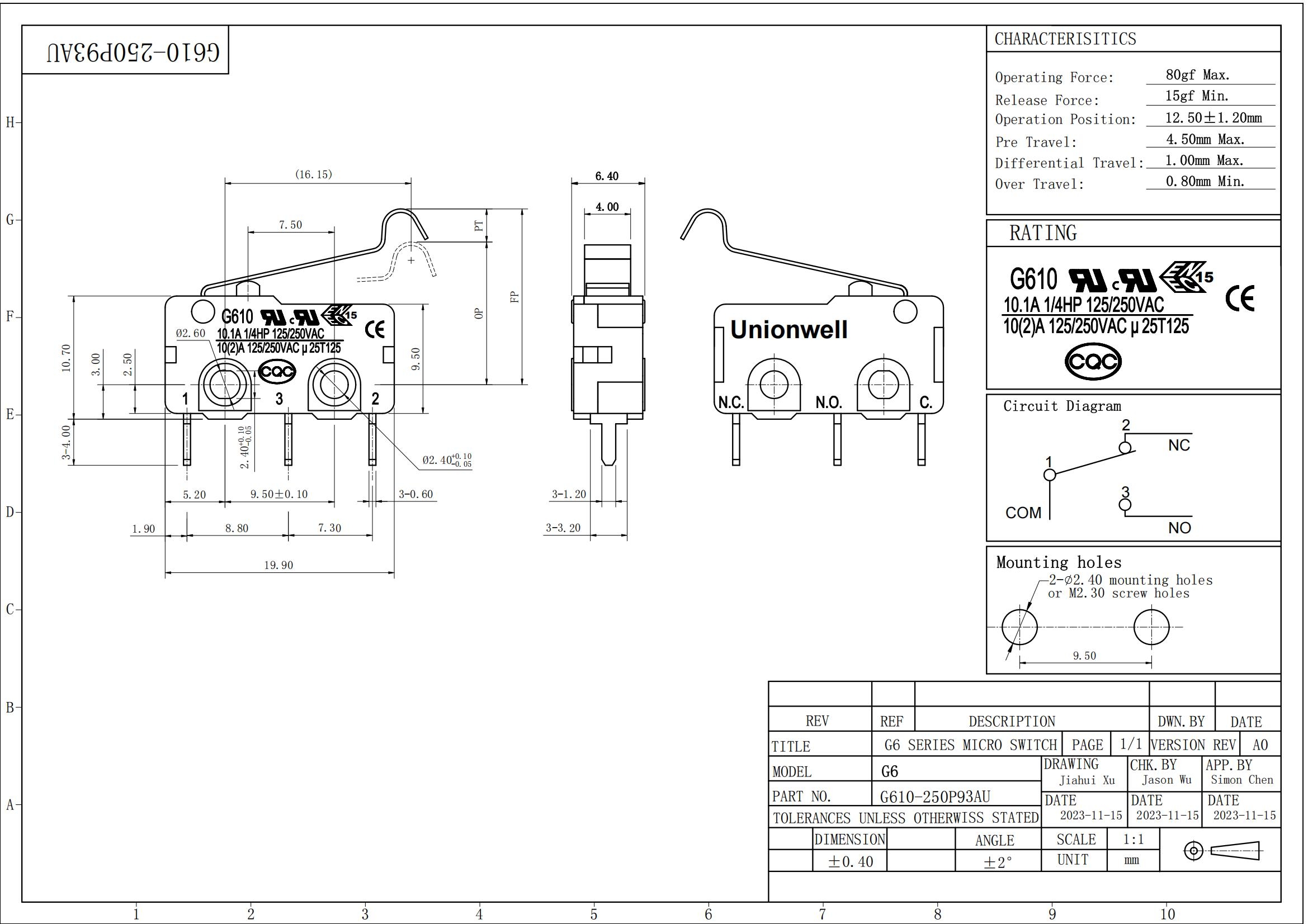

Product Drawing

G6 Drawing
