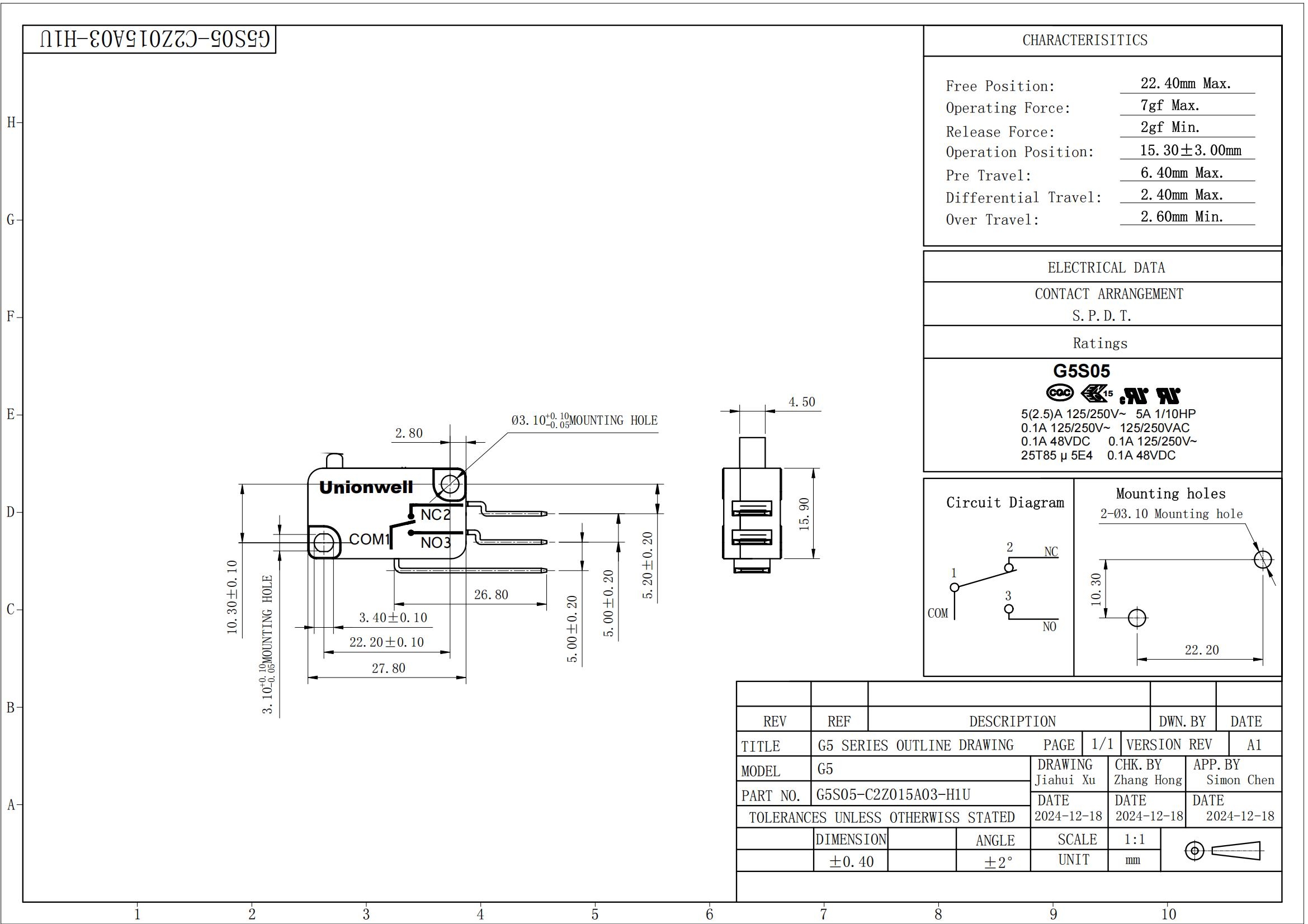

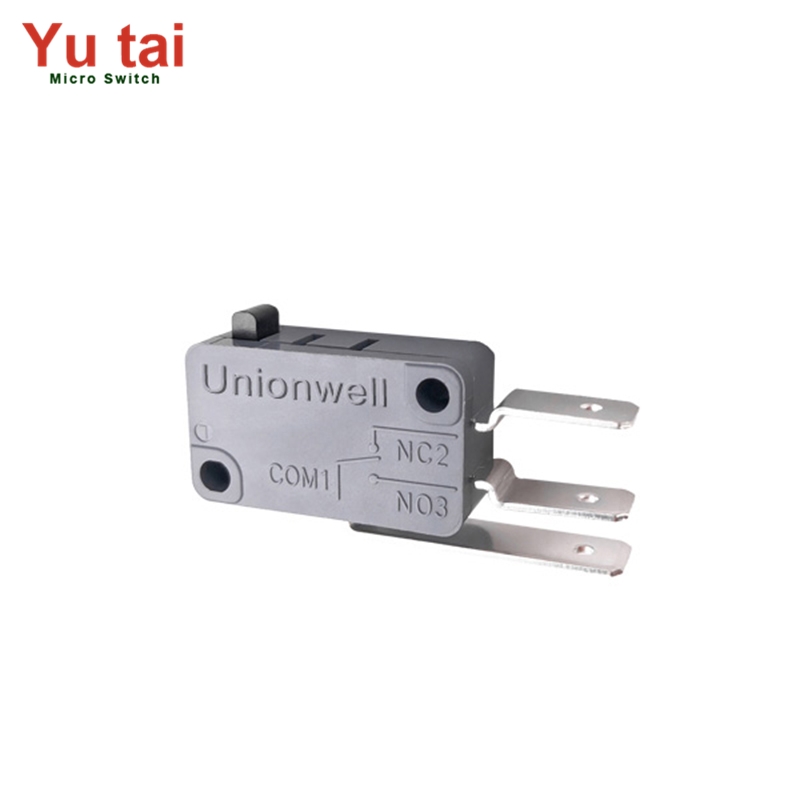

G5S05-C2Z015A03-H1U
Yutai
The application of G5 series micro switch in dishwasher products: mainly for overflow detection: installed at the bottom of the dishwasher, when water accumulates at the bottom, the foam in the overflow valve floats up and presses against the micro switch, detecting water leakage at the bottom of the dishwasher. The signal is transmitted back to the main control board, and the fault code is displayed on the display board to remind the user to check and repair.
| Operating Speed | 0.1 mm ~ 1 m/s (depending on actuator type) | |
| Operating Frequency | Mechanical 60 times/min | |
| Operating Frequency | Electrical 15 times/min | |
| Insulation Resistance | ≥ 100 MΩ (500VDC) | |
| Contact Resistance | ≤ 100 mΩ | |
| Dielectric Strength | Between terminals of opposite polarity | AC 1000V, 50/60Hz, 1 min |
| Between live metal parts & accessible dead metal parts (case / terminals) | AC 1500V, 50/60Hz, 1 min | |
| Vibration Resistance | 10 ~ 55 Hz, 1.5 mm double amplitude | |
| Shock Resistance | Destruction ：(operating force > 1.0N)1000 m/s² (approx. 100g) max. (operating force ≤ 1.0N)400 m/s² (approx. 40g) max. Malfunction： (operating force > 1.0N)200 m/s² (approx. 20g) max. (operating force ≤ 1.0N)100 m/s² (approx. 10g) max. | |
| Endurance (Life) | Mechanical ≥ 10,000,000 cycles or 1,000,000 cycles | |
| Endurance (Life) | Electrical ≥ 50,000 cycles or 100,000 cycles | |
| Weight | Approx. 6.2 g (no actuator lever) | |
