1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.
2: High durability, high reliability.
3: Equipped with global safety certifications.
4: Complete range of terminal connections.
5: Available in various temperature grades: 25T85, 25T125, 25T150.
6: Fitted with various types of operating handles.
7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.
Availability: | |
---|---|
Quantity: | |

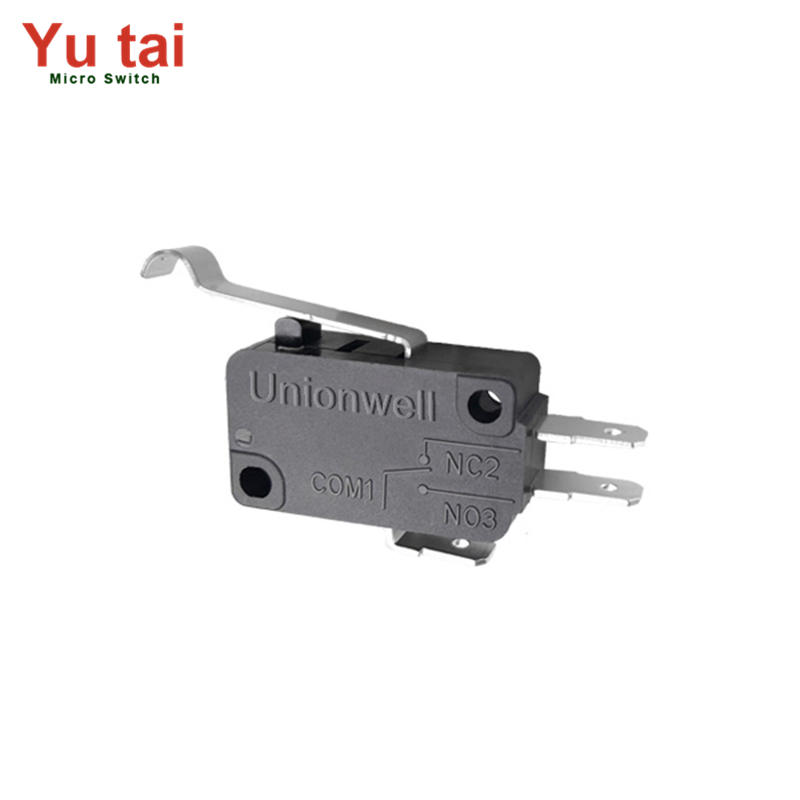

The G5 Series Basic Micro Switch is a high-performance electronic component designed to meet the diverse needs of various industries. With its unique design and reliable performance, it has become a preferred choice for many manufacturers and users. This micro switch is crafted with precision to ensure stable operation in different working environments, catering to the demands of household appliances, electronic equipment, automation devices, medical instruments, automotive electronics, power tools, and instrumentation fields.
The G5 Series Basic Micro Switch features a compact structure with a tiny contact gap. This design allows for fast action, high sensitivity, and small travel, which are essential for applications where precise and quick response is required. The compact size also enables easy integration into various devices with limited space.
One of the key strengths of the G5 Series is its high durability and high reliability. It is built to withstand repeated use, with a mechanical life of 100000 cycles and an electrical life of 50000 cycles. These figures indicate that the switch can maintain stable performance over an extended period, reducing the need for frequent replacements and ensuring the smooth operation of the equipment it is installed in.
Equipped with global safety certifications, the G5 Series Basic Micro Switch complies with international standards, making it suitable for use in different regions around the world. It offers a complete range of terminal connections, providing flexibility for various installation requirements. Additionally, the switch is available in various temperature grades, including 25T85, 25T125, and 25T150, allowing it to function properly in different temperature environments. A variety of operating handles are also available, further enhancing its adaptability to different application scenarios.
Model | Standard | Specification |
---|---|---|
G5S05 | ENEC/CQC | 0.1A 125/250VAC 48VDC 5(2.5)A 125/250VAC |
G5S05 | UL | 0.1A 125/250VAC 48VDC 5A 125/250VAC 48VDC 1/10HP |
G5T08 | ENEC/CQC | 8(10)A 250VAC |
G5T08 | UL | 10.1A 250VAC 1/2HP |
G5T10 | ENEC/CQC | 10(3)A 125/250VAC 10(4) 250VAC |
G5T10 | UL | 10A 125/250VAC 1/2HP 11A 125/250VAC 1/3HP |
G5T16 | ENEV/CQC | 16(4)A 250VAC |
G5T16 | UL | 16A 125/250VAC 1/2HP |
GTT22 | ENEV/CQC | 22(8)A 250VAC |
G5T22 | UL | 22A 125/250VAC 1HP |
G5T26 | ENEV/CQC | 26(10)A 250VAC |
Operating Temperature | -25℃∽+85℃ -25℃∽+125℃ -25℃∽+150℃ | |
Mechanical Life | 100000 cycles | |
Electrical Life | 50000 cycles |
The G5 Series Basic Micro Switch finds extensive application in a wide range of industries. In household appliances, it is used in devices such as paper shredders, dishwashers, ice cream machines, ovens, printers, treadmills, toys, commercial ice makers, water dispensers, and electric faucets. These applications rely on the switch's quick response and reliable performance to ensure the proper functioning of the appliances.
In the automotive industry, the switch is utilized in car gear shift hand balls and e-wheelchairs, where durability and precision are crucial for safe and efficient operation. Medical instruments also benefit from the G5 Series, as its reliability ensures accurate and consistent performance in critical healthcare equipment.
Model | Standard | Specification |
G5S05 | ENEC/CQC | 0.1A 125/250VAC 48VDC 5(2.5)A 125/250VAC |
G5S05 | UL | 0.1A 125/250VAC 48VDC 5A 125/250VAC 48VDC 1/10HP |
G5T08 | ENEC/CQC | 8(10)A 250VAC |
G5T08 | UL | 10.1A 250VAC 1/2HP |
G5T10 | ENEC/CQC | 10(3)A 125/250VAC 10(4) 250VAC |
G5T10 | UL | 10A 125/250VAC 1/2HP 11A 125/250VAC 1/3HP |
G5T16 | ENEV/CQC | 16(4)A 250VAC |
G5T16 | UL | 16A 125/250VAC 1/2HP |
GTT22 | ENEV/CQC | 22(8)A 250VAC |
G5T22 | UL | 22A 125/250VAC 1HP |
G5T26 | ENEV/CQC | 26(10)A 250VAC |
Operating Temperature | -25℃∽+85℃ -25℃∽+125℃ -25℃∽+150℃ | |
Mechanical Life | 100000 cycles | |
Electrical Life | 50000 cycles |
