1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.
2: High durability, high reliability.
3: Equipped with global safety certifications.
4: Complete range of terminal connections.
5: Available in various temperature grades: 25T85, 25T125, 25T150.
6: Fitted with various types of operating handles.
7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.

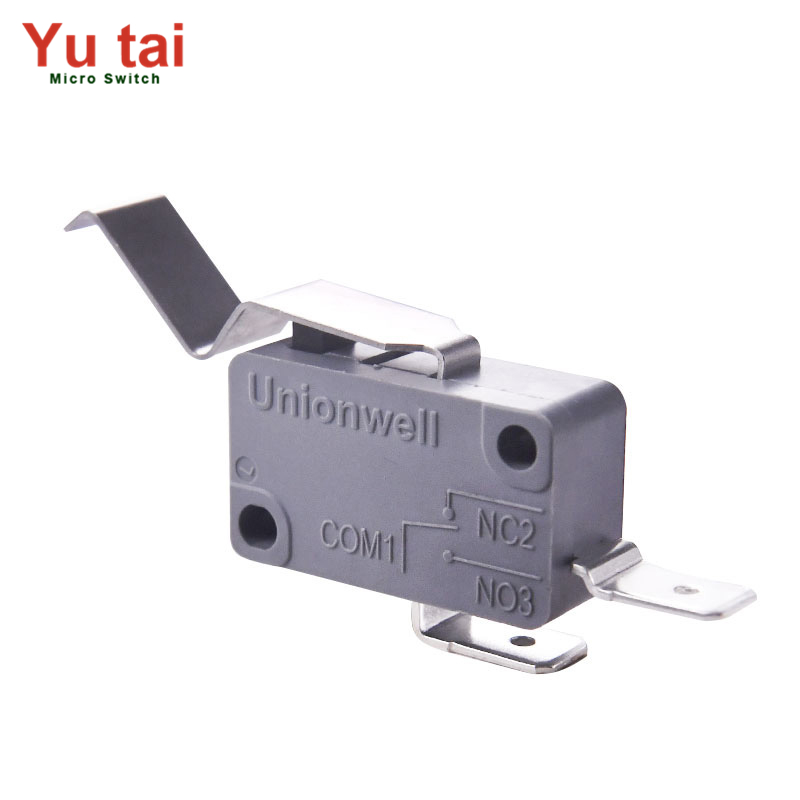

Our waterproof micro switch has good waterproof and dustproof performance: reaching IP67 protection level, it can effectively prevent dust from entering and short-term immersion in water.
Compact and sensitive structure: compact structure, small action stroke, can respond quickly to small external forces, and high operating precision.
Complete safety certification: passed ENEC, UL and other safety certifications, safe and reliable to use.
Long life and high reliability: electrical life can reach 100,000 times, mechanical life can reach 1 million times, stable performance, large current carrying capacity: under ENEC/UL certification, the current reaches 10A, which can meet the power requirements of more circuits.
Diverse operating handles: There are a variety of handles to choose from to meet different installation and operation requirements.
Wide temperature range: the storage temperature is -40°C~+85°C, and it can be used in a variety of ambient temperatures.
Model | Standard | Specification |
G5S05 | ENEC/CQC | 0.1A 125/250VAC 48VDC 5(2.5)A 125/250VAC |
G5S05 | UL | 0.1A 125/250VAC 48VDC 5A 125/250VAC 48VDC 1/10HP |
G5T08 | ENEC/CQC | 8(10)A 250VAC |
G5T08 | UL | 10.1A 250VAC 1/2HP |
G5T10 | ENEC/CQC | 10(3)A 125/250VAC 10(4) 250VAC |
G5T10 | UL | 10A 125/250VAC 1/2HP 11A 125/250VAC 1/3HP |
G5T16 | ENEV/CQC | 16(4)A 250VAC |
G5T16 | UL | 16A 125/250VAC 1/2HP |
GTT22 | ENEV/CQC | 22(8)A 250VAC |
G5T22 | UL | 22A 125/250VAC 1HP |
G5T26 | ENEV/CQC | 26(10)A 250VAC |
Operating Temperature | -25℃∽+85℃ -25℃∽+125℃ -25℃∽+150℃ | |
Mechanical Life | 100000 cycles | |
Electrical Life | 50000 cycles |
