1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.
2: High durability, high reliability.
3: Equipped with global safety certifications.
4: Complete range of terminal connections.
5: Available in various temperature grades: 25T85, 25T125, 25T150.
6: Fitted with various types of operating handles.
7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.
| Quantity: | |
|---|---|

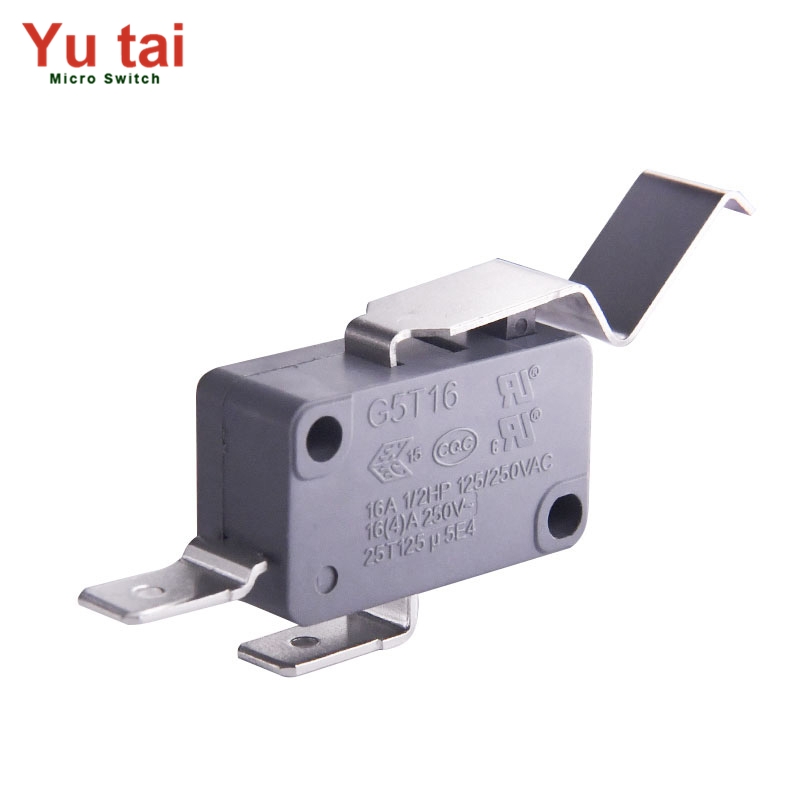

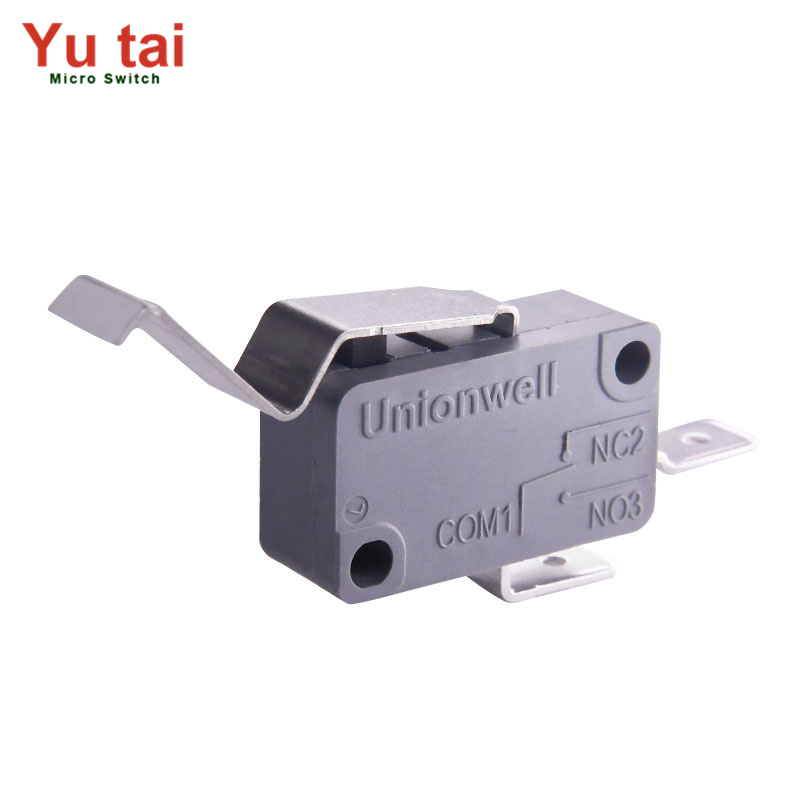

The G5 Series Basic Micro Switch is a compact, high-sensitivity switching solution tailored to bridge the gap between precision and durability. Its design focuses on minimizing contact gap while maximizing response speed, ensuring quick action even in high-frequency operation scenarios. Whether integrated into household devices or industrial machinery, this switch maintains stable performance across varying conditions, thanks to its meticulous manufacturing process and adherence to strict quality controls.
Yutai Electronics, with years of expertise in switch technology, has optimized the G5 Series to balance size and functionality. Its small form factor allows seamless integration into space-constrained environments, while its rugged build ensures it withstands the rigors of long-term use. From ice makers to medical equipment, the G5 Series proves its versatility by adapting to diverse operational requirements, solidifying its position as a trusted component in modern electronics.
Model | Standard | Specification |
G5S05 | ENEC/CQC | 0.1A 125/250VAC; 48VDC; 5(2.5)A 125/250VAC |
G5S05 | UL | 0.1A 125/250VAC; 48VDC; 5A 125/250VAC; 48VDC; 1/10HP |
G5T08 | ENEC/CQC | 8(10)A 250VAC |
G5T08 | UL | 10.1A 250VAC; 1/2HP |
G5T10 | ENEC/CQC | 10(3)A 125/250VAC; 10(4) 250VAC |
G5T10 | UL | 10A 125/250VAC; 1/2HP; 11A 125/250VAC; 1/3HP |
G5T16 | ENEC/CQC | 16(4)A 250VAC |
G5T16 | UL | 16A 125/250VAC; 1/2HP |
G5T22 | ENEC/CQC | 22(8)A 250VAC |
G5T22 | UL | 22A 125/250VAC; 1HP |
G5T26 | ENEC/CQC | 26(10)A 250VAC |
Operating Temperature | — | -25℃∽+85℃; -25℃∽+125℃; -25℃∽+150℃ |
Mechanical Life | — | 100000 cycles |
Electrical Life | — | 50000 cycles |
The G5 Series boasts a compact structure with an ultra-small contact gap, enabling fast action and minimal travel. This design ensures high sensitivity, making it ideal for applications where precise and rapid switching is critical — such as in automation equipment or medical devices, where even minor delays can impact performance.
Built to withstand rigorous use, the G5 Series offers 100,000 mechanical cycles and 50,000 electrical cycles of reliable operation. This longevity reduces maintenance needs and ensures consistent performance in high-frequency use scenarios, from industrial machinery to daily-use appliances.
Compliance with international standards is a cornerstone of the G5 Series. It holds certifications such as ENEC and CQC, as well as UL approvals, ensuring it meets safety and performance requirements across global markets. This makes it a versatile choice for manufacturers operating in multiple regions.
The switch is available in three temperature grades: 25T85 (-25℃∽+85℃), 25T125 (-25℃∽+125℃), and 25T150 (-25℃∽+150℃). This range allows it to function reliably in extreme environments, from cold-storage equipment like ice makers to high-heat settings such as industrial ovens.
To accommodate varied installation needs, the G5 Series offers a complete range of terminal connections and multiple types of operating handles. This flexibility simplifies integration into different systems, whether for household electronics requiring specific terminal configurations or industrial setups needing custom handle designs.
The G5 Series Basic Micro Switch finds extensive use across a broad spectrum of industries, thanks to its adaptability and performance:
· Household Appliances: Integral to ice makers, dishwashers, and ovens, where its fast action ensures efficient operation and user safety.
· Electronic Equipment: Enhances the functionality of printers and smart trash bins, providing reliable switching in compact device designs.
· Automotive Electronics: Used in car gear shift systems, where durability and precision are vital for smooth vehicle operation.
· Medical Devices: Trusted in equipment requiring high sensitivity and reliability, ensuring accurate performance in critical healthcare settings.
· Industrial Machinery: Applied in automation systems and power tools, withstanding heavy use while maintaining consistent switching.
· Instrumentation: Supports precise measurements in scientific and industrial instruments, where minimal travel and high sensitivity prevent data inaccuracies.
