1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.
2: High durability, high reliability.
3: Equipped with global safety certifications.
4: Complete range of terminal connections.
5: Available in various temperature grades: 25T85, 25T125, 25T150.
6: Fitted with various types of operating handles.
7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.

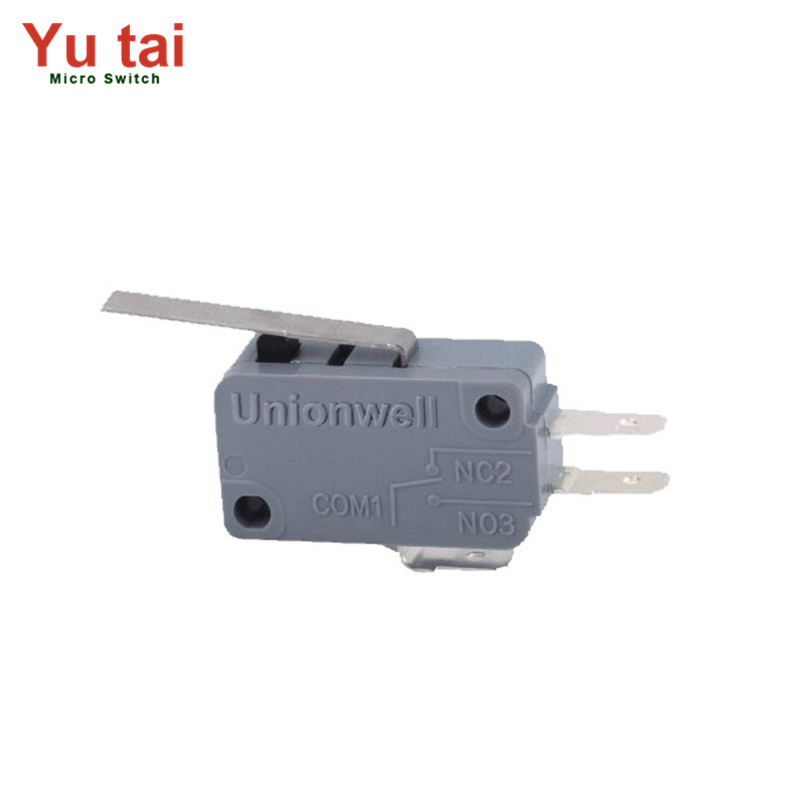

Our G5 series micro switch is a sensitive switch that triggers the circuit on and off through tiny mechanical displacement. It is widely used in automation control, home appliances, industrial equipment and other fields. It has a simple and compact structure and standardized interface. Most of them use pins or terminals for connection. It is compatible with PCB board welding or wire wiring. It usually requires very small mechanical force (such as 0.5N~5N) to trigger, which is suitable for precision control. The contact switching time is short (milliseconds), which is suitable for high-frequency operation scenarios. It has clear "click" tactile feedback to ensure that the operator can perceive the switch status. The trigger switch has a direct button press trigger mode, and an external lever is used to extend the force arm and reduce the operating force. It is suitable for high temperature, humid or vibration environments.
Operating Speed | 0.1 mm ~ 1 m/s (depending on actuator type) | |
Operating Frequency | Mechanical | 60 times/min |
Electrical | 15 times/min | |
Insulation Resistance | ≥ 100 MΩ (500VDC) | |
Contact Resistance | ≤ 100 mΩ（Initial value） | |
Dielectric Strength Dielectric Strength | Between terminals of opposite polarity | AC 1000V, 50/60Hz, 1 min |
Between live metal parts & accessible dead metal parts (case / terminals) | AC 1500V, 50/60Hz, 1 min | |
Vibration Resistance | 10 ~ 55 Hz, 1.5 mm double amplitude | |
Shock Resistance | Destruction ：(operating force > 1.0N)1000 m/s² (approx. 100g) max. (operating force ≤ 1.0N)400 m/s² (approx. 40g) max. Malfunction： (operating force > 1.0N)200 m/s² (approx. 20g) max. (operating force ≤ 1.0N)100 m/s² (approx. 10g) max. | |
Endurance (Life) | Mechanical≥ 10,000,000 cycles or 1,000,000 cycles | |
Electrical≥ 50,000 cycles or 100,000 cycles | ||
Weight | Approx. 6.2 g (no actuator lever) | |
