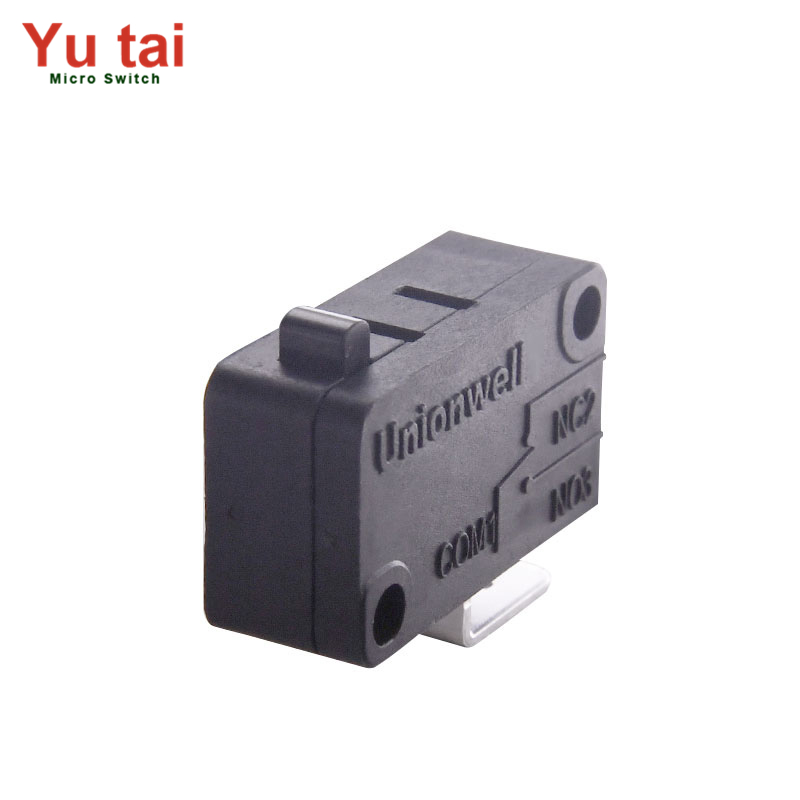

G5 Series Basic Micro Switch G5 in Safe

1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.

2: High durability, high reliability.

3: Equipped with global safety certifications.

4: Complete range of terminal connections.

5: Available in various temperature grades: 25T85, 25T125, 25T150.

6: Fitted with various types of operating handles.

7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.

Our G5 series micro switch contact types include Normally Open (NO): Open when not triggered, closed after triggering. Normally Closed (NC): Closed when not triggered, open after triggering. Double contact (SPDT): Contains both NO and NC, and can switch two circuits. Compact structure, with small contact gap, fast action, high sensitivity and small action stroke, high life, high precision and small action stroke. Wide range of application scenarios such as: Household appliances: microwave door switch, rice cooker limit switch, air conditioning control panel.

Industrial equipment: machine tool limit protection, automation sensor, safety door lock.

Automotive electronics: brake light switch, electric window anti-pinch control.

Security system: door magnetic alarm, safe trigger device。
