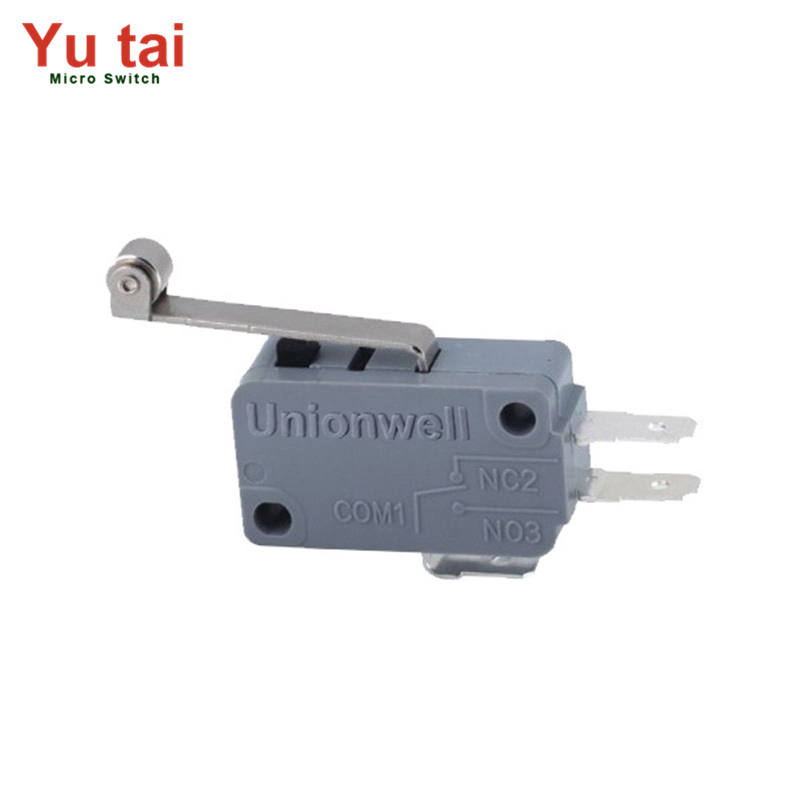

G5 Series Basic Micro Switch G5 in Smart Home Devices

1: Compact structure with tiny contact gap. Fast action, high sensitivity, and small travel characteristics.

2: High durability, high reliability.

3: Equipped with global safety certifications.

4: Complete range of terminal connections.

5: Available in various temperature grades: 25T85, 25T125, 25T150.

6: Fitted with various types of operating handles.

7: Widely used in household appliances, electronic equipment, automation equipment, medical devices, automotive electronics, power tools, and instrumentation fields.

Our waterproof micro switch adopts waterproof and dustproof design, and can be used in places exposed to water or dust. It has compact structure, small contact gap, fast action, high sensitivity and small action stroke, long life, high precision and small action stroke, and is equipped with various operating handles. We have complete certifications: UL, ENEC, CQC, and have environmental protection and explosion-proof certifications, and have ISO9001 system. It is widely used in automobiles, agricultural machinery, large household appliances, office equipment, etc.
